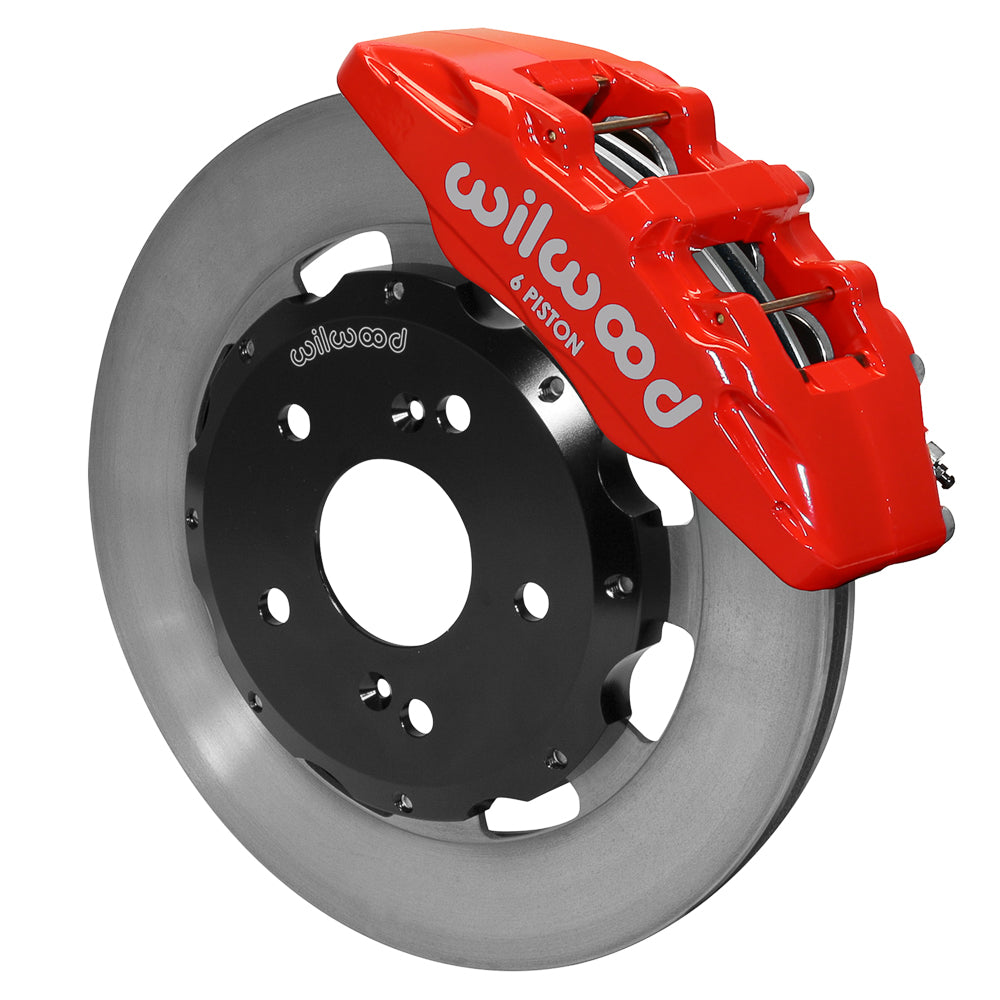

Wilwood Front Plain-Rotor Brake Package, Red Six-Piston Calipers, Acura RSX / Honda Element / Civic

Wilwood configures this front Dynapro 6A kit around 12.19 × 0.81-inch rotors for Acura RSX / Honda Element / Civic (2002–2011). The selected red calipers use 6 service pistons each; matching the factory or specified conversion hardware is essential to the complete installation. Camarillo, California is home to Wilwood Engineering, founded in 1977 by Bill Wood. The company designs and manufactures disc-brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must match the complete braking system.

Technical Details

• Manufacturer part number: 140-17519-R; supplied as an axle kit.
• Rotor/hat mounting-hole pattern: 5 x 4.5 in; 5 x 114.3 mm; cataloged hole clearances 0.500 in; 12.70 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Service calipers: Dynapro 6; 6 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.
• Wheel envelope: 15-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Rotor hats: Aluminum big brake hat - short offset; Black E-Coat; hat offset 0.730 inches. Hat offset is distinct from axle offset.
• Hydraulic lines: Hydraulic flexlines and fittings are not included; select compatible lines for the complete installation.
• Rotor specification: Material: Iron; Type: Ultralite HP 32; Style: Plain Face; Surface Finish: Plain.
• Brake rotor size: 12.19-inch outside diameter × 0.81-inch thickness; vented friction section.
• Supplied friction pads: BP-10 compound; match operating conditions to the intended use.
• Hydraulic sizing: cataloged bore sizes 1.62, 1.12, 1.12 inches; piston area 4.04 square inches; inlet 1/8-27 NPT.

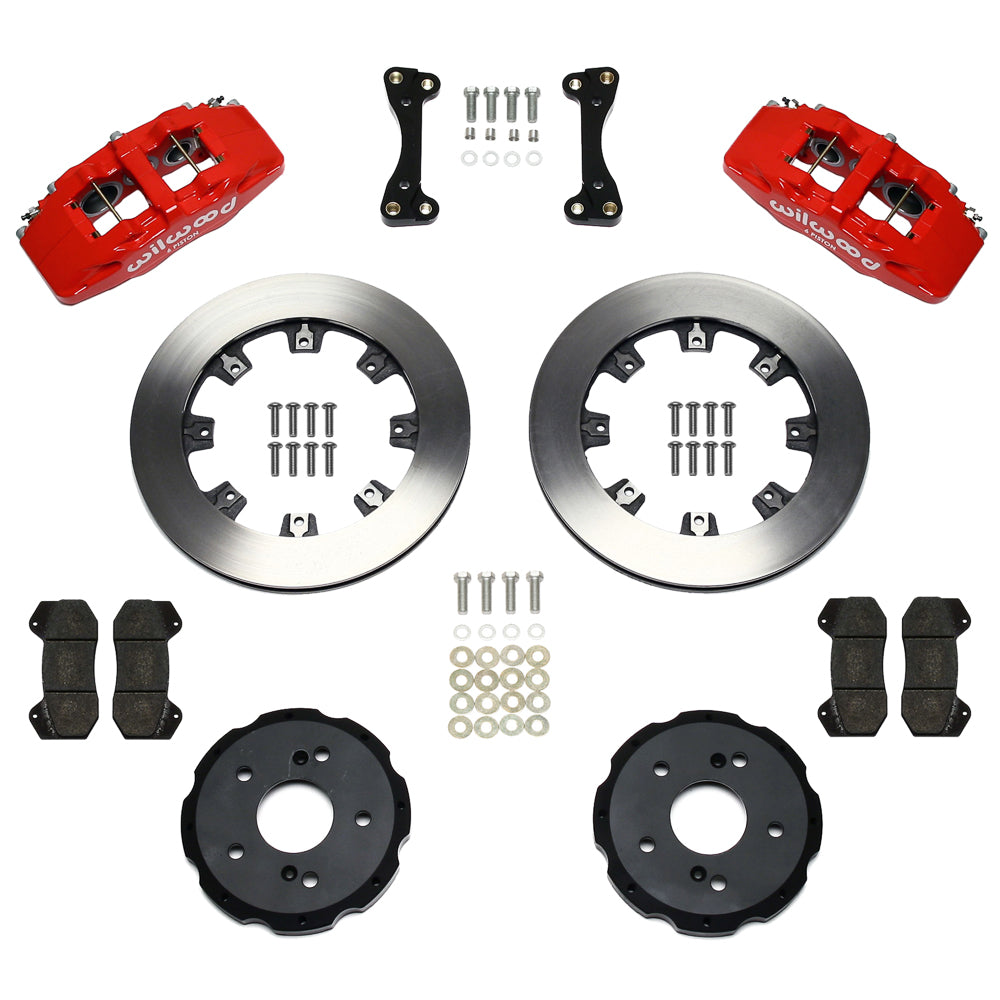

• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.

Fitment & Compatibility

The table below identifies Acura RSX, Honda Element and the specified Civic configurations. Match the exact five-lug hub and brake option to DS1559; a four-lug car cannot be converted merely by fitting these rotor hats. The aluminum hat mounts on the existing hub, and hydraulic hoses must be purchased separately. A nominal 15-inch wheel remains subject to the complete clearance drawing.

PMB Performance brings more than 20 years of parts experience to fitment questions. Send your VIN and details of the installed brakes so we can help check the application.

Review Installation instructions for the complete installation and clearance requirements.
