Wilwood Front Drilled 12.19-Inch Rotor & Black Caliper Kit, Acura RSX / Honda Element / Civic

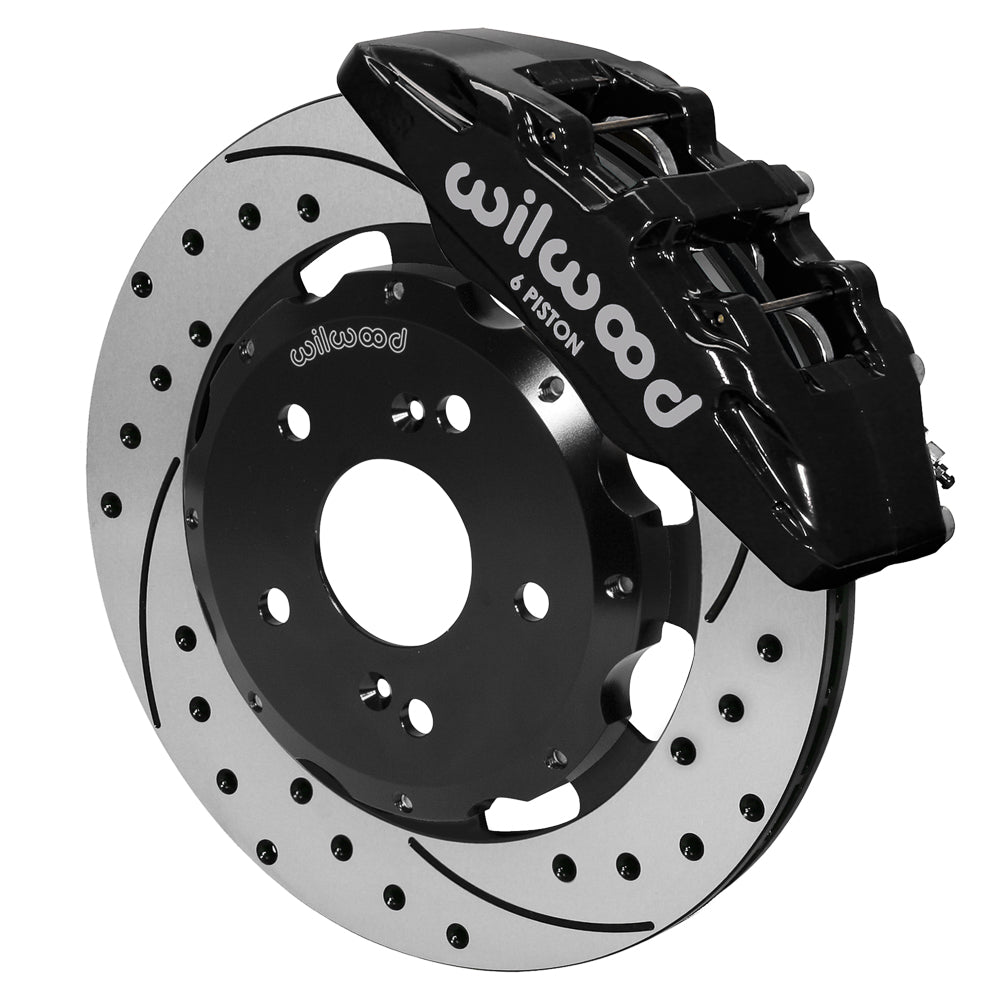

Convert the documented Acura RSX / Honda Element / Civic (2002–2011) front brake arrangement with Wilwood Dynapro 6A calipers and srp drilled & slotted rotors. This selection has black calipers, 6 pistons per service caliper and 12.19-inch rotor diameter, with fit determined by the installed hardware. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc-brake components and systems. Bill Wood founded the company in 1977. Motorsport, specialized applications and street-performance vehicles use its range of calipers, brake rotors, master cylinders, valves, fittings and brake lines, with component selection matched to the finished brake system.

Technical Details

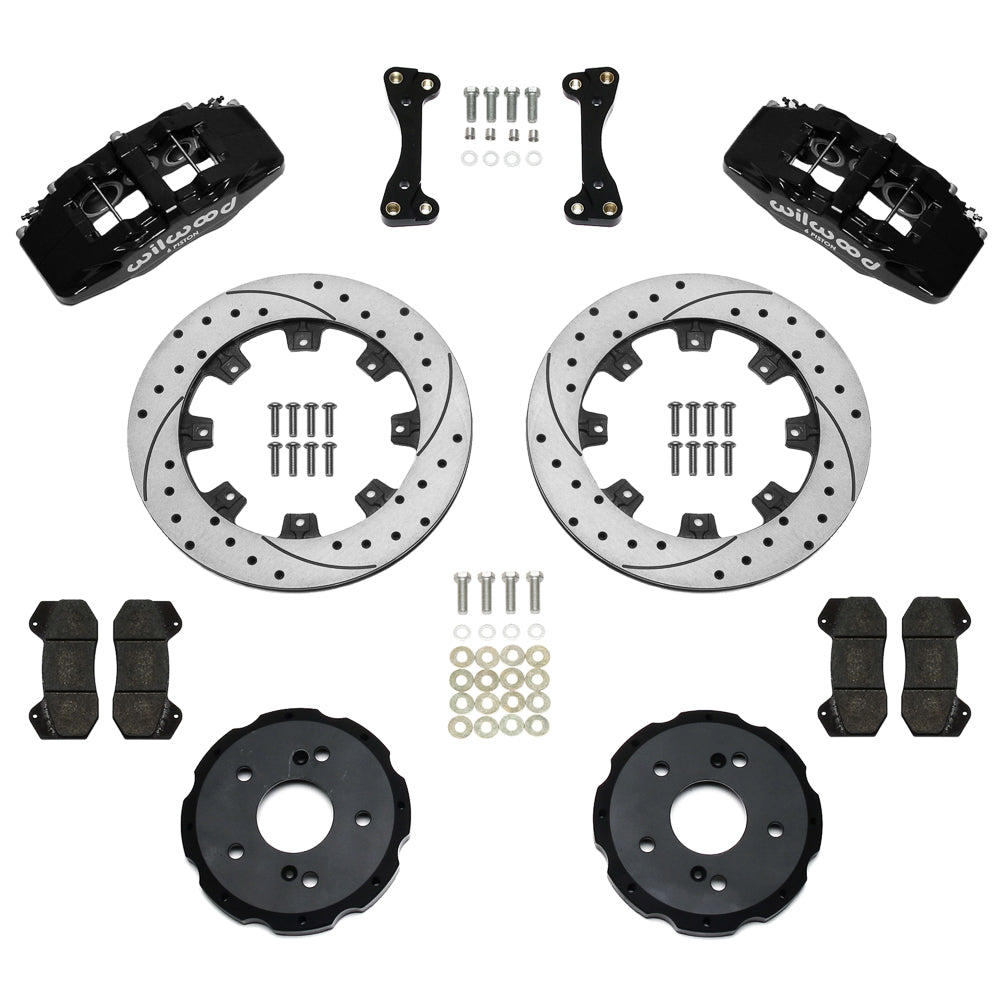

• Manufacturer part number: 140-17519-D; supplied as an axle kit.
• Wheel envelope: 15-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Brake rotor size: 12.19-inch outside diameter × 0.81-inch thickness; vented friction section.
• Rotor/hat mounting-hole pattern: 5 x 4.5 in; 5 x 114.3 mm; cataloged hole clearances 0.500 in; 12.70 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Hydraulic lines: Hydraulic flexlines and fittings are not included; select compatible lines for the complete installation.
• Service calipers: Dynapro 6; 6 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.
• Rotor hats: Aluminum big brake hat - short offset; Black E-Coat; hat offset 0.730 inches. Hat offset is distinct from axle offset.
• Supplied friction pads: BP-10 compound; match operating conditions to the intended use.
• Hydraulic sizing: cataloged bore sizes 1.62, 1.12, 1.12 inches; piston area 4.04 square inches; inlet 1/8-27 NPT.
• Rotor specification: Material: Iron; Type: SRP Drilled Rotor; Style: SRP Drilled & Slotted; Surface Finish: Black Electro Coat.

Fitment & Compatibility

The table below identifies Acura RSX, Honda Element and the specified Civic configurations. Match the exact five-lug hub and brake option to DS1559; a four-lug car cannot be converted merely by fitting these rotor hats. The aluminum hat mounts on the existing hub, and hydraulic hoses must be purchased separately. A nominal 15-inch wheel remains subject to the complete clearance drawing.

Send PMB Performance the VIN and the relevant brake measurements for help with selection. We have over 20 years of experience working through parts and compatibility details.

Review Installation instructions for the complete installation and clearance requirements.
