Wilwood Front 13.38-Inch GT Brake Package, Red Calipers, Ford Bronco 2.3L with Vacuum Booster (2021–2025)

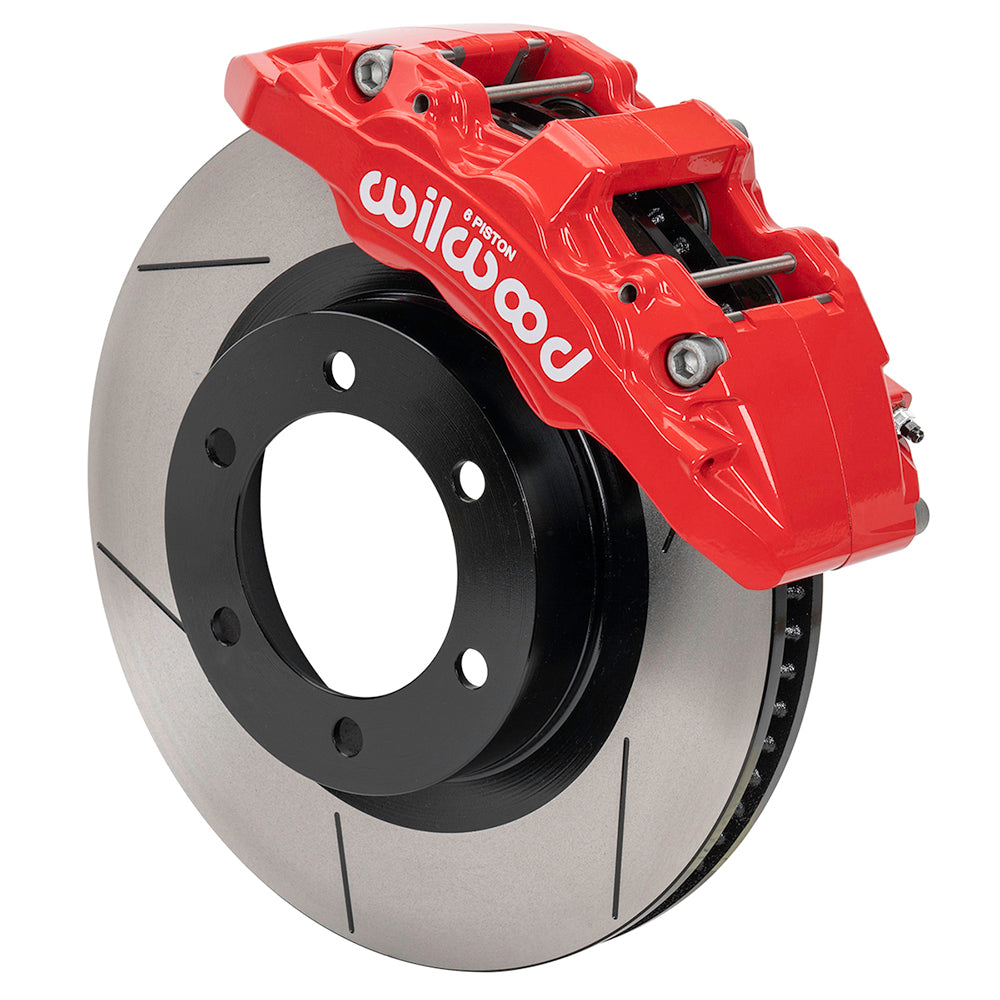

For Ford Bronco 2.3L with Vacuum Booster (2021–2025), this front AERO6-DM kit uses red Wilwood calipers and gt slotted rotors. Its 6-piston hydraulic layout and 13.38-inch rotor diameter need to be checked against the actual hub, upright and wheel arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company makes disc-brake systems for street-performance, motorsport and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected around the demands of the complete braking installation.

Technical Details

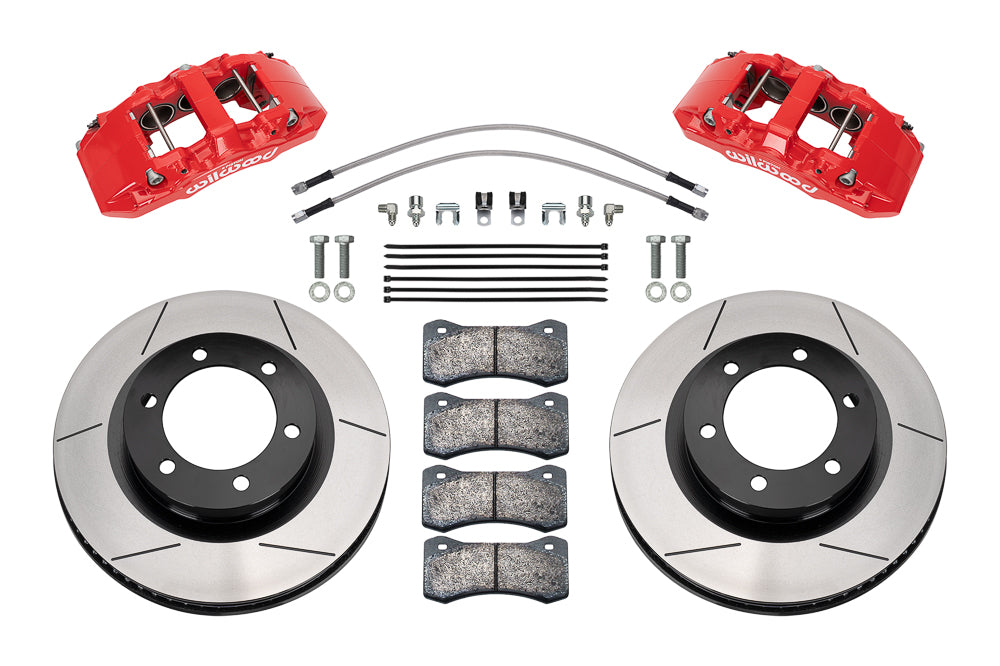

• Manufacturer part number: 140-17512-R; supplied as an axle kit.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.62, 1.62 inches; piston area 6.52 square inches; inlet 1/8-27 NPT.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.
• Service calipers: AERODM; 6 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Rotor/hat mounting-hole pattern: 6 x 5.5 in; 6 x 139.7 mm; cataloged hole clearances 0.52 in; 13.21 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Brake rotor size: 13.38-inch outside diameter × 1.25-inch thickness; vented friction section.

Fitment & Compatibility

Only the 2.3L Ford Bronco with a vacuum brake booster is suitable for this kit. Wilwood specifically excludes the 2.7L e-booster system and any Bronco fitted with an e-booster. Match the trim and year in the table below, verify the actual booster before purchase, then check the factory front upright and 17-inch wheel drawing in DS1565. This is not a Bronco Sport application.

Talk to PMB Performance about the installed brake arrangement if you need a fitment check. Over 20 years of parts experience informs our review of your VIN, photos and component dimensions.

Review Installation instructions for the complete installation and clearance requirements.
