Wilwood Front AERO6-DM Conversion with Red Calipers & Drilled Rotors, Ford Bronco 2.3L Vacuum Booster (2021–2025)

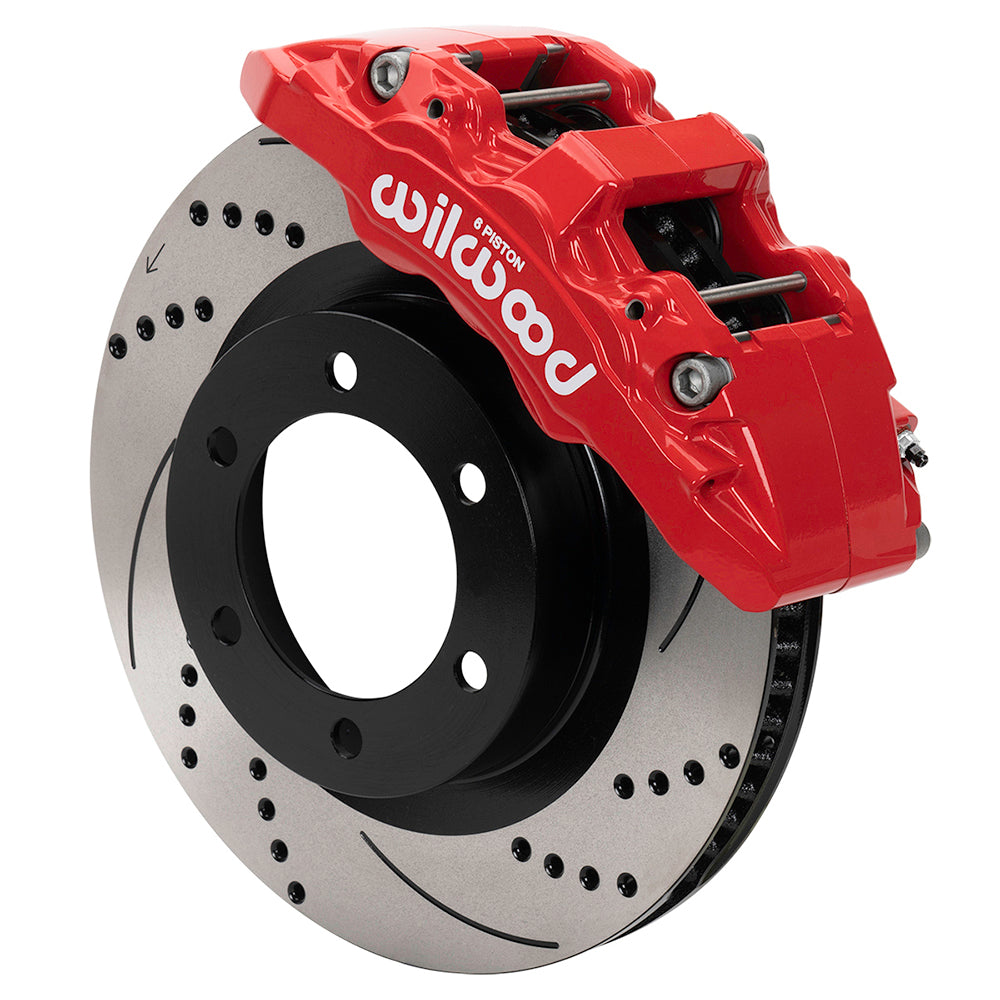

The 13.38 × 1.25-inch srp drilled & slotted rotors define this AERO6-DM front brake package for Ford Bronco 2.3L with Vacuum Booster (2021–2025). Wilwood supplies red 6-piston calipers for the specified installation, with the rotor width and mounting hardware selected as a system. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc-brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support motorsport, street-performance and specialized uses, with each component chosen in relation to the complete brake system.

Technical Details

• Manufacturer part number: 140-17512-DR; supplied as an axle kit.
• Rotor/hat mounting-hole pattern: 6 x 5.5 in; 6 x 139.7 mm; cataloged hole clearances 0.52 in; 13.21 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.

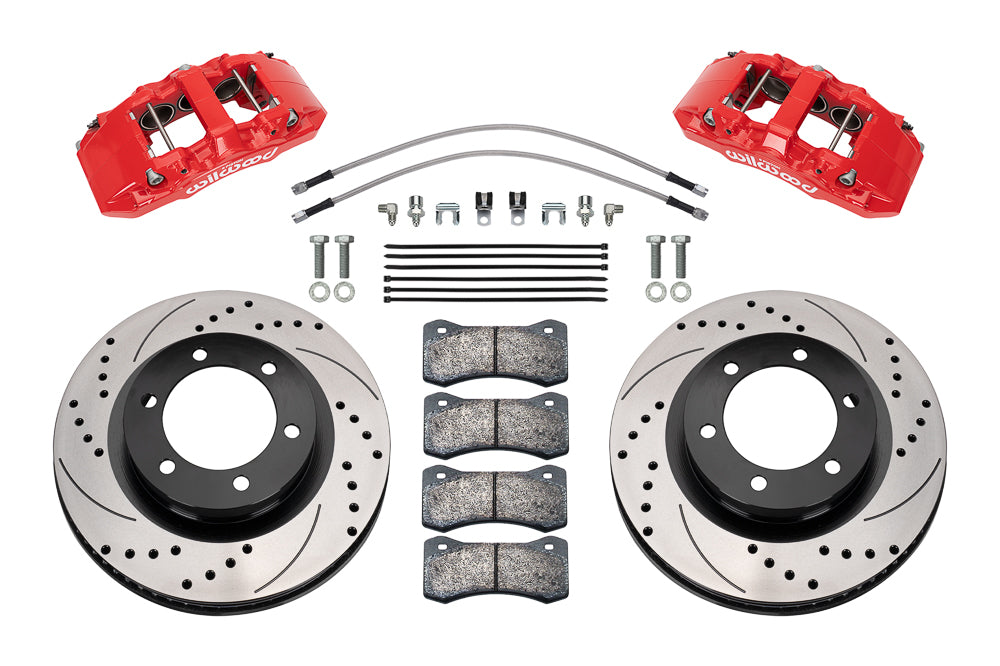

• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Brake rotor size: 13.38-inch outside diameter × 1.25-inch thickness; vented friction section.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.62, 1.62 inches; piston area 6.52 square inches; inlet 1/8-27 NPT.
• Rotor specification: Material: Iron; Type: SRP Drilled Rotor & Hat; Style: SRP Drilled & Slotted; Surface Finish: Black Electro Coat.
• Service calipers: AERODM; 6 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.

Fitment & Compatibility

Only the 2.3L Ford Bronco with a vacuum brake booster is suitable for this kit. Wilwood specifically excludes the 2.7L e-booster system and any Bronco fitted with an e-booster. Match the trim and year in the table below, verify the actual booster before purchase, then check the factory front upright and 17-inch wheel drawing in DS1565. This is not a Bronco Sport application.

PMB Performance has over 20 years of parts experience. Share the VIN and any changes to the axle, upright or wheels before ordering if the brake configuration is uncertain.

Review Installation instructions for the complete installation and clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
