Wilwood Front GT Rotor Brake Package with Red Calipers, Toyota Tacoma / 4Runner / FJ Cruiser / Lexus GX470 / GX460

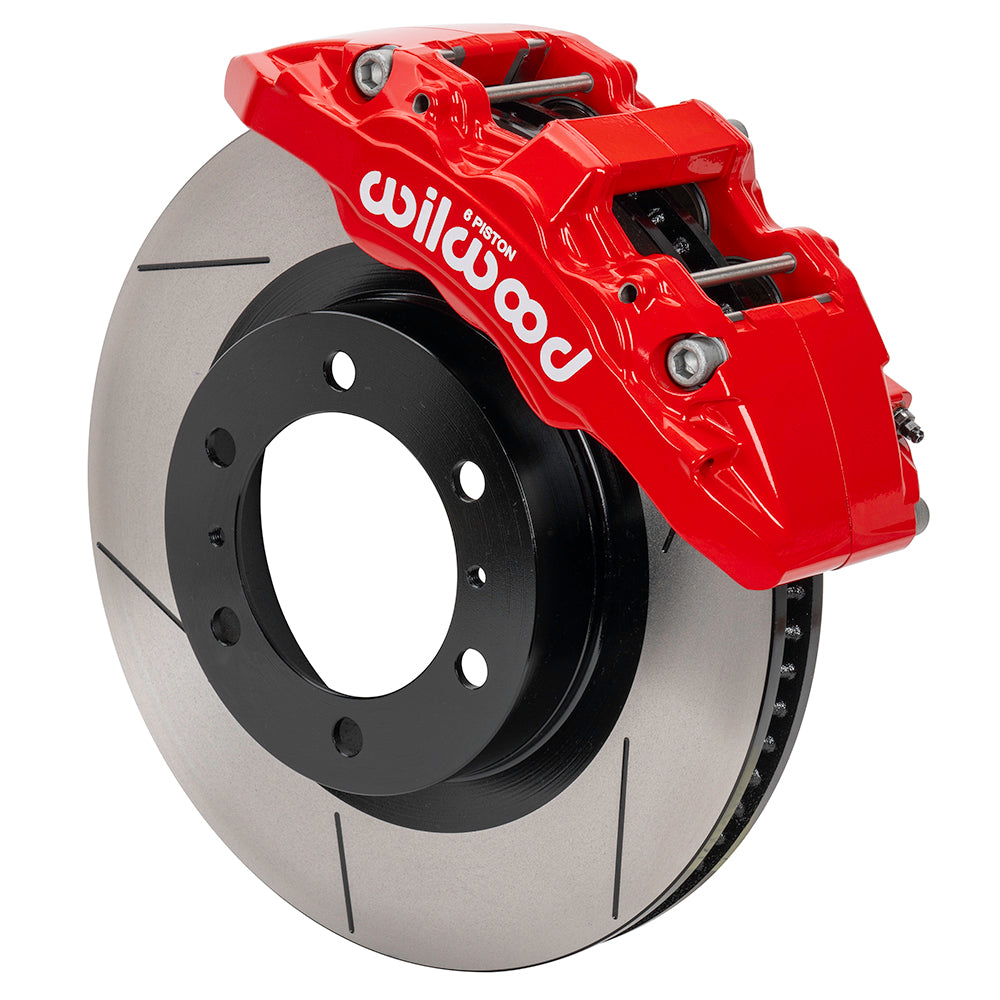

Wilwood configures this front AERO6-DM kit around 13.31 × 1.26-inch rotors for Toyota Tacoma / 4Runner / FJ Cruiser / Lexus GX470 / GX460 (2003–2024). The selected red calipers use 6 service pistons each; matching the factory or specified conversion hardware is essential to the complete installation. Camarillo, California is home to Wilwood Engineering, founded in 1977 by Bill Wood. The company designs and manufactures disc-brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must match the complete braking system.

Technical Details

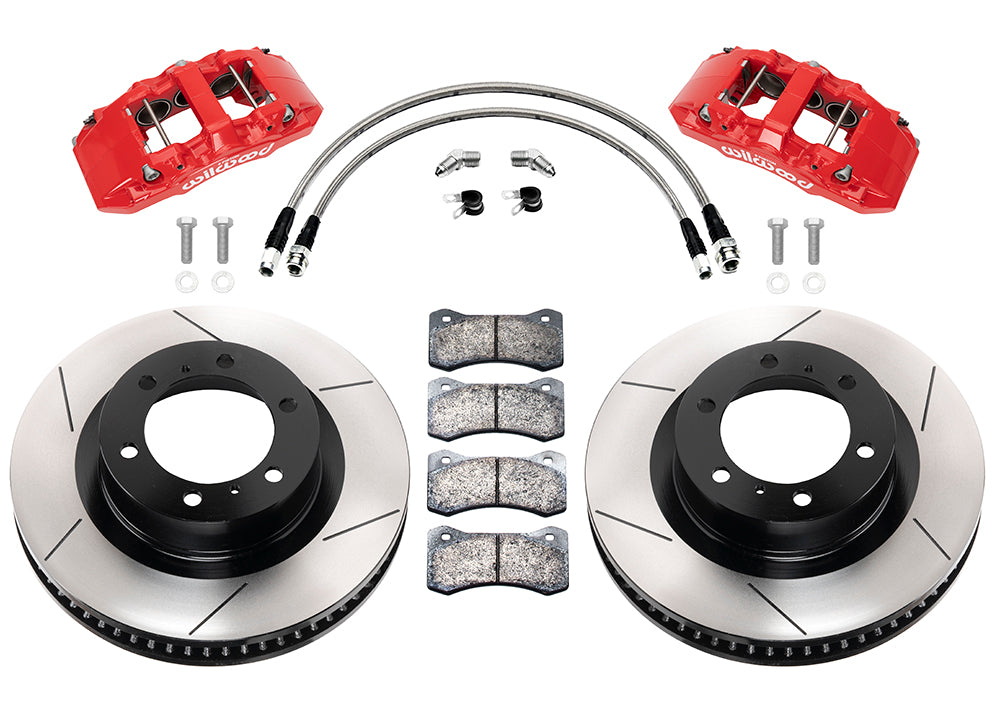

• Manufacturer part number: 140-17511-R; supplied as an axle kit.
• Service calipers: AERODM; 6 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.
• Brake rotor size: 13.31-inch outside diameter × 1.26-inch thickness; vented friction section.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.
• Installation preparation: Dust-shield trimming/clearancing required as shown in the installation instructions.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Rotor/hat mounting-hole pattern: 6 x 5.5 in; 6 x 139.7 mm; cataloged hole clearances 0.58 in; 14.73 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Hydraulic sizing: cataloged bore sizes 1.62, 1.38, 1.38 inches; piston area 5.06 square inches; inlet 1/8-27 NPT.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.

Fitment & Compatibility

Use the complete table below for Toyota Tacoma, 4Runner and FJ Cruiser, plus Lexus GX470 and GX460; their model years differ. DS1569 requires trimming the dust shield for rotor and caliper clearance. Verify the original front upright, hub register and installed brake package. These calipers use the stated 5.06-square-inch hydraulic area and should not be confused with the larger-area later-4Runner version.

PMB Performance brings more than 20 years of parts experience to fitment questions. Send your VIN and details of the installed brakes so we can help check the application.

Review Installation instructions for the complete installation and clearance requirements.
