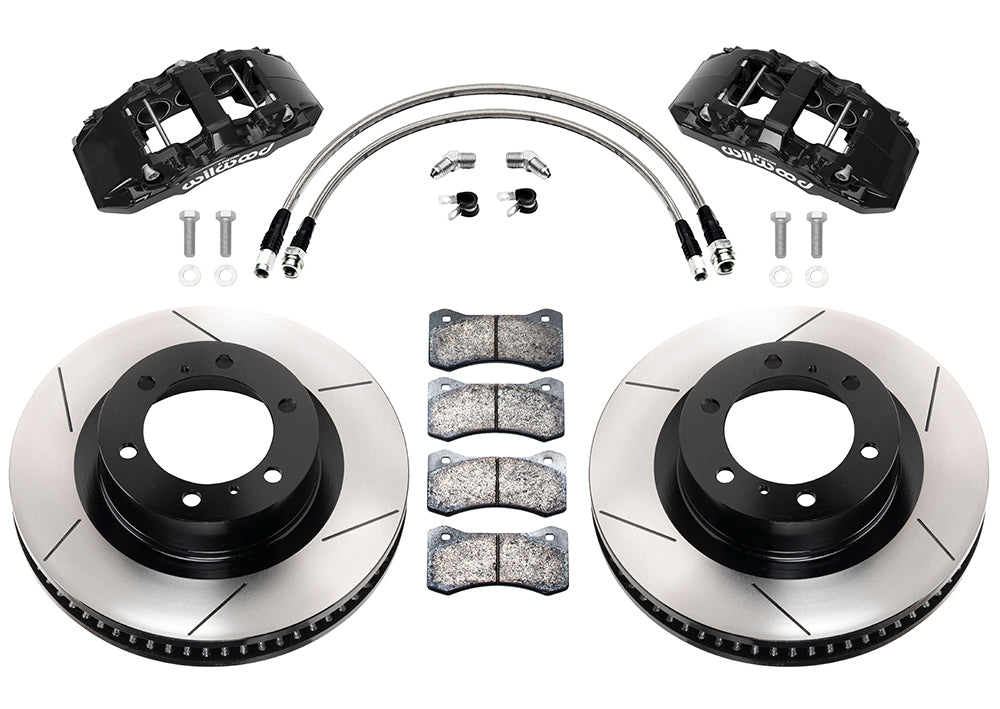

Wilwood Front AERO6-DM Brake Kit, Black, Toyota Tacoma / 4Runner / FJ Cruiser / Lexus GX470 / GX460, 13.31-Inch GT Rotors

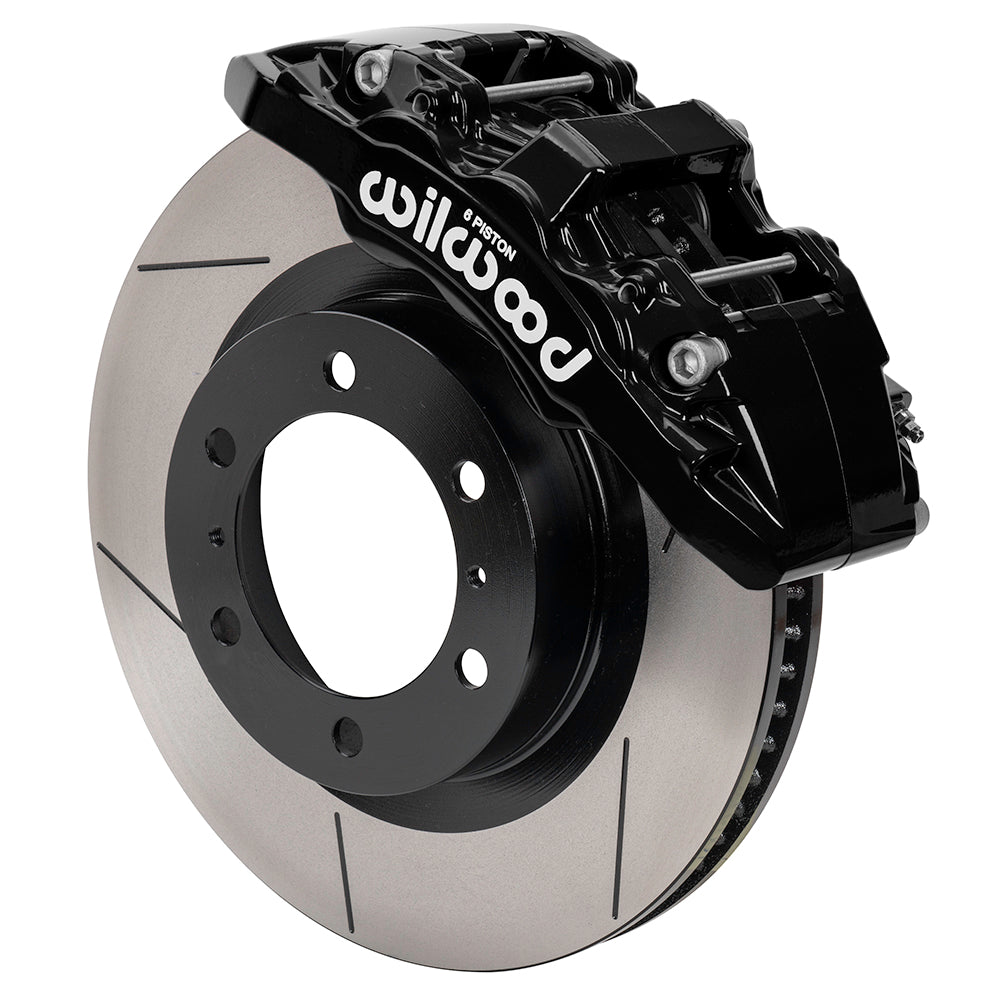

Black AERO6-DM calipers provide the hydraulic service braking in this Wilwood front conversion for Toyota Tacoma / 4Runner / FJ Cruiser / Lexus GX470 / GX460 (2003–2024). They work with 13.31 × 1.26-inch gt slotted rotors; the vehicle designation must be considered together with the mounting details below. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. Its work covers the design and manufacture of disc-brake systems and components for specialized vehicles, motorsport and street-performance use. The product range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines; compatibility depends on the complete system.

Technical Details

• Manufacturer part number: 140-17511; supplied as an axle kit.
• Installation preparation: Dust-shield trimming/clearancing required as shown in the installation instructions.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Hydraulic sizing: cataloged bore sizes 1.62, 1.38, 1.38 inches; piston area 5.06 square inches; inlet 1/8-27 NPT.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.
• Brake rotor size: 13.31-inch outside diameter × 1.26-inch thickness; vented friction section.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Rotor/hat mounting-hole pattern: 6 x 5.5 in; 6 x 139.7 mm; cataloged hole clearances 0.58 in; 14.73 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Service calipers: AERODM; 6 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.

Fitment & Compatibility

Use the complete table below for Toyota Tacoma, 4Runner and FJ Cruiser, plus Lexus GX470 and GX460; their model years differ. DS1569 requires trimming the dust shield for rotor and caliper clearance. Verify the original front upright, hub register and installed brake package. These calipers use the stated 5.06-square-inch hydraulic area and should not be confused with the larger-area later-4Runner version.

With more than 20 years of parts experience, PMB Performance can help compare your VIN and installed hardware with the required configuration. Include any suspension, wheel or axle changes.

Review Installation instructions for the complete installation and clearance requirements.
