Wilwood Front GT Rotor & Red TX6-DM Caliper Kit for Chevrolet Silverado / GMC Sierra 2500/3500 HD (2020–2025)

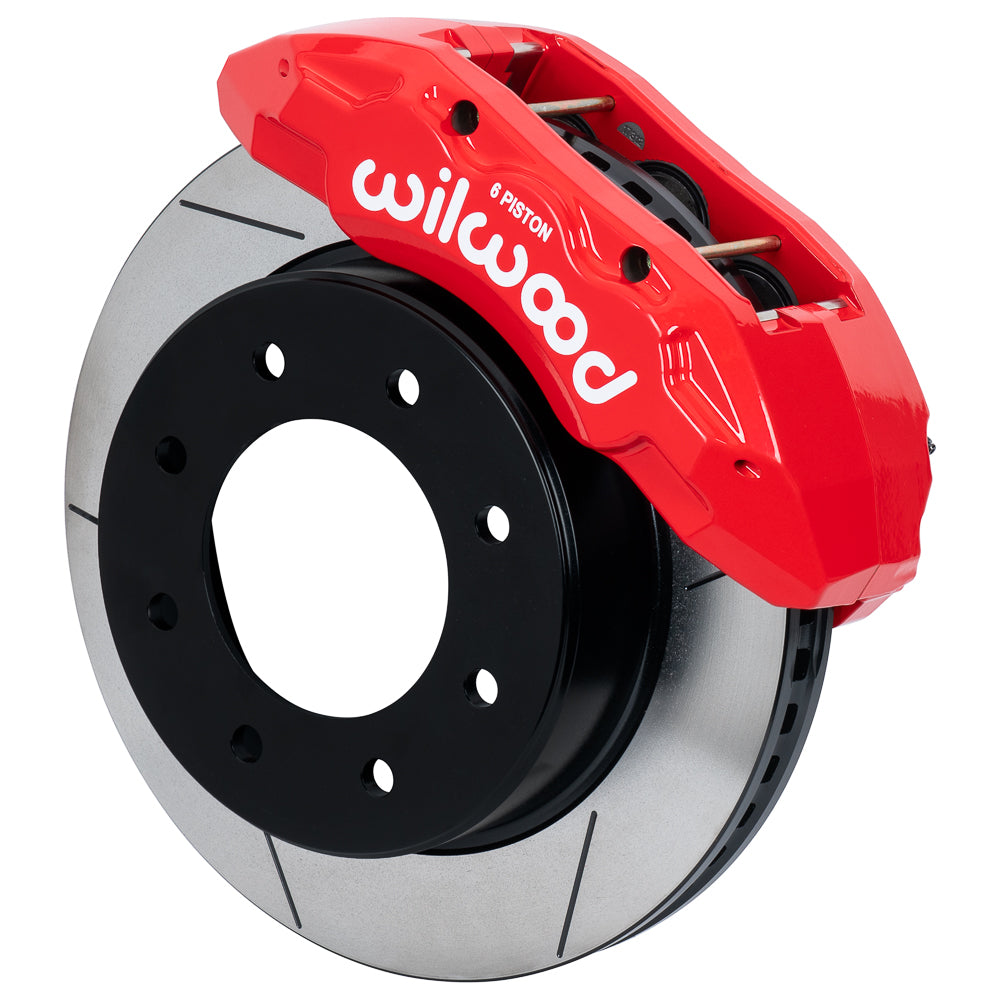

For Chevrolet Silverado / GMC Sierra 2500/3500 HD (2020–2025), this front TX6-DM kit uses red Wilwood calipers and gt slotted rotors. Its 6-piston hydraulic layout and 15.00-inch rotor diameter need to be checked against the actual hub, upright and wheel arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company makes disc-brake systems for street-performance, motorsport and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected around the demands of the complete braking installation.

Technical Details

• Manufacturer part number: 140-17468-R; supplied as an axle kit.
• Rotor/hat mounting-hole pattern: 8 x 7.087 in; 8 x 180.01 mm; cataloged hole clearances 0.64 in; 16.26 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Wheel envelope: 20-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.

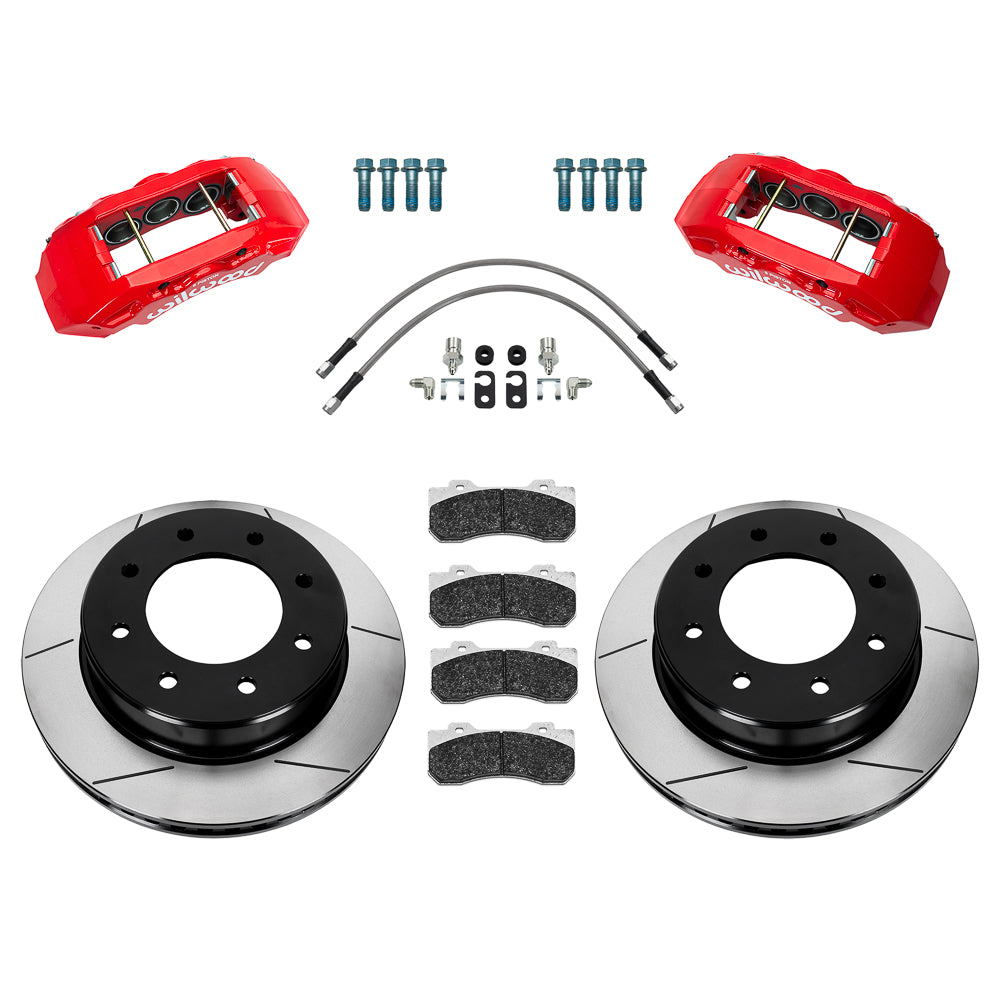

• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Hydraulic sizing: cataloged bore sizes 2.00, 1.88, 1.88 inches; piston area 8.70 square inches; inlet 1/8-27 NPT.
• Service calipers: TX6-DM; 6 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Brake rotor size: 15.00-inch outside diameter × 1.50-inch thickness; vented friction section.

Fitment & Compatibility

DS1583 documents 2020-on Chevrolet Silverado and GMC Sierra 2500/3500 HD front brake hardware, with the eight-lug rotor and factory upright. The table below also names 1987 Chevrolet V10 Pickup and V10 Suburban; those applications need direct technical confirmation and are not established by the HD-truck installation instructions. Do not order for either V10 on model/year alone. Check hub registration, stud clearance and the full 20-inch wheel drawing.

Talk to PMB Performance about the installed brake arrangement if you need a fitment check. Over 20 years of parts experience informs our review of your VIN, photos and component dimensions.

Review Installation instructions for the complete installation and clearance requirements.
