Wilwood Front Six-Piston Hub Brake Package, Red, Plain 12.19-Inch Rotors, Chrysler / Dodge / Plymouth A/B/E/F/J-Body

The 12.19 × 0.81-inch plain face rotors define this Dynapro 6A front brake package for Chrysler / Dodge / Plymouth A/B/E/F/J-Body (1973–1989). Wilwood supplies red 6-piston calipers for the specified installation, with the rotor width and mounting hardware selected as a system. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc-brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support motorsport, street-performance and specialized uses, with each component chosen in relation to the complete brake system.

Technical Details

• Manufacturer part number: 140-17321-R; supplied as an axle kit.
• Supplied friction pads: BP-10 compound; match operating conditions to the intended use.
• Wheel envelope: 15-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.

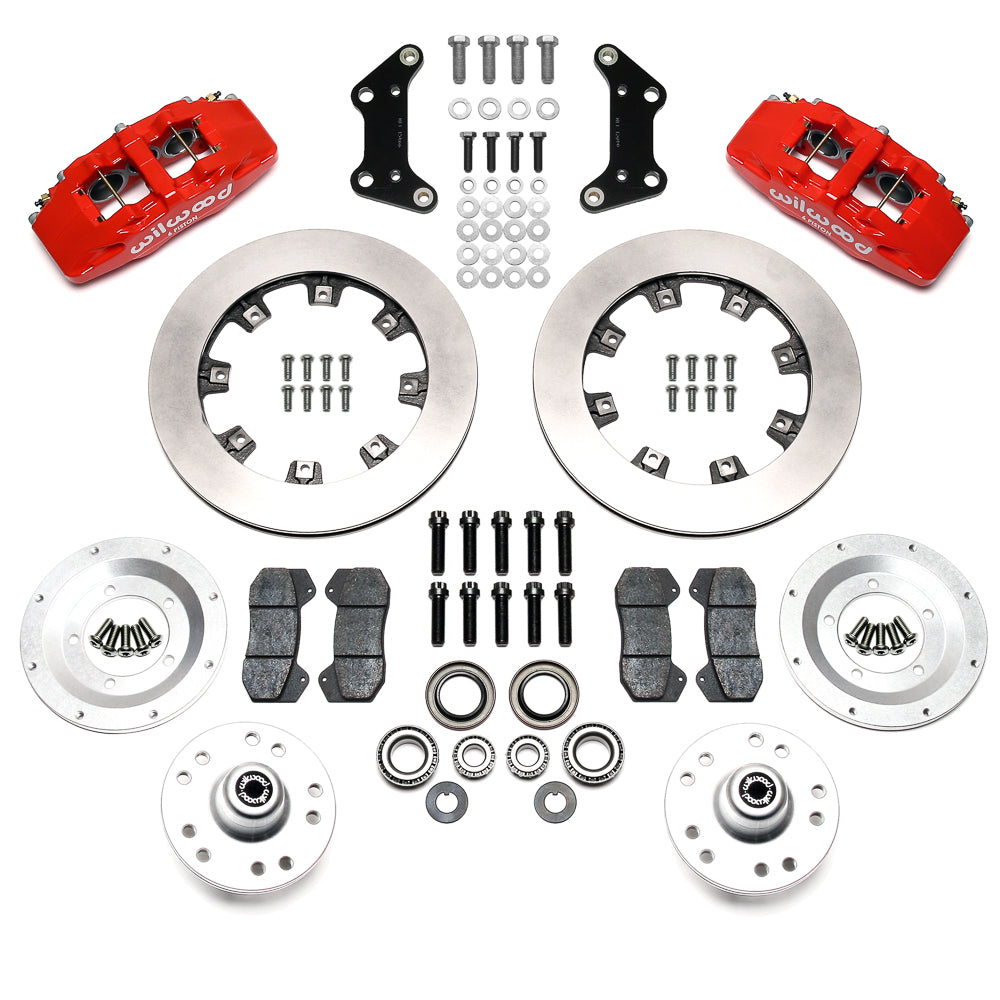

• Hardware and retained components: Mounting hardware supplied; wheel hubs included; spindles, master cylinder and brake booster are not included.

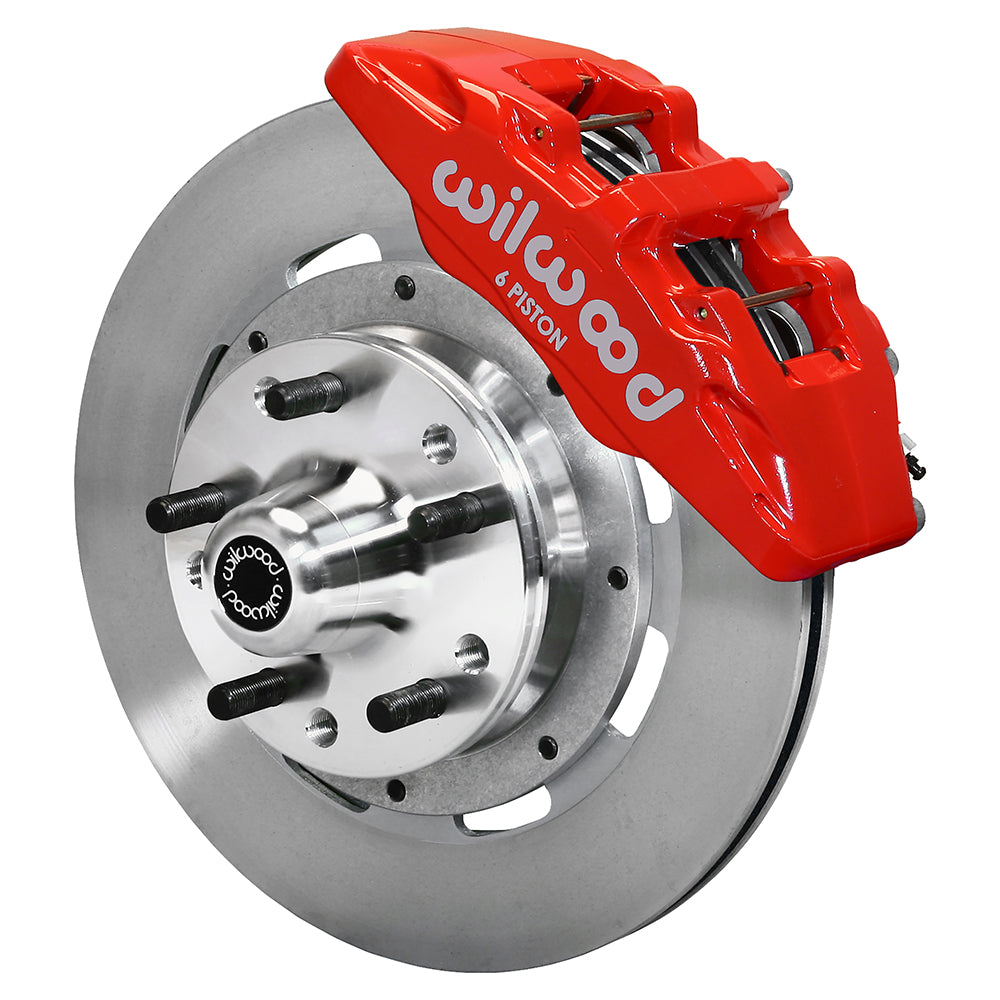

• Service calipers: Dynapro 6; 6 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.
• Brake rotor size: 12.19-inch outside diameter × 0.81-inch thickness; vented friction section.
• Hydraulic lines: Hydraulic flexlines and fittings are not included; select compatible lines for the complete installation.
• Hydraulic sizing: cataloged bore sizes 1.62, 1.38, 1.38 inches; piston area 5.06 square inches; inlet 1/8-27 NPT.
• Included wheel hubs: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm wheel patterns; 1/2-20 studs. Check the selected pattern and bearing arrangement before assembly.
• Rotor specification: Material: Iron; Type: Ultralite HP 32; Style: Plain Face; Surface Finish: Plain.

Fitment & Compatibility

DS1536 specifies the 1973–1983 Chrysler, Dodge and Plymouth A/B/E/F/J-body disc-brake spindles. The table below also lists later applications through 1989; confirm that their spindle and bearing arrangement match the drawing before ordering. The supplied aluminum hubs carry 1/2-20 studs. This front brake kit does not include a master cylinder or require a parking-brake cable; those unrelated rear-system notes do not define the front installation. Listed models include Challenger, Charger, Coronet, Dart, Barracuda, Cuda, Duster, Roadrunner, Satellite, Scamp, Valiant, Cordoba, Fury, Aspen, Volare, Lebaron, Diplomat, Monaco, Magnum, New Yorker, Newport, St. Regis, Mirada, Imperial, Caravelle, Fifth Avenue. Verify each row rather than treating the complete year span as fitment for every body.

PMB Performance has over 20 years of parts experience. Share the VIN and any changes to the axle, upright or wheels before ordering if the brake configuration is uncertain.

Review Installation instructions for the complete installation and clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
