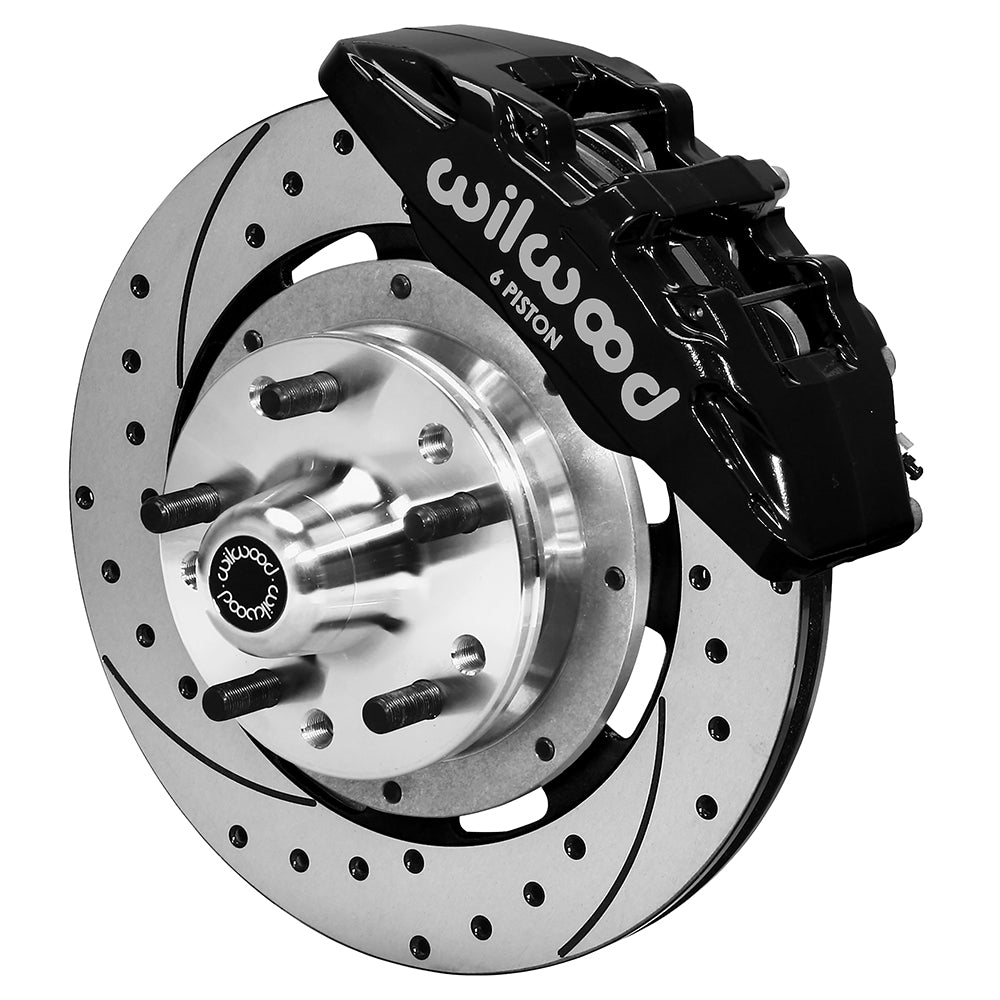

Wilwood Front 12.19-Inch SRP Rotor & Hub Kit, Black Dynapro Calipers, Chrysler / Dodge / Plymouth A/B/E/F/J-Body

Chrysler / Dodge / Plymouth A/B/E/F/J-Body (1973–1989) applications using the specified mounting arrangement can use this Wilwood Dynapro 6A front brake conversion. It combines black 6-piston calipers, pads and srp drilled & slotted 12.19-inch rotors, with the exact fitment qualifications set out below. Wilwood Engineering designs and manufactures disc-brake systems and components in Camarillo, California, where the company founded by Bill Wood in 1977 is based. Its range serves specialized applications, motorsport and street-performance vehicles, including calipers, brake rotors, master cylinders, valves, fittings and brake lines chosen to match a complete system.

Technical Details

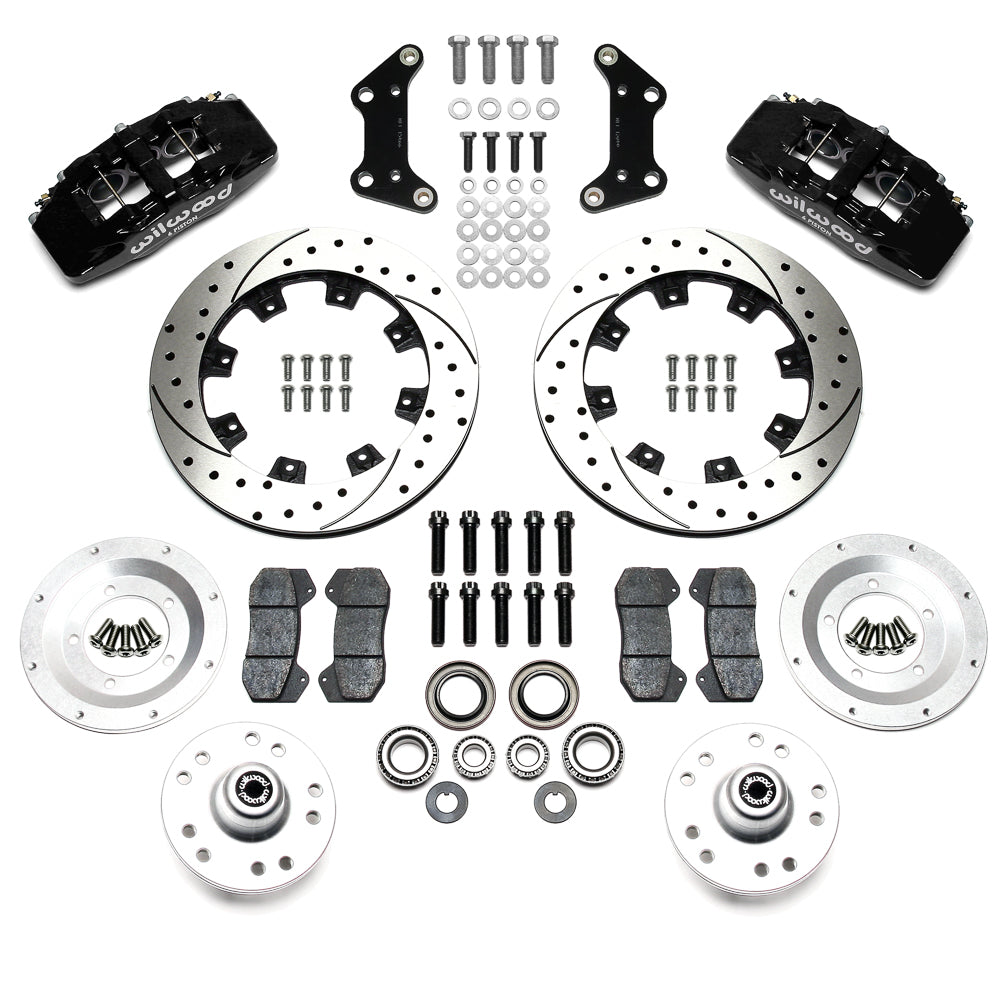

• Manufacturer part number: 140-17321-D; supplied as an axle kit.
• Brake rotor size: 12.19-inch outside diameter × 0.81-inch thickness; vented friction section.
• Hardware and retained components: Mounting hardware supplied; wheel hubs included; spindles, master cylinder and brake booster are not included.
• Supplied friction pads: BP-10 compound; match operating conditions to the intended use.
• Hydraulic lines: Hydraulic flexlines and fittings are not included; select compatible lines for the complete installation.
• Included wheel hubs: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm wheel patterns; 1/2-20 studs. Check the selected pattern and bearing arrangement before assembly.
• Service calipers: Dynapro 6; 6 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.
• Rotor specification: Material: Iron; Type: SRP Drilled Rotor; Style: SRP Drilled & Slotted; Surface Finish: Black Electro Coat.
• Hydraulic sizing: cataloged bore sizes 1.62, 1.38, 1.38 inches; piston area 5.06 square inches; inlet 1/8-27 NPT.
• Wheel envelope: 15-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.

Fitment & Compatibility

DS1536 specifies the 1973–1983 Chrysler, Dodge and Plymouth A/B/E/F/J-body disc-brake spindles. The table below also lists later applications through 1989; confirm that their spindle and bearing arrangement match the drawing before ordering. The supplied aluminum hubs carry 1/2-20 studs. This front brake kit does not include a master cylinder or require a parking-brake cable; those unrelated rear-system notes do not define the front installation. Listed models include Challenger, Charger, Coronet, Dart, Barracuda, Cuda, Duster, Roadrunner, Satellite, Scamp, Valiant, Cordoba, Fury, Aspen, Volare, Lebaron, Diplomat, Monaco, Magnum, New Yorker, Newport, St. Regis, Mirada, Imperial, Caravelle, Fifth Avenue. Verify each row rather than treating the complete year span as fitment for every body.

For help matching the brake hardware, contact PMB Performance with your VIN, photographs and measurements. Our team has over 20 years of experience with parts and fitment details.

Review Installation instructions for the complete installation and clearance requirements.
