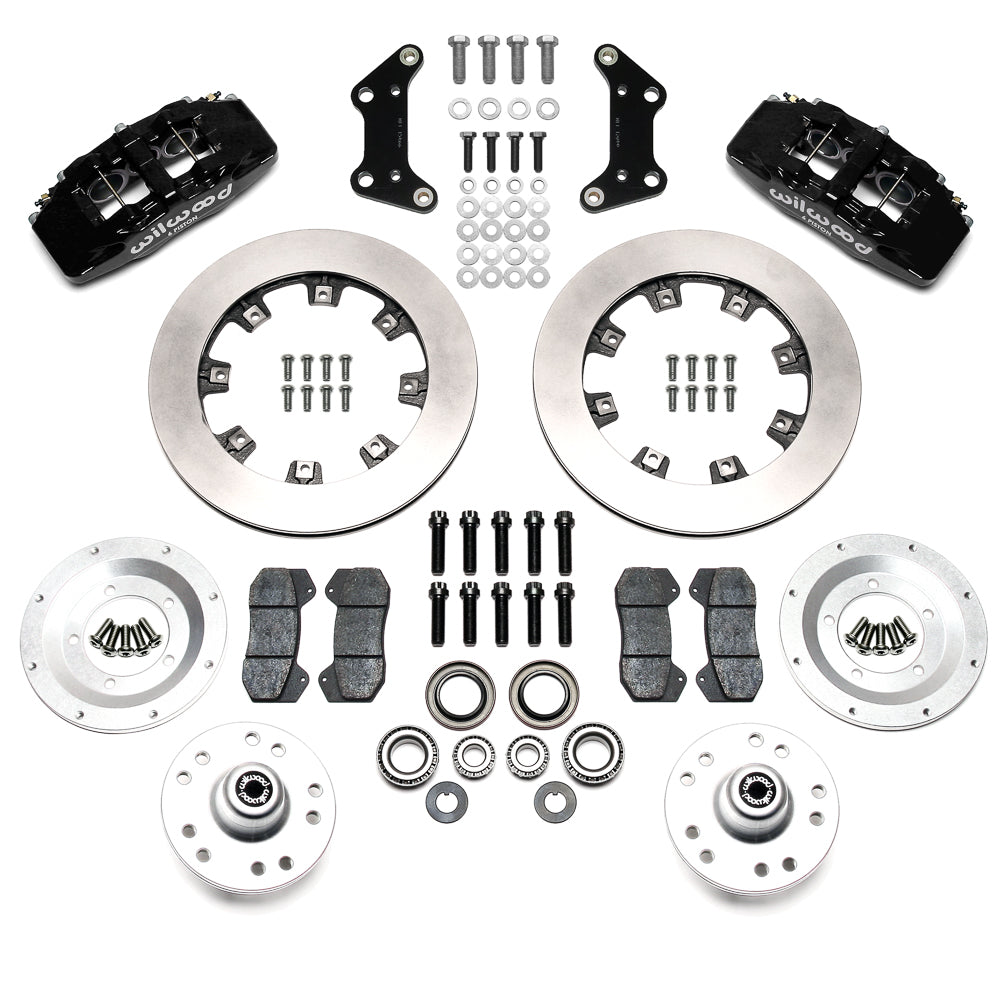

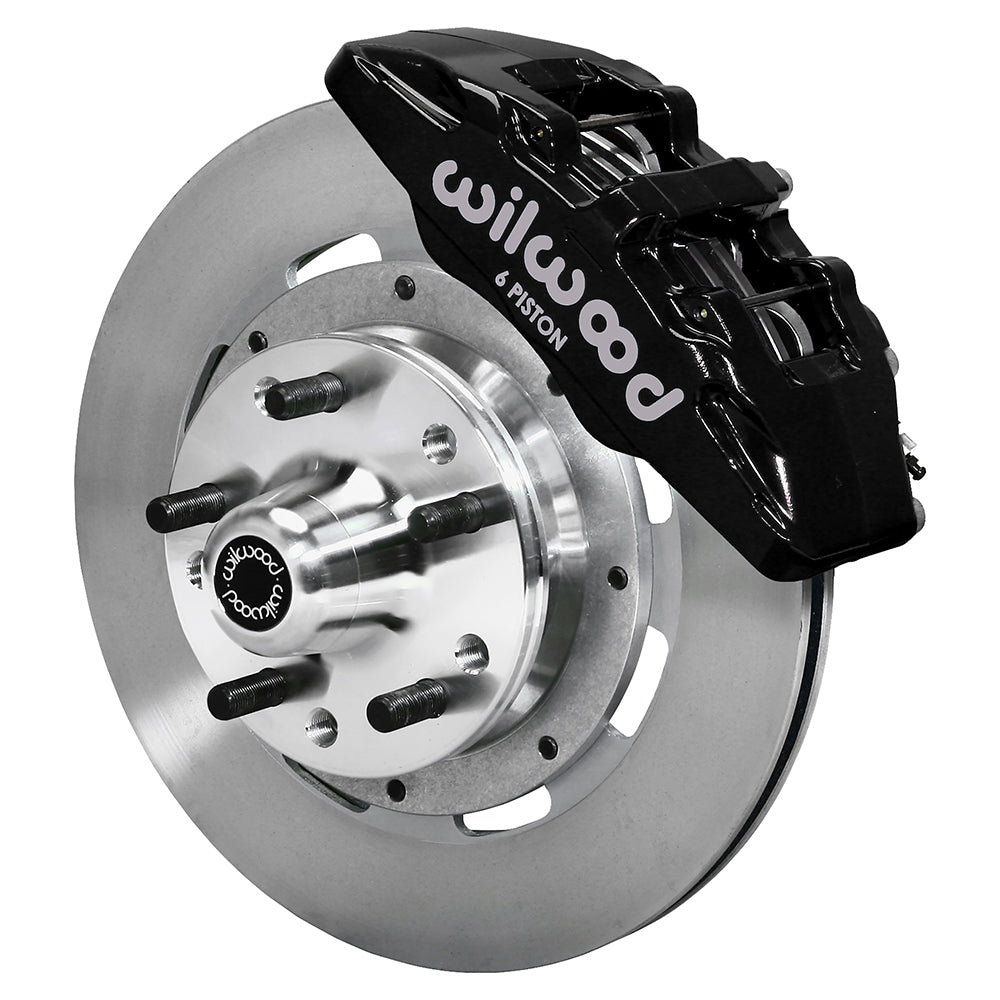

Wilwood Front Dynapro 6A Hub Brake Kit, Black, Plain Rotors, Chrysler / Dodge / Plymouth A/B/E/F/J-Body (1973–1989)

Wilwood configures this front Dynapro 6A kit around 12.19 × 0.81-inch rotors for Chrysler / Dodge / Plymouth A/B/E/F/J-Body (1973–1989). The selected black calipers use 6 service pistons each; matching the factory or specified conversion hardware is essential to the complete installation. Camarillo, California is home to Wilwood Engineering, founded in 1977 by Bill Wood. The company designs and manufactures disc-brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must match the complete braking system.

Technical Details

• Manufacturer part number: 140-17321; supplied as an axle kit.
• Hydraulic lines: Hydraulic flexlines and fittings are not included; select compatible lines for the complete installation.
• Service calipers: Dynapro 6; 6 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.
• Rotor specification: Material: Iron; Type: Ultralite HP 32; Style: Plain Face; Surface Finish: Plain.
• Supplied friction pads: BP-10 compound; match operating conditions to the intended use.
• Wheel envelope: 15-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Brake rotor size: 12.19-inch outside diameter × 0.81-inch thickness; vented friction section.
• Included wheel hubs: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm wheel patterns; 1/2-20 studs. Check the selected pattern and bearing arrangement before assembly.
• Hydraulic sizing: cataloged bore sizes 1.62, 1.38, 1.38 inches; piston area 5.06 square inches; inlet 1/8-27 NPT.
• Hardware and retained components: Mounting hardware supplied; wheel hubs included; spindles, master cylinder and brake booster are not included.

Fitment & Compatibility

DS1536 specifies the 1973–1983 Chrysler, Dodge and Plymouth A/B/E/F/J-body disc-brake spindles. The table below also lists later applications through 1989; confirm that their spindle and bearing arrangement match the drawing before ordering. The supplied aluminum hubs carry 1/2-20 studs. This front brake kit does not include a master cylinder or require a parking-brake cable; those unrelated rear-system notes do not define the front installation. Listed models include Challenger, Charger, Coronet, Dart, Barracuda, Cuda, Duster, Roadrunner, Satellite, Scamp, Valiant, Cordoba, Fury, Aspen, Volare, Lebaron, Diplomat, Monaco, Magnum, New Yorker, Newport, St. Regis, Mirada, Imperial, Caravelle, Fifth Avenue. Verify each row rather than treating the complete year span as fitment for every body.

PMB Performance brings more than 20 years of parts experience to fitment questions. Send your VIN and details of the installed brakes so we can help check the application.

Review Installation instructions for the complete installation and clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
