Product details

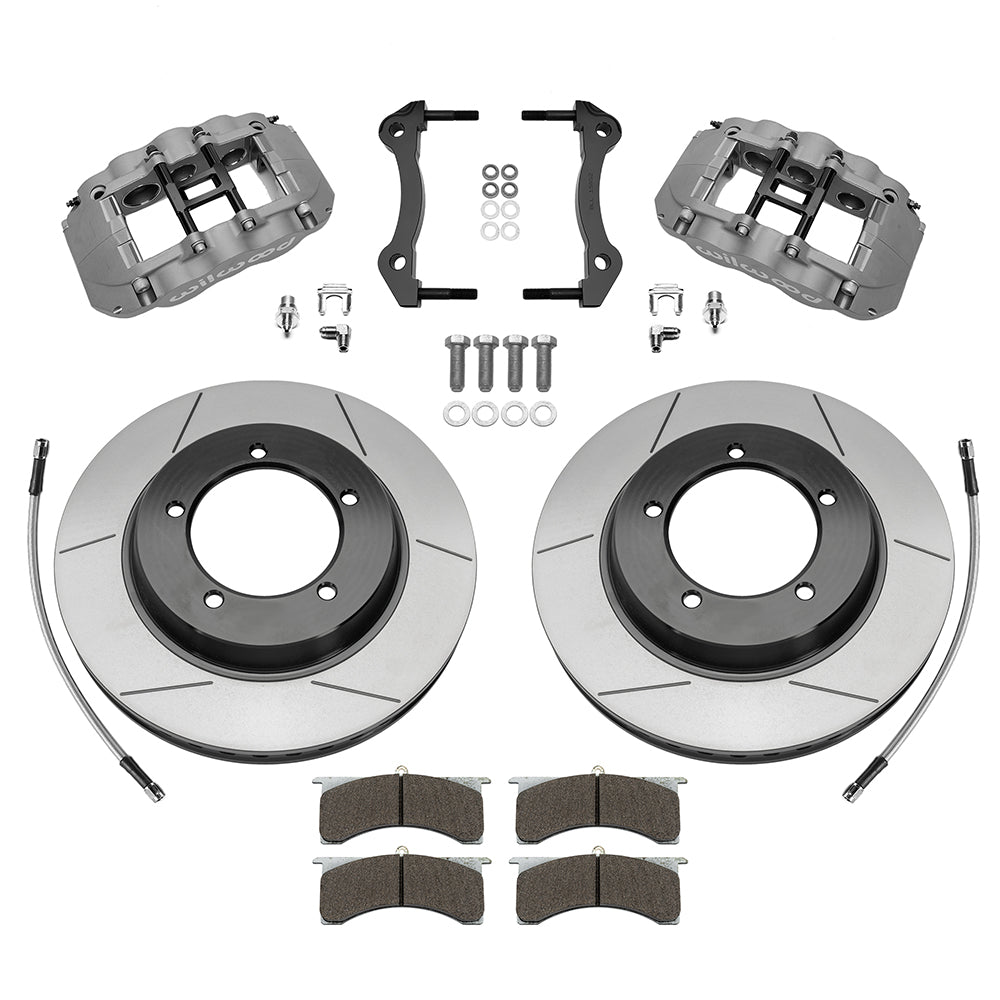

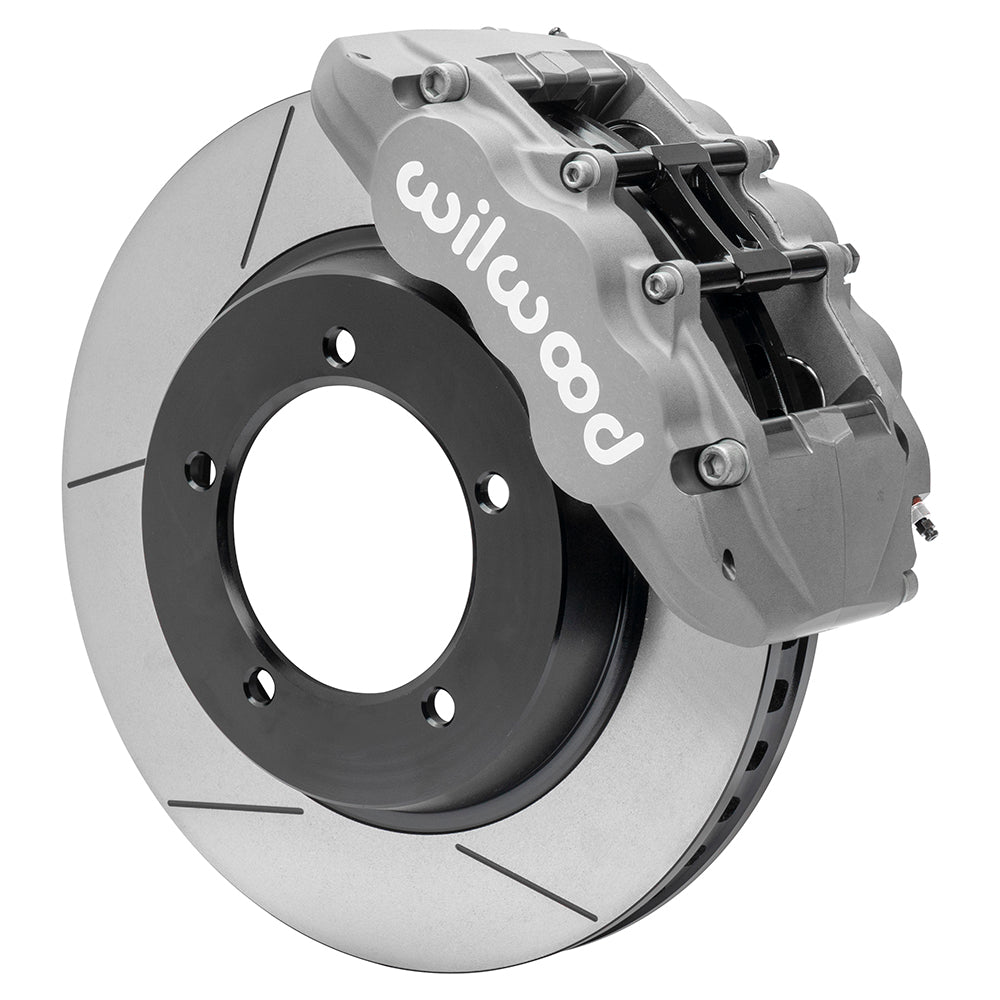

This front AV6R package brings together 13.28-inch gt slotted brake rotors, pads and hard-anodized 6-piston Wilwood calipers for Toyota Land Cruiser LC70. Rotor registration, caliper mounting and the wheel envelope should all be compared with the installation drawing. Established by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering develops disc-brake systems and components for motorsport, street-performance and specialized applications. The range spans calipers and brake rotors through master cylinders, valves, fittings and brake lines, all requiring selection to suit the other parts of the brake system.
Technical Details
- Manufacturer part number: 140-17287; supplied as an axle kit.
- Supplied friction pads: BP-20 compound; match operating conditions to the intended use.
- Hydraulic sizing: cataloged bore sizes 1.75, 1.38, 1.38 inches; piston area 5.40 square inches; inlet 1/8-27 NPT.
- Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
- Service calipers: AV6R; 6 pistons per caliper; Type III Anodize; radial mounting; stainless pistons.
- Rotor specification: Material: Iron; Type: GT 42 Vane; Style: GT Slotted; Surface Finish: Black Electro Coat.
- Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
- Brake rotor size: 13.28-inch outside diameter × 1.30-inch thickness; vented friction section.
- Rotor/hat mounting-hole pattern: 5 x 5.669 in; 5 x 143.99 mm; cataloged hole clearances 0.50 in; 12.70 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
- Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
Fitment & Compatibility
DS1544 identifies the Toyota LC70 front axle hub for this AV6R conversion. Confirm the actual hub register, caliper mounting bosses, rotor attachment and 17-inch wheel envelope; LC70 designation alone is insufficient where the vehicle has different axle or brake hardware. The factory hub remains and the supplied braided flexlines complete the documented hydraulic installation.
Before ordering for modified hardware, give PMB Performance the VIN and clear photos of the installation. Our more than 20 years of parts experience helps us assess the details that model year alone cannot resolve.
Review Installation instructions for the complete installation and clearance requirements.
