Wilwood Front AERO6-DM Conversion, Red Calipers & Drilled Rotors, Toyota 4Runner / Lexus GX460 (2015–2024)

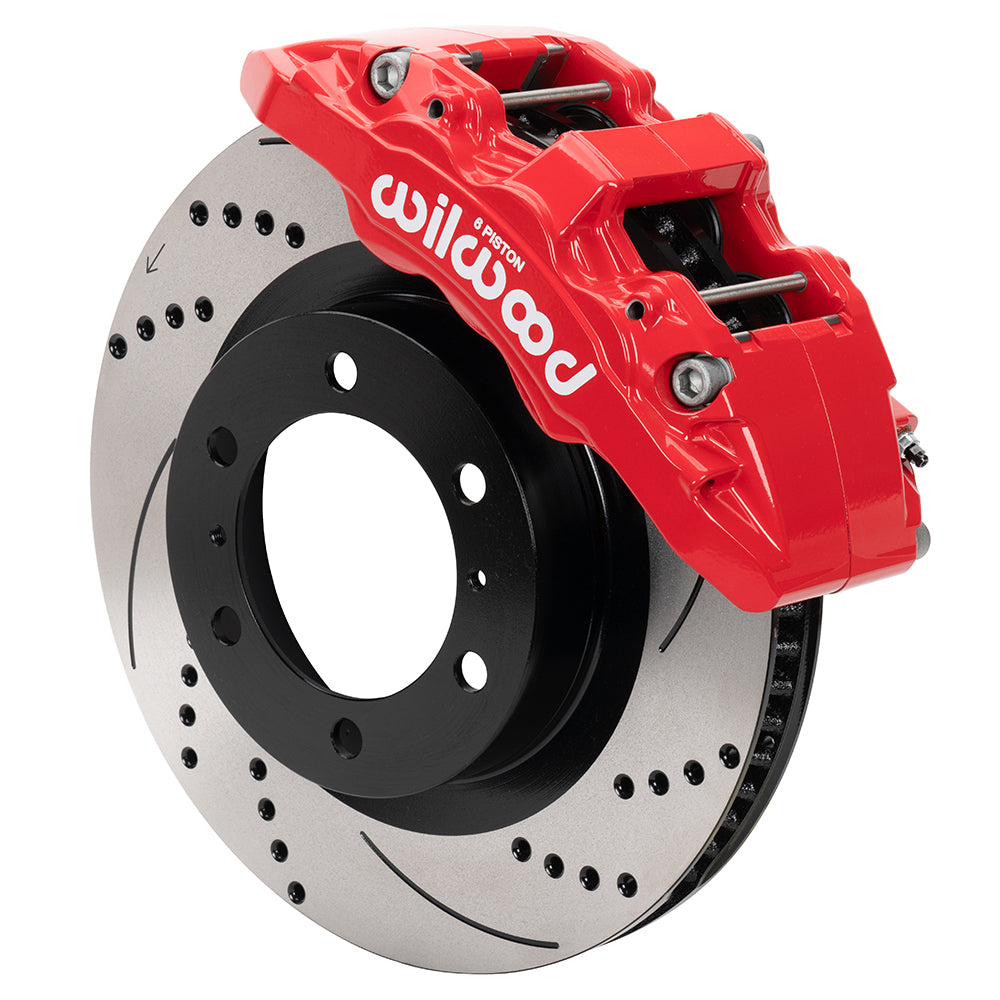

Red AERO6-DM calipers provide the hydraulic service braking in this Wilwood front conversion for Toyota 4Runner / Lexus GX460 (2015–2024). They work with 13.31 × 1.26-inch srp drilled & slotted rotors; the vehicle designation must be considered together with the mounting details below. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. Its work covers the design and manufacture of disc-brake systems and components for specialized vehicles, motorsport and street-performance use. The product range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines; compatibility depends on the complete system.

Technical Details

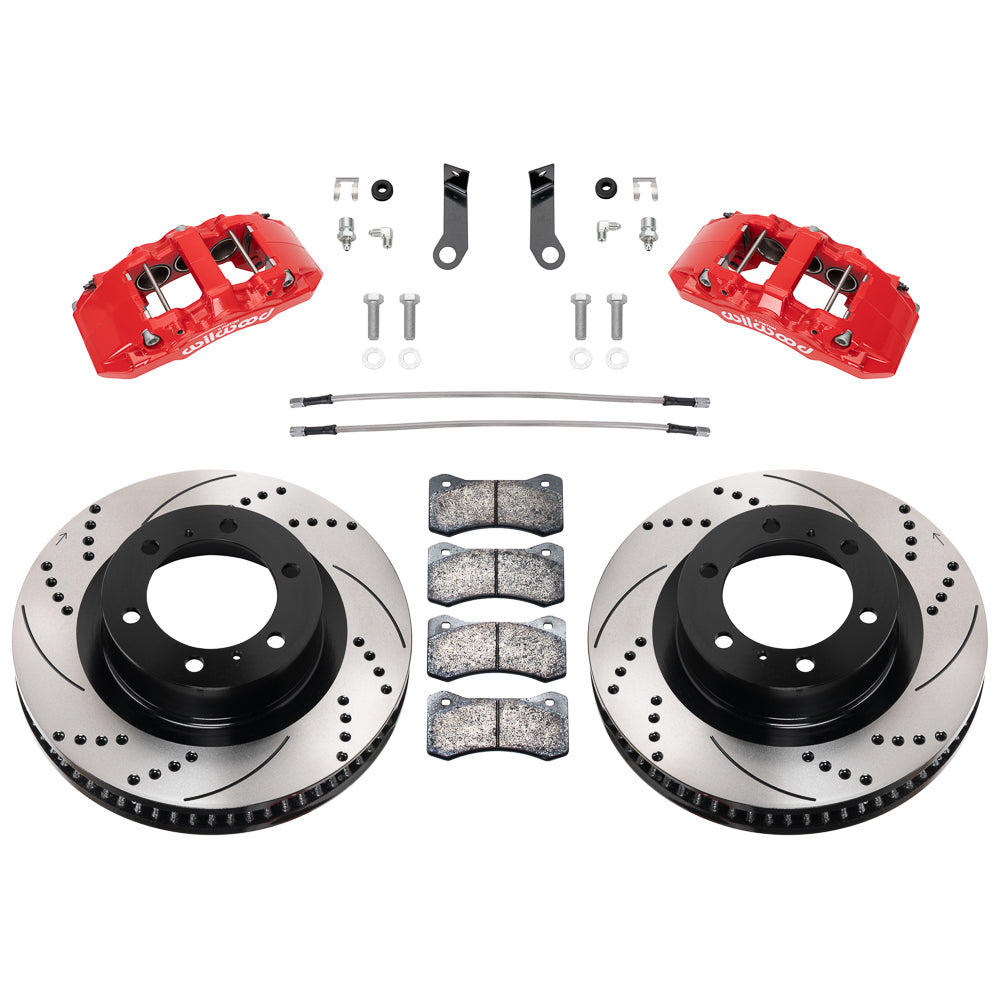

• Manufacturer part number: 140-17284-DR; supplied as an axle kit.
• Service calipers: AERODM; 6 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Rotor/hat mounting-hole pattern: 6 x 5.5 in; 6 x 139.7 mm; cataloged hole clearances 0.58 in; 14.73 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Rotor specification: Material: Iron; Type: SRP Drilled Rotor & Hat; Style: SRP Drilled & Slotted; Surface Finish: Black Electro Coat.
• Installation preparation: Dust-shield trimming/clearancing required as shown in the installation instructions.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.50, 1.50 inches; piston area 5.94 square inches; inlet 1/8-27 NPT.
• Brake rotor size: 13.31-inch outside diameter × 1.26-inch thickness; vented friction section.

Fitment & Compatibility

Toyota 4Runner applications extend through 2024 and Lexus GX460 through 2023 in the table below; check the individual trim/year row. DS1551 requires clearancing the dust shield for caliper mounting. These are the later factory front-upright applications and their specified piston area, not every six-lug Toyota/Lexus hub. Compare the rotor register and 17-inch wheel template before installation.

With more than 20 years of parts experience, PMB Performance can help compare your VIN and installed hardware with the required configuration. Include any suspension, wheel or axle changes.

Review Installation instructions for the complete installation and clearance requirements.
