Wilwood Front 13.31-Inch SRP Rotor & Black Caliper Kit, Toyota 4Runner / Lexus GX460 (2015–2024)

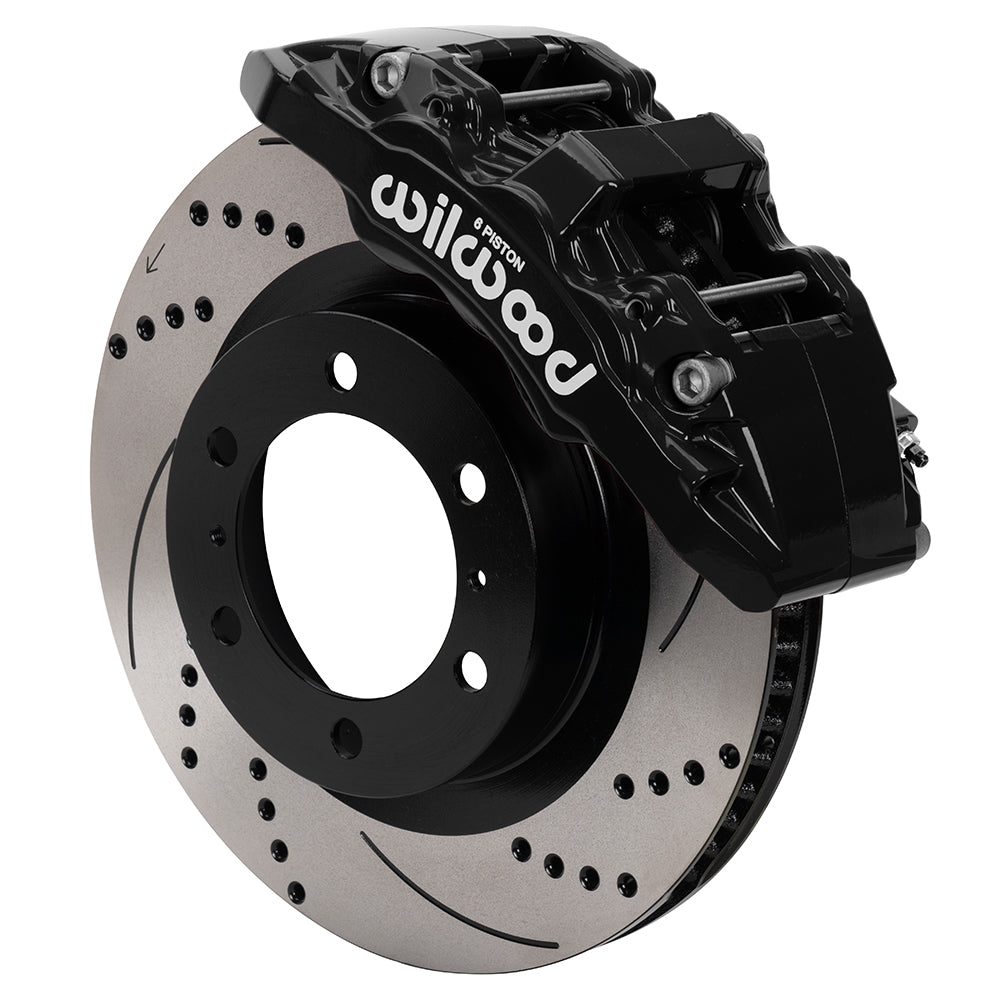

For Toyota 4Runner / Lexus GX460 (2015–2024), this front AERO6-DM kit uses black Wilwood calipers and srp drilled & slotted rotors. Its 6-piston hydraulic layout and 13.31-inch rotor diameter need to be checked against the actual hub, upright and wheel arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company makes disc-brake systems for street-performance, motorsport and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected around the demands of the complete braking installation.

Technical Details

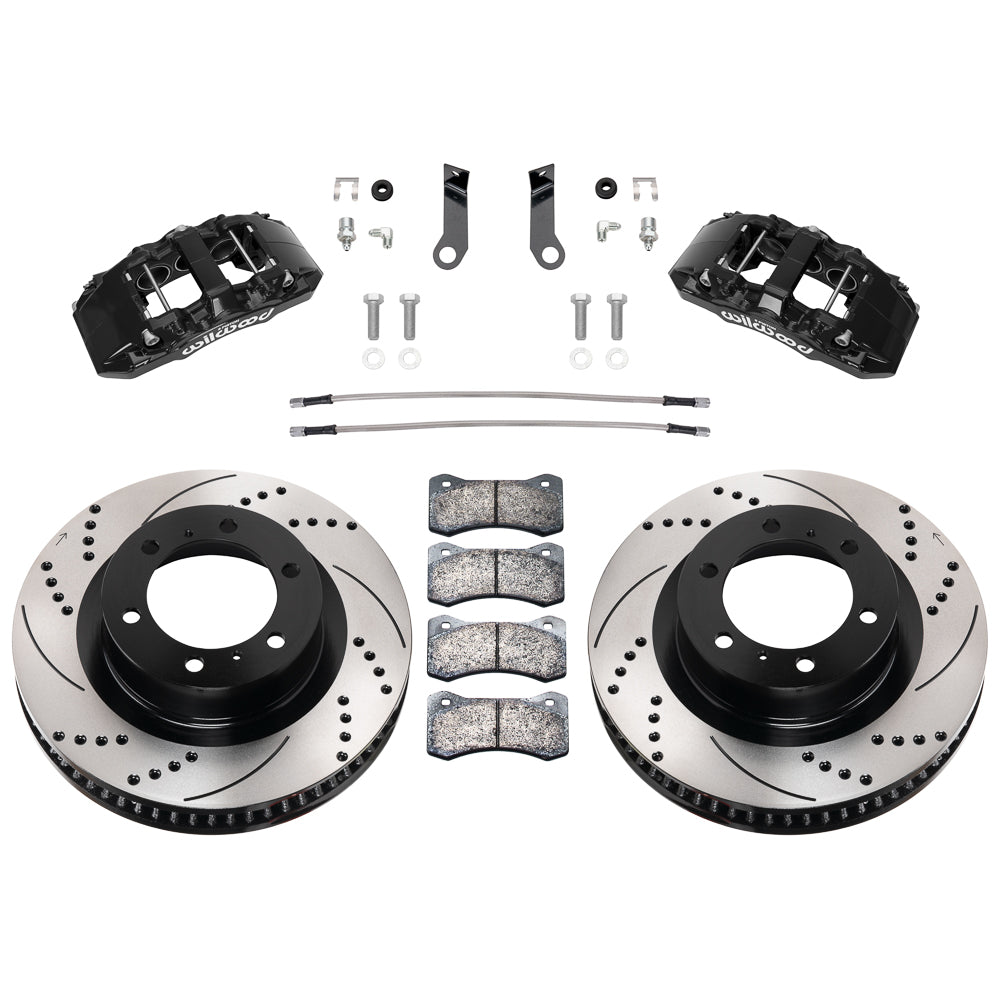

• Manufacturer part number: 140-17284-D; supplied as an axle kit.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.50, 1.50 inches; piston area 5.94 square inches; inlet 1/8-27 NPT.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Brake rotor size: 13.31-inch outside diameter × 1.26-inch thickness; vented friction section.
• Installation preparation: Dust-shield trimming/clearancing required as shown in the installation instructions.
• Rotor specification: Material: Iron; Type: SRP Drilled Rotor & Hat; Style: SRP Drilled & Slotted; Surface Finish: Black Electro Coat.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Service calipers: AERODM; 6 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.
• Rotor/hat mounting-hole pattern: 6 x 5.5 in; 6 x 139.7 mm; cataloged hole clearances 0.58 in; 14.73 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.

Fitment & Compatibility

Toyota 4Runner applications extend through 2024 and Lexus GX460 through 2023 in the table below; check the individual trim/year row. DS1551 requires clearancing the dust shield for caliper mounting. These are the later factory front-upright applications and their specified piston area, not every six-lug Toyota/Lexus hub. Compare the rotor register and 17-inch wheel template before installation.

Talk to PMB Performance about the installed brake arrangement if you need a fitment check. Over 20 years of parts experience informs our review of your VIN, photos and component dimensions.

Review Installation instructions for the complete installation and clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
