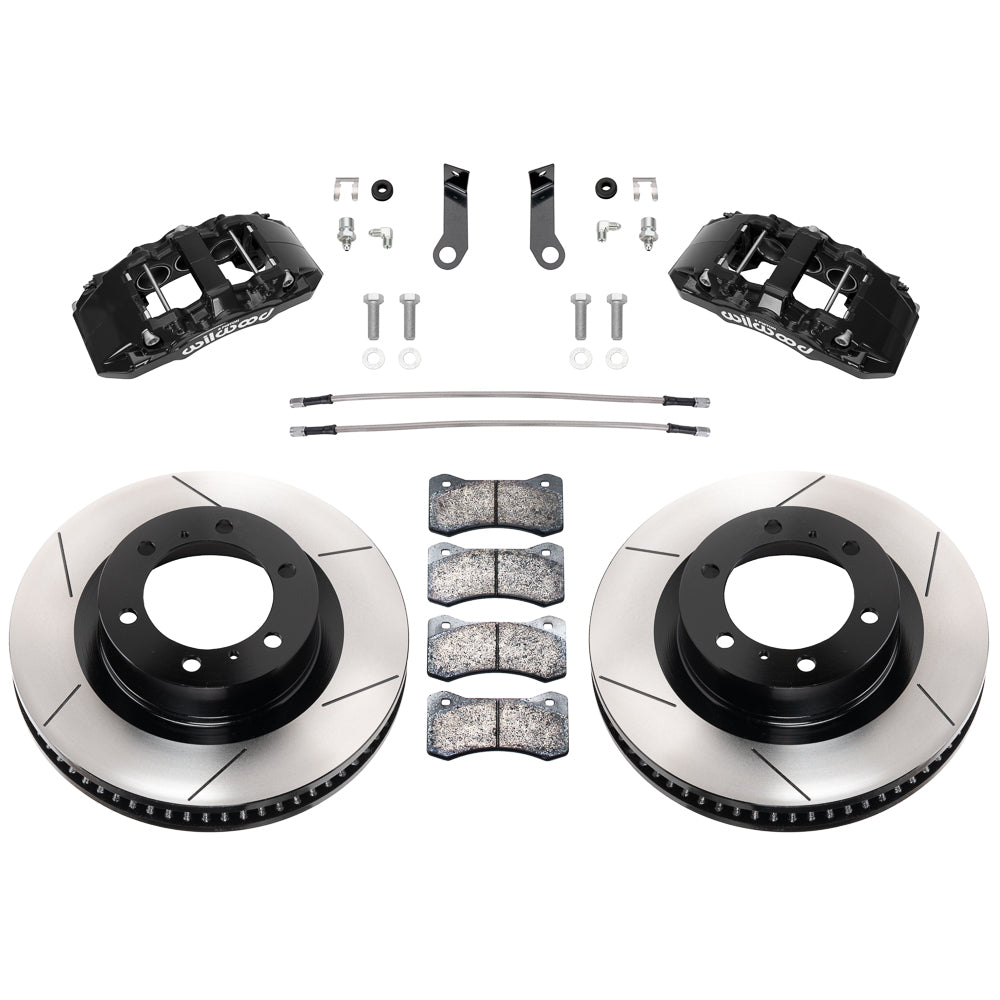

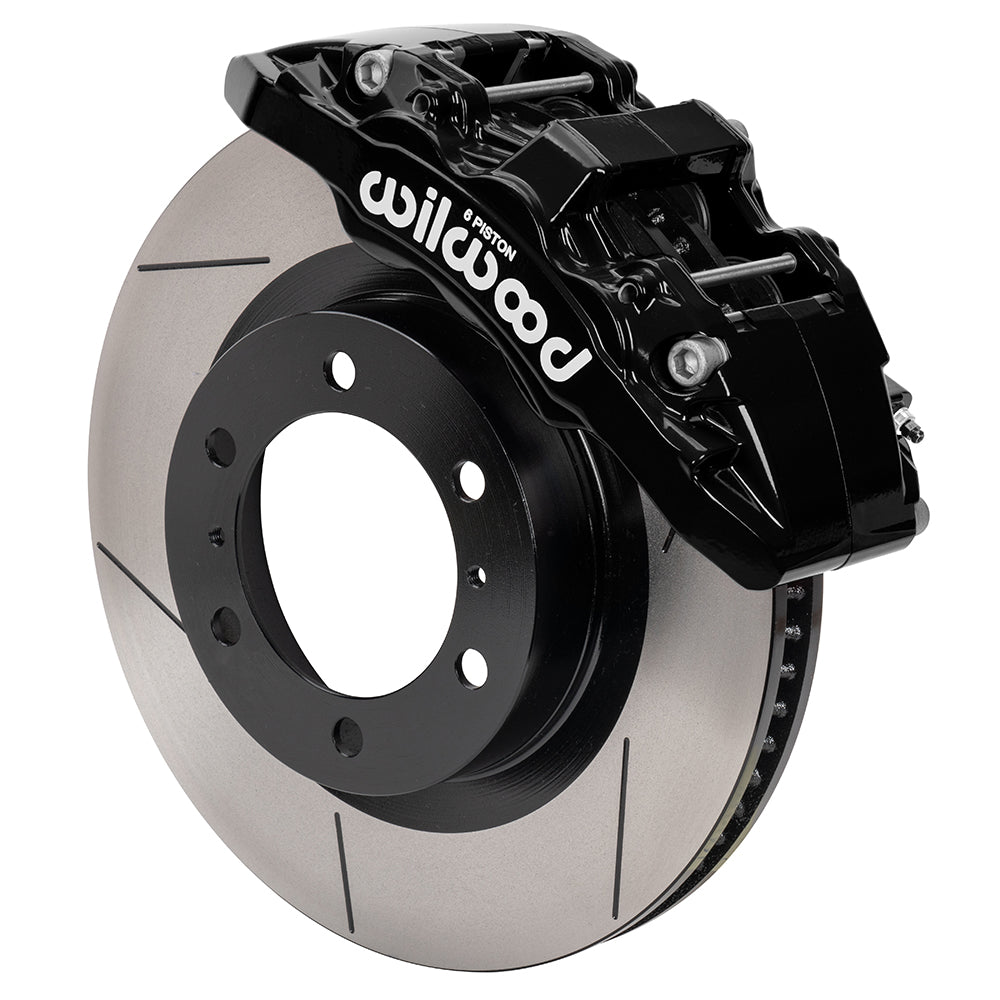

Wilwood Front AERO6-DM Brake Kit for Toyota 4Runner / Lexus GX460 (2015–2024), Black, 13.31-Inch GT Rotors

The 13.31 × 1.26-inch gt slotted rotors define this AERO6-DM front brake package for Toyota 4Runner / Lexus GX460 (2015–2024). Wilwood supplies black 6-piston calipers for the specified installation, with the rotor width and mounting hardware selected as a system. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc-brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support motorsport, street-performance and specialized uses, with each component chosen in relation to the complete brake system.

Technical Details

• Manufacturer part number: 140-17284; supplied as an axle kit.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.50, 1.50 inches; piston area 5.94 square inches; inlet 1/8-27 NPT.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Brake rotor size: 13.31-inch outside diameter × 1.26-inch thickness; vented friction section.
• Rotor/hat mounting-hole pattern: 6 x 5.5 in; 6 x 139.7 mm; cataloged hole clearances 0.58 in; 14.73 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Installation preparation: Dust-shield trimming/clearancing required as shown in the installation instructions.
• Service calipers: AERODM; 6 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.

Fitment & Compatibility

Toyota 4Runner applications extend through 2024 and Lexus GX460 through 2023 in the table below; check the individual trim/year row. DS1551 requires clearancing the dust shield for caliper mounting. These are the later factory front-upright applications and their specified piston area, not every six-lug Toyota/Lexus hub. Compare the rotor register and 17-inch wheel template before installation.

PMB Performance has over 20 years of parts experience. Share the VIN and any changes to the axle, upright or wheels before ordering if the brake configuration is uncertain.

Review Installation instructions for the complete installation and clearance requirements.
