Wilwood Front SRP Rotor & Black Caliper Kit for Jeep Wrangler JL / Wrangler / Gladiator (2018–2025)

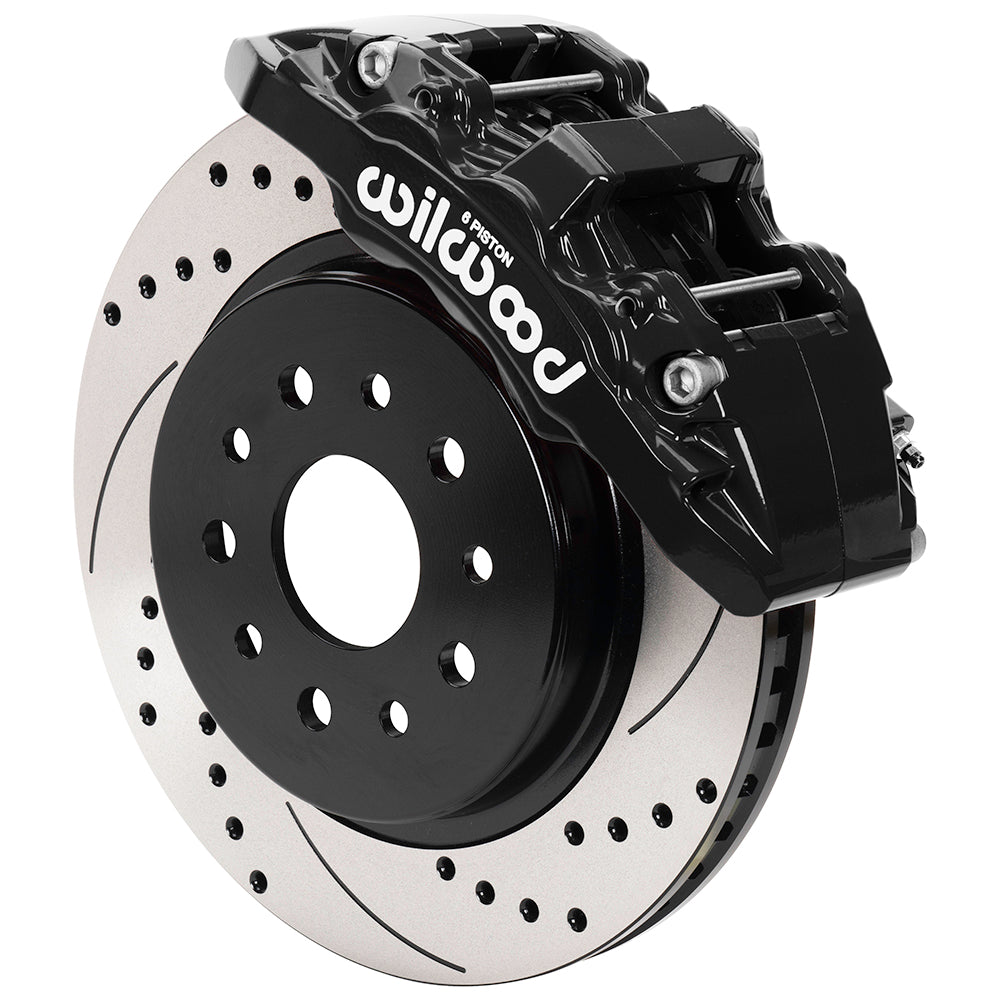

For Jeep Wrangler JL / Wrangler / Gladiator (2018–2025), this front AERO6-DM kit uses black Wilwood calipers and srp drilled & slotted rotors. Its 6-piston hydraulic layout and 13.38-inch rotor diameter need to be checked against the actual hub, upright and wheel arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company makes disc-brake systems for street-performance, motorsport and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected around the demands of the complete braking installation.

Technical Details

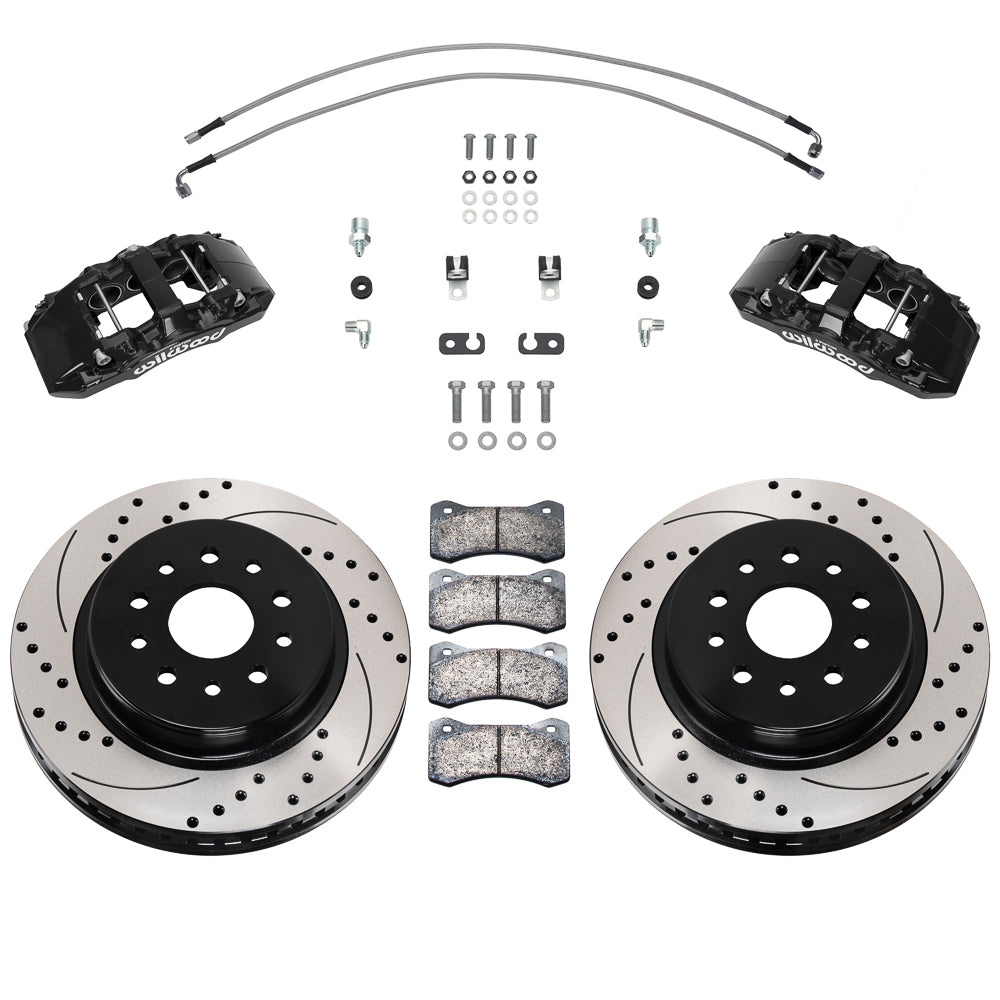

• Manufacturer part number: 140-17275-D; supplied as an axle kit.
• Service calipers: AERODM; 6 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Rotor specification: Material: Iron; Type: SRP Drilled Rotor & Hat; Style: SRP Drilled & Slotted; Surface Finish: Black Electro Coat.
• Rotor/hat mounting-hole pattern: 5 x 5 in; 5 x 127 mm; cataloged hole clearances 0.64 in; 16.26 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Brake rotor size: 13.38-inch outside diameter × 1.25-inch thickness; vented friction section.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.62, 1.62 inches; piston area 6.52 square inches; inlet 1/8-27 NPT.

Fitment & Compatibility

Use the table below for the 2018 Wrangler JL, 2019–2025 Wrangler JL applications and 2020–2025 Gladiator JT trims. This package has the JL/JT piston sizing and 33-inch front flexlines; it is separate from the JK kit. DS1550 calls for reusing the OE hose bracket, opening it and drilling a 0.250-inch hole for the new line arrangement. Check each trim, hose travel and wheel envelope.

Talk to PMB Performance about the installed brake arrangement if you need a fitment check. Over 20 years of parts experience informs our review of your VIN, photos and component dimensions.

Review Installation instructions for the complete installation and clearance requirements.
