Wilwood Front Six-Piston GT Brake Package, Red, Jeep Wrangler / Wrangler JK (2007–2018), Braided Lines Included

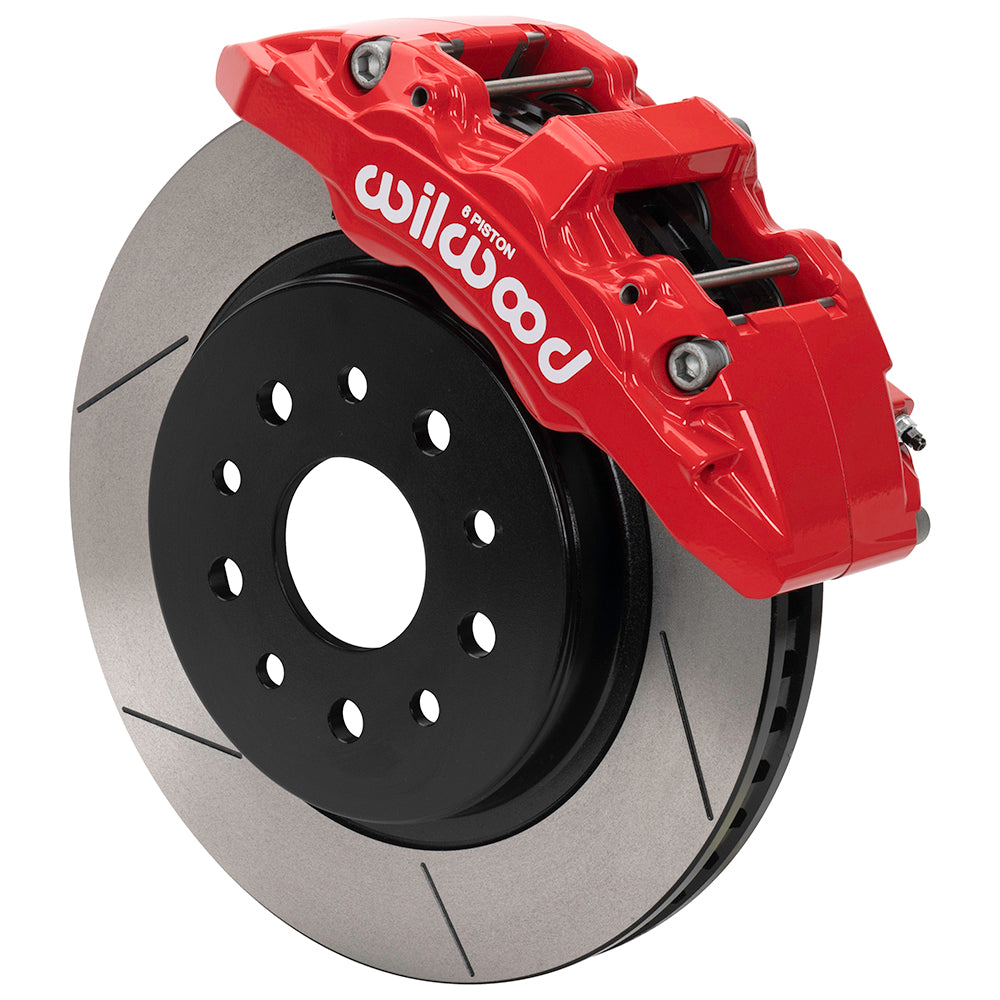

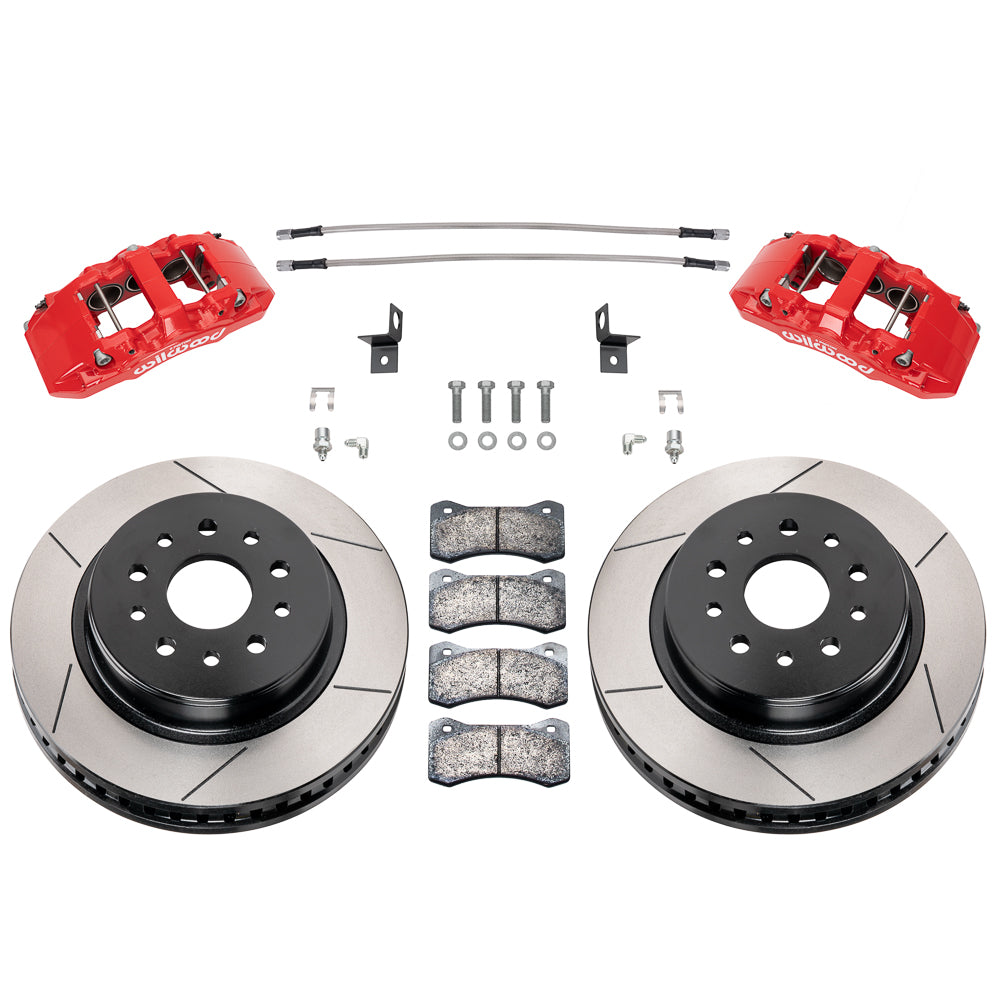

This Wilwood AERO6-DM front brake kit pairs red 6-piston calipers with 13.38-inch gt slotted brake rotors for Jeep Wrangler / Wrangler JK (2007–2018). The package must match the documented mounting arrangement and wheel clearance before the original brakes are removed. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc-brake systems and components serve motorsport, street-performance and specialized applications. The range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to suit the requirements of the complete system.

Technical Details

• Manufacturer part number: 140-17274-R; supplied as an axle kit.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Service calipers: AERODM; 6 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.
• Rotor/hat mounting-hole pattern: 5 x 5 in; 5 x 127 mm; cataloged hole clearances 0.64 in; 16.26 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Brake rotor size: 13.38-inch outside diameter × 1.25-inch thickness; vented friction section.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.38, 1.38 inches; piston area 5.40 square inches; inlet 1/8-27 NPT.
• Rotor specification: Material: Iron; Type: GTB Vented Rotor & Hat; Style: GT Slotted; Surface Finish: Black Electro Coat.

Fitment & Compatibility

The 2007–2017 Jeep Wrangler and 2018 Wrangler JK rows below refer to the JK generation, not the later JL. DS1550 uses the factory front upright and hub with the JK-specific hydraulic piston sizes and included 22-inch flexlines. Verify hose travel at full steering lock and suspension articulation, and check the complete 17-inch wheel-clearance drawing. Use the fitment table below to check the complete application and option notes.

A VIN helps identify the original specification; measured hardware matters after a conversion. PMB Performance draws on more than 20 years of experience when reviewing those details.

Review Installation instructions for the complete installation and clearance requirements.
