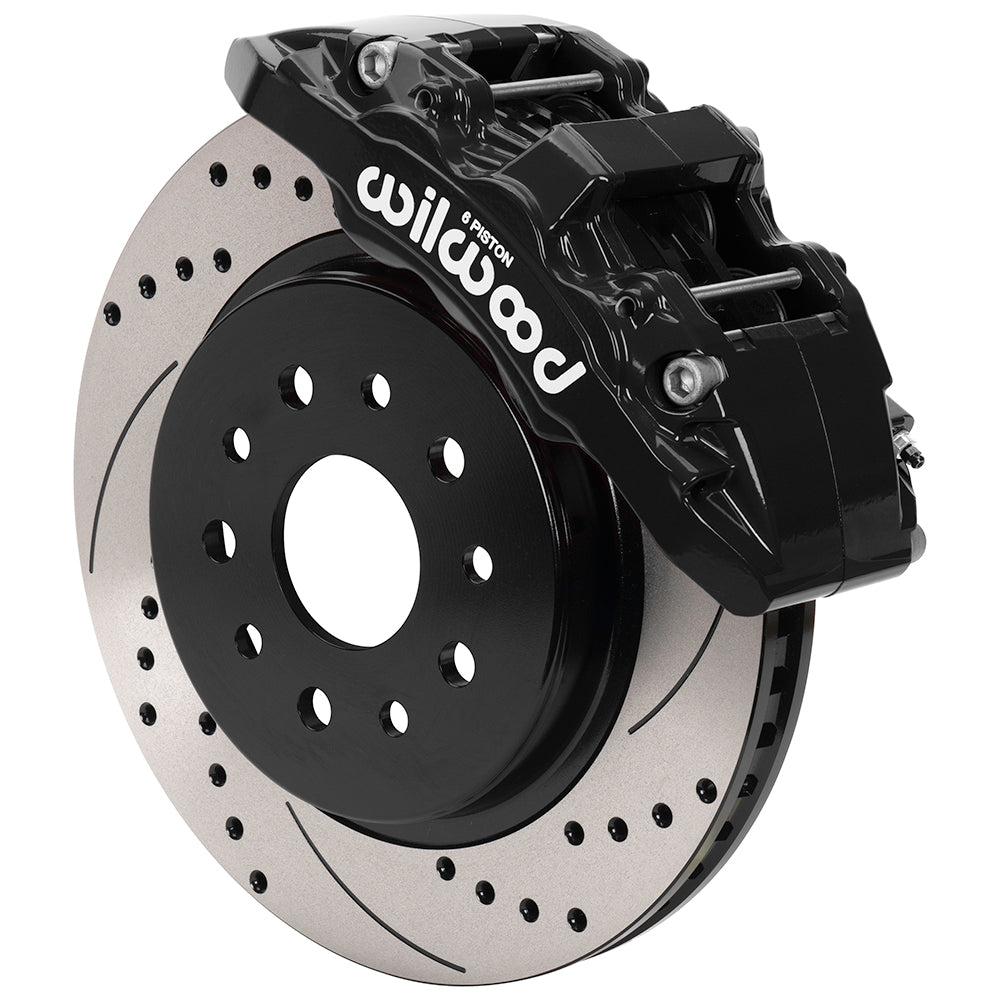

Wilwood Front 13.38-Inch Drilled Rotor & Black AERO6-DM Caliper Kit, Jeep Wrangler / Wrangler JK (2007–2018)

Wilwood configures this front AERO6-DM kit around 13.38 × 1.25-inch rotors for Jeep Wrangler / Wrangler JK (2007–2018). The selected black calipers use 6 service pistons each; matching the factory or specified conversion hardware is essential to the complete installation. Camarillo, California is home to Wilwood Engineering, founded in 1977 by Bill Wood. The company designs and manufactures disc-brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must match the complete braking system.

Technical Details

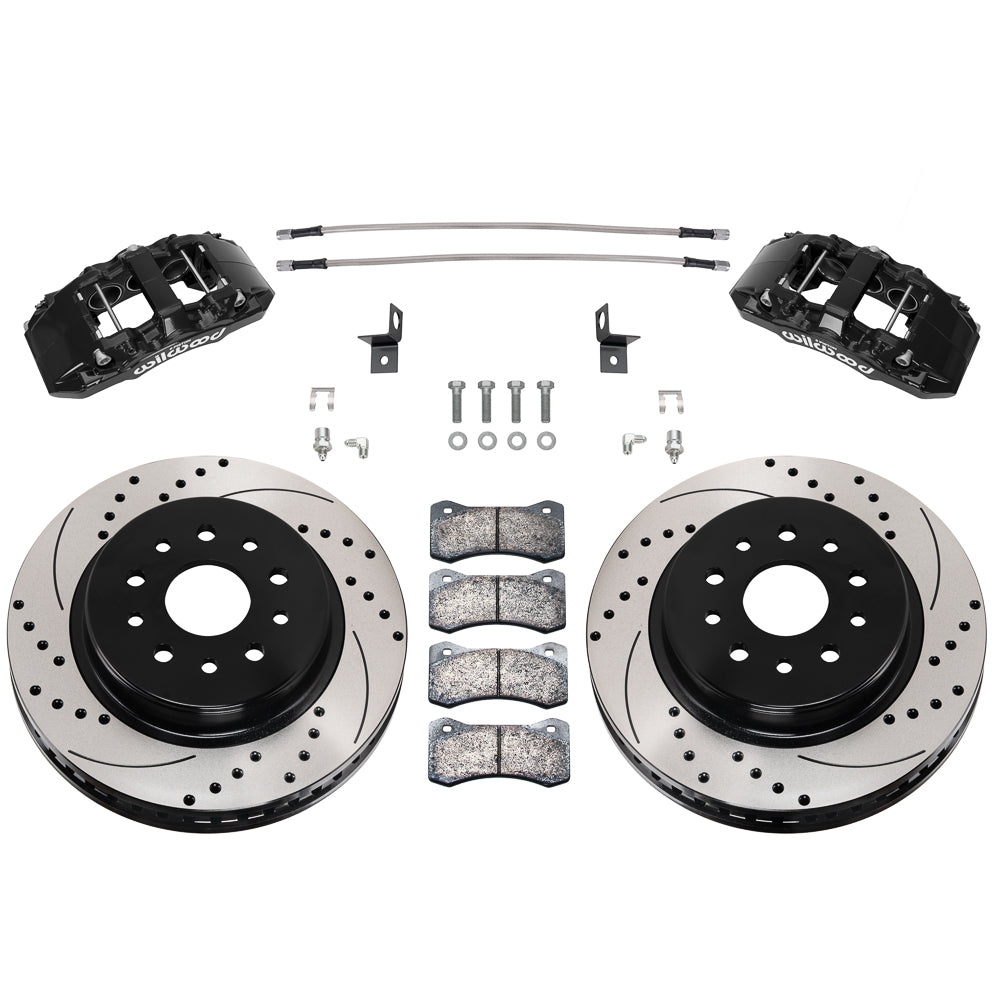

• Manufacturer part number: 140-17274-D; supplied as an axle kit.
• Supplied friction pads: BP-22 compound; match operating conditions to the intended use.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Rotor/hat mounting-hole pattern: 5 x 5 in; 5 x 127 mm; cataloged hole clearances 0.64 in; 16.26 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Service calipers: AERODM; 6 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.
• Brake rotor size: 13.38-inch outside diameter × 1.25-inch thickness; vented friction section.
• Hydraulic lines: Braided flexlines included; verify fittings, length and routing on the actual vehicle.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.38, 1.38 inches; piston area 5.40 square inches; inlet 1/8-27 NPT.
• Wheel envelope: 17-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Rotor specification: Material: Iron; Type: SRP Drilled Rotor & Hat; Style: SRP Drilled & Slotted; Surface Finish: Black Electro Coat.

Fitment & Compatibility

The 2007–2017 Jeep Wrangler and 2018 Wrangler JK rows below refer to the JK generation, not the later JL. DS1550 uses the factory front upright and hub with the JK-specific hydraulic piston sizes and included 22-inch flexlines. Verify hose travel at full steering lock and suspension articulation, and check the complete 17-inch wheel-clearance drawing. Use the fitment table below to check the complete application and option notes.

PMB Performance brings more than 20 years of parts experience to fitment questions. Send your VIN and details of the installed brakes so we can help check the application.

Review Installation instructions for the complete installation and clearance requirements.
