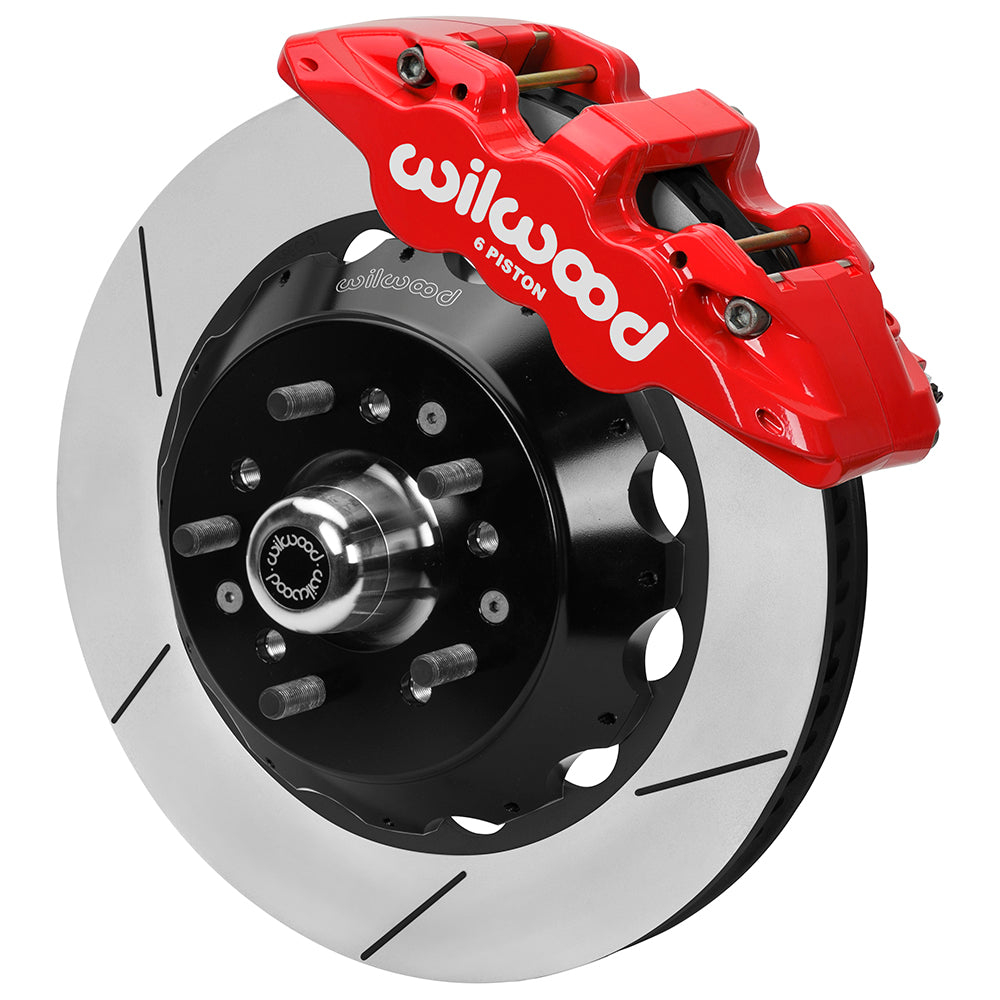

Wilwood Front Six-Piston Hub Brake Package, Red, 14.00-Inch GT Rotors, No Limit Engineering ZG

Convert the documented No Limit Engineering ZG Spindles front brake arrangement with Wilwood AERO6 calipers and gt slotted rotors. This selection has red calipers, 6 pistons per service caliper and 14.00-inch rotor diameter, with fit determined by the installed hardware. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc-brake components and systems. Bill Wood founded the company in 1977. Motorsport, specialized applications and street-performance vehicles use its range of calipers, brake rotors, master cylinders, valves, fittings and brake lines, with component selection matched to the finished brake system.

Technical Details

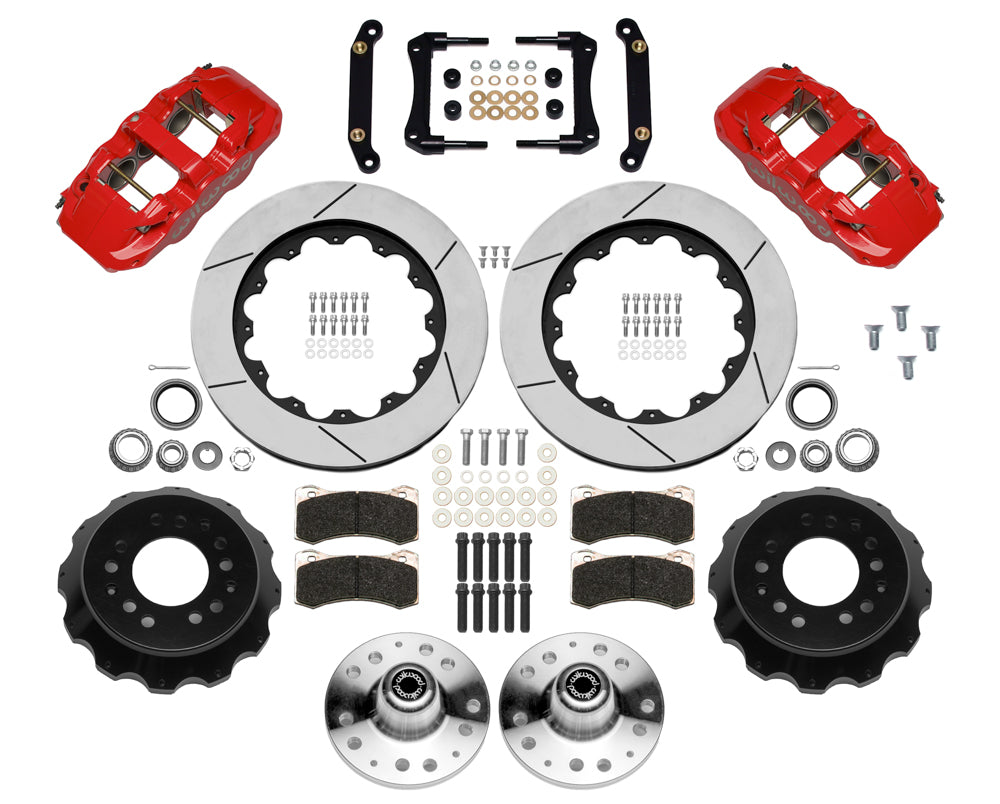

• Manufacturer part number: 140-17149-R; supplied as an axle kit.
• Hardware and retained components: Mounting hardware supplied; wheel hubs included; spindles, master cylinder and brake booster are not included.
• Supplied friction pads: BP-20 compound; match operating conditions to the intended use.
• Spindle modification: The No Limit ZG spindle ears must be removed and two holes drilled and tapped per DS1542; qualified machining required.
• Wheel envelope: 18-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Rotor hats: Aluminum big brake hat - flared bell; Black E-Coat; hat offset 1.470 inches. Hat offset is distinct from axle offset.
• Hydraulic lines: Hydraulic flexlines and fittings are not included; select compatible lines for the complete installation.
• Brake rotor size: 14.00-inch outside diameter × 1.25-inch thickness; vented friction section.
• Included wheel hubs: 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm wheel patterns; 1/2-20 studs. Check the selected pattern and bearing arrangement before assembly.
• Rotor specification: Material: Spec-37 Iron; Type: GT 72 Curved Vane; Style: GT Slotted; Surface Finish: Black Electro Coat.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.38, 1.38 inches; piston area 5.40 square inches; inlet 1/8-27 NPT.
• Service calipers: AERO6; 6 pistons per caliper; Red Powder Coat; radial mounting; stainless pistons.

Fitment & Compatibility

For No Limit Engineering ZG spindles only, DS1542 requires removal of the two interfering spindle ears plus drilling and tapping two holes. Both spindles need the specified qualified machining before brake assembly. Check wheel stud location, bearing adjustment and the full 18-inch clearance diagram. The supplied hubs determine the available wheel patterns; the spindle itself is not included.

Send PMB Performance the VIN and the relevant brake measurements for help with selection. We have over 20 years of experience working through parts and compatibility details.

Review Installation instructions for the complete installation and clearance requirements.
