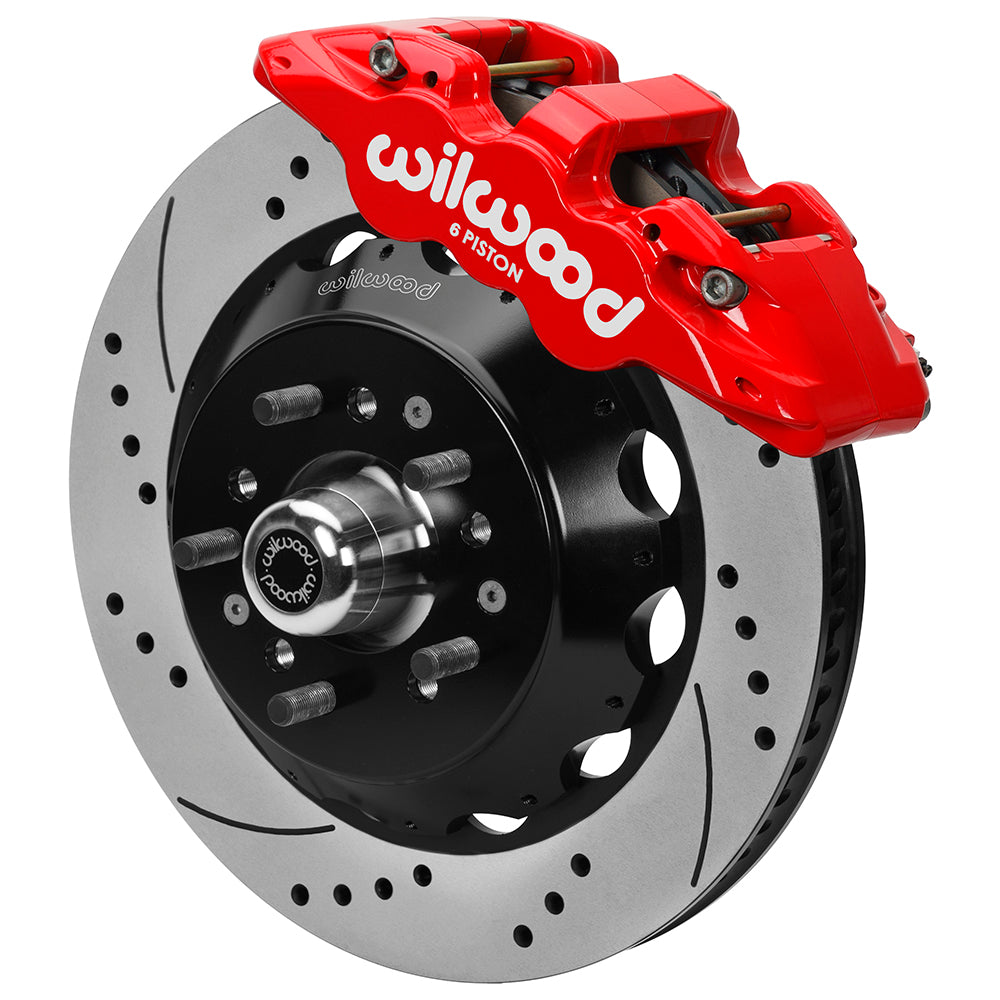

Wilwood Front AERO6 Conversion, Red Calipers & Drilled Rotors with Hubs for No Limit ZG Spindles

Red AERO6 calipers provide the hydraulic service braking in this Wilwood front conversion for No Limit Engineering ZG Spindles. They work with 14.00 × 1.25-inch srp drilled & slotted rotors; the vehicle designation must be considered together with the mounting details below. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. Its work covers the design and manufacture of disc-brake systems and components for specialized vehicles, motorsport and street-performance use. The product range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines; compatibility depends on the complete system.

Technical Details

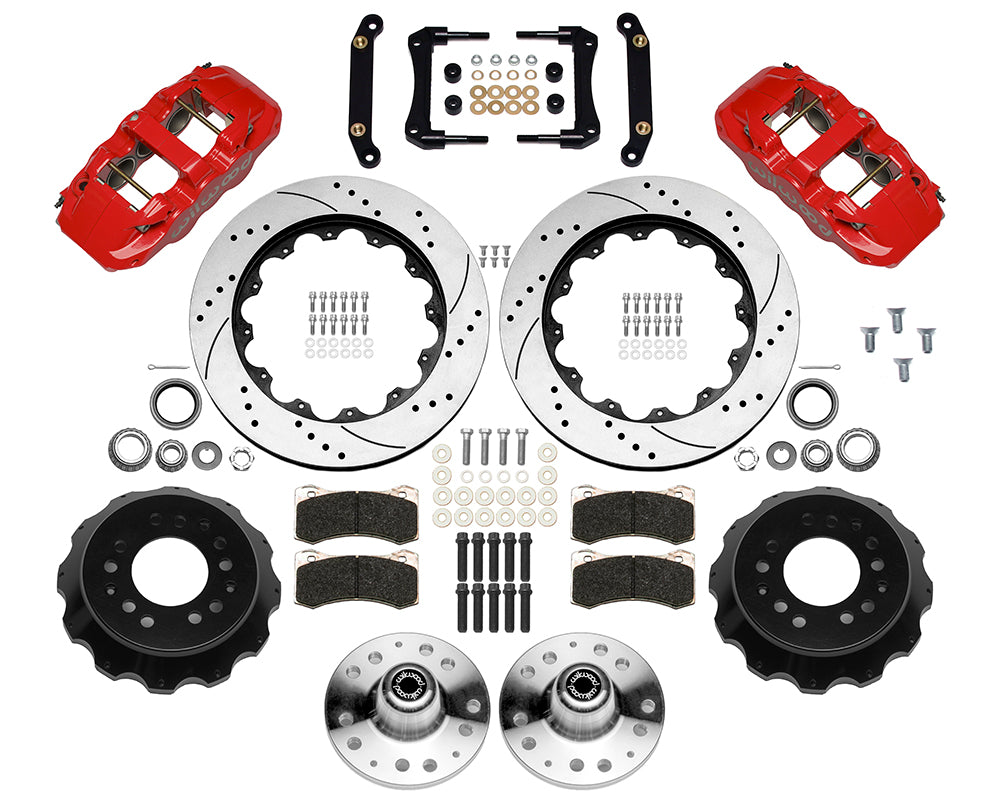

• Manufacturer part number: 140-17149-DR; supplied as an axle kit.
• Spindle modification: The No Limit ZG spindle ears must be removed and two holes drilled and tapped per DS1542; qualified machining required.
• Hydraulic sizing: cataloged bore sizes 1.75, 1.38, 1.38 inches; piston area 5.40 square inches; inlet 1/8-27 NPT.
• Rotor specification: Material: Spec-37 Iron; Type: SRP Drilled Rotor; Style: SRP Drilled & Slotted; Surface Finish: Black Electro Coat.
• Supplied friction pads: BP-10 compound; match operating conditions to the intended use.
• Included wheel hubs: 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm wheel patterns; 1/2-20 studs. Check the selected pattern and bearing arrangement before assembly.
• Brake rotor size: 14.00-inch outside diameter × 1.25-inch thickness; vented friction section.
• Service calipers: AERO6; 6 pistons per caliper; Red Powder Coat; radial mounting; stainless pistons.
• Wheel envelope: 18-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Rotor hats: Aluminum big brake hat - flared bell; Black E-Coat; hat offset 1.470 inches. Hat offset is distinct from axle offset.
• Hydraulic lines: Hydraulic flexlines and fittings are not included; select compatible lines for the complete installation.
• Hardware and retained components: Mounting hardware supplied; wheel hubs included; spindles, master cylinder and brake booster are not included.

Fitment & Compatibility

For No Limit Engineering ZG spindles only, DS1542 requires removal of the two interfering spindle ears plus drilling and tapping two holes. Both spindles need the specified qualified machining before brake assembly. Check wheel stud location, bearing adjustment and the full 18-inch clearance diagram. The supplied hubs determine the available wheel patterns; the spindle itself is not included.

With more than 20 years of parts experience, PMB Performance can help compare your VIN and installed hardware with the required configuration. Include any suspension, wheel or axle changes.

Review Installation instructions for the complete installation and clearance requirements.
