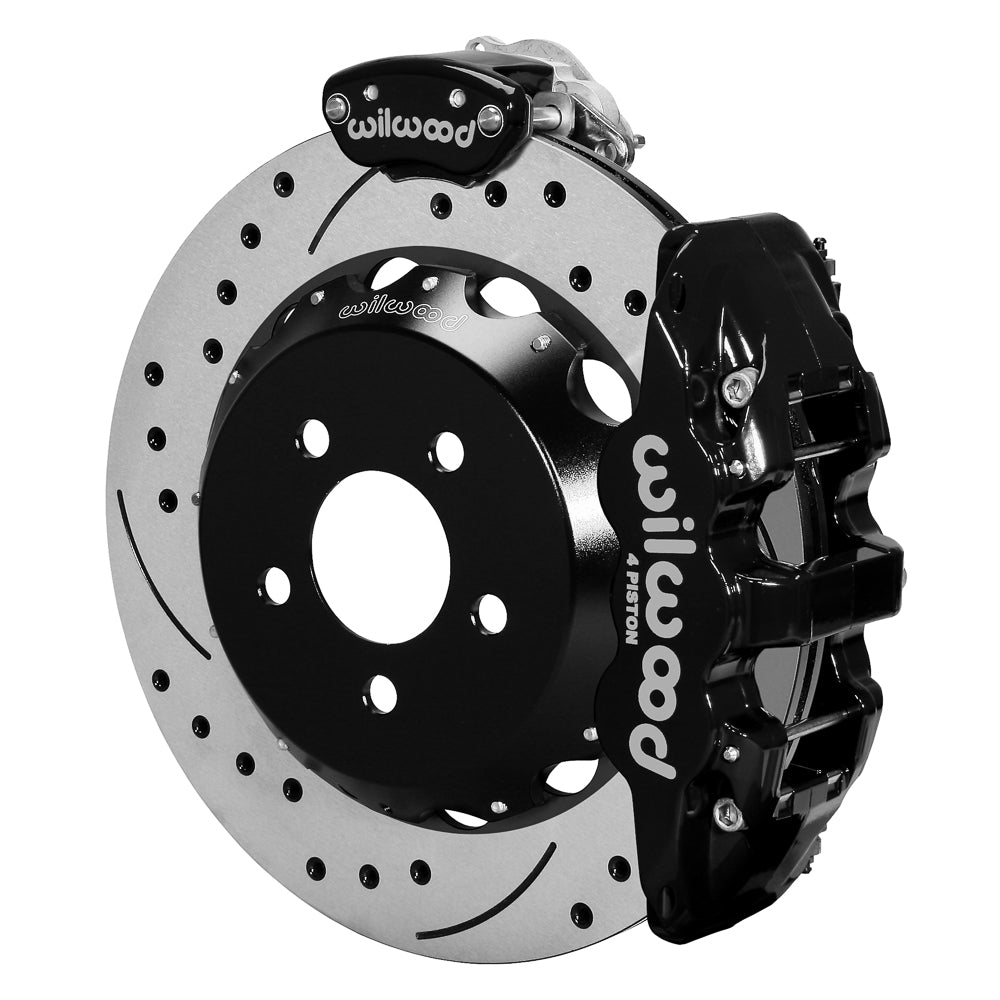

Wilwood Rear 14.00-Inch SRP Rotor & AERO4/MC4 Caliper Kit, Black, Custom C7-Upright Chassis

Wilwood configures this rear AERO4/MC4 kit around 14.00 × 1.10-inch rotors for C7 Front Uprights on Custom Rear Chassis. The selected black calipers use 4 service pistons each; matching the factory or specified conversion hardware is essential to the complete installation. Camarillo, California is home to Wilwood Engineering, founded in 1977 by Bill Wood. The company designs and manufactures disc-brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must match the complete braking system.

Technical Details

• Manufacturer part number: 140-17142-D; supplied as an axle kit.
• Parking brake: Separate MC4 mechanical parking calipers supplied; arrange suitable cable operation.
• Hydraulic lines: Hydraulic flexlines and fittings are not included; select compatible lines for the complete installation.
• Wheel envelope: 18-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Rotor specification: Material: Spec-37 Iron; Type: SRP Drilled Rotor; Style: SRP Drilled & Slotted; Surface Finish: Black Electro Coat.
• Supplied friction pads: BP-10 compound; match operating conditions to the intended use.
• Brake rotor size: 14.00-inch outside diameter × 1.10-inch thickness; vented friction section.
• Rotor/hat mounting-hole pattern: 5 X 4.5 in; 5 X 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; cataloged hole clearances 0.580 in; 14.73 mm; 0.520 in; 13.21 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.

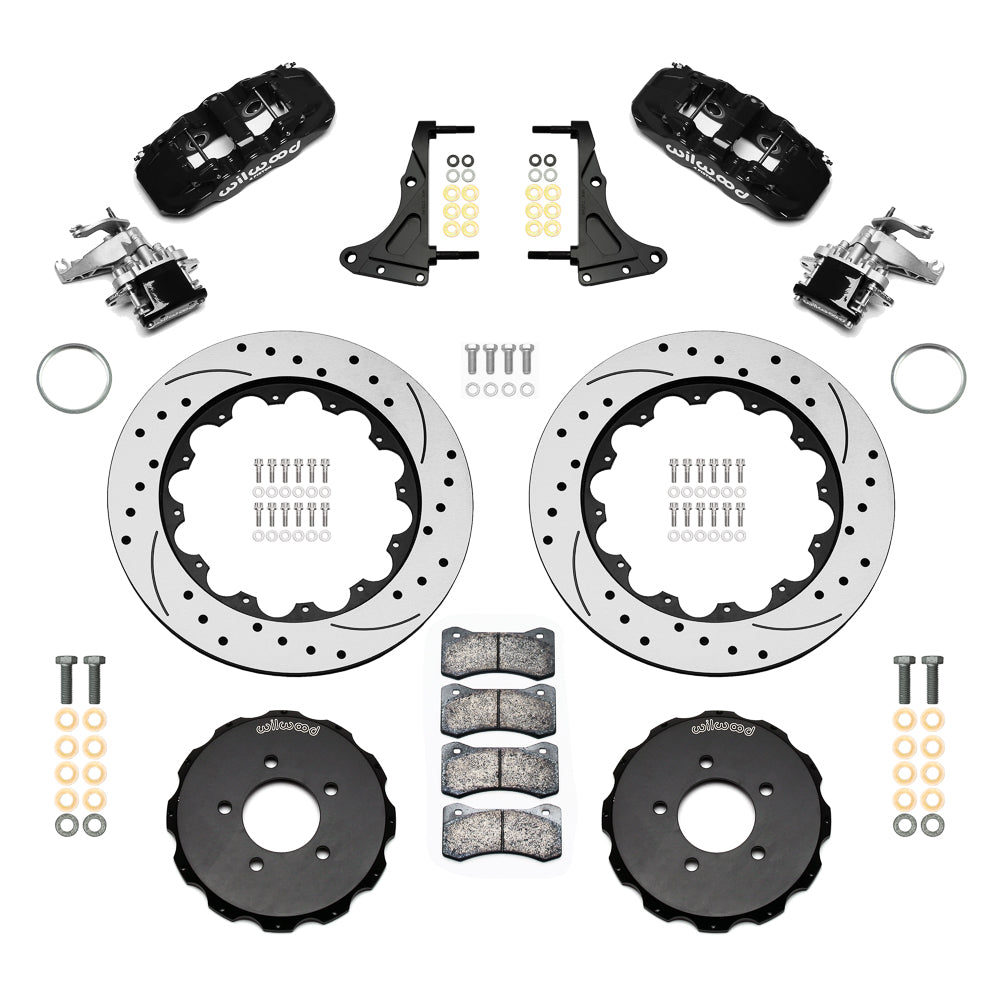

• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Rotor hats: Aluminum big brake hat - flared bell; Black E-Coat; hat offset 0.540 inches. Hat offset is distinct from axle offset.
• Service calipers: AERO4; 4 pistons per caliper; Black Powder Coat; radial mounting; stainless pistons.
• Hydraulic sizing: cataloged bore sizes 1.12, 1.12 inches; piston area 1.98 square inches; inlet 1/8-27 NPT.

Fitment & Compatibility

DS1528 documents a C7 Corvette front upright used at the rear of a custom chassis. Verify the Roadster Shop Fast Track IRS arrangement and exact upright, hub register, stud pattern and 18-inch wheel clearance; this is not a stock C7 rear-brake replacement. The MC4 is a separate mechanically actuated parking caliper. Plan compatible cable actuation and separate hydraulic hoses.

PMB Performance brings more than 20 years of parts experience to fitment questions. Send your VIN and details of the installed brakes so we can help check the application.

Review Installation instructions for the complete installation and clearance requirements.
