Product details

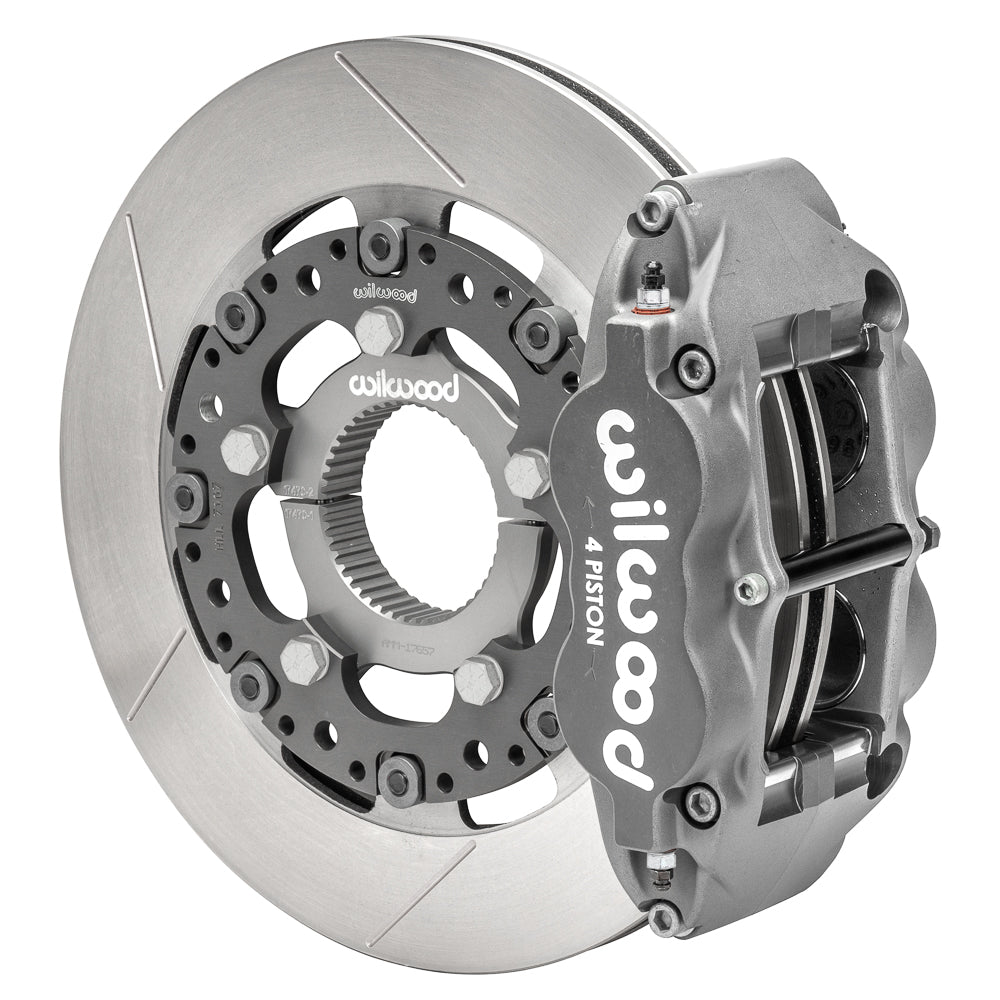

This Wilwood Superlite 4R rear inboard sprint brake kit places one four-piston radial-mount caliper over a dynamically mounted 12.19 × 0.81-inch GT rotor. It is a race-only assembly for the specified side-bell and 46-spline axle interface, with a splined rotor adapter rather than a road-wheel hub. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc-brake components and systems. Bill Wood founded the company in 1977. Motorsport, specialized applications and street-performance vehicles use its range of calipers, brake rotors, master cylinders, valves, fittings and brake lines, with component selection matched to the finished brake system.
Technical Details

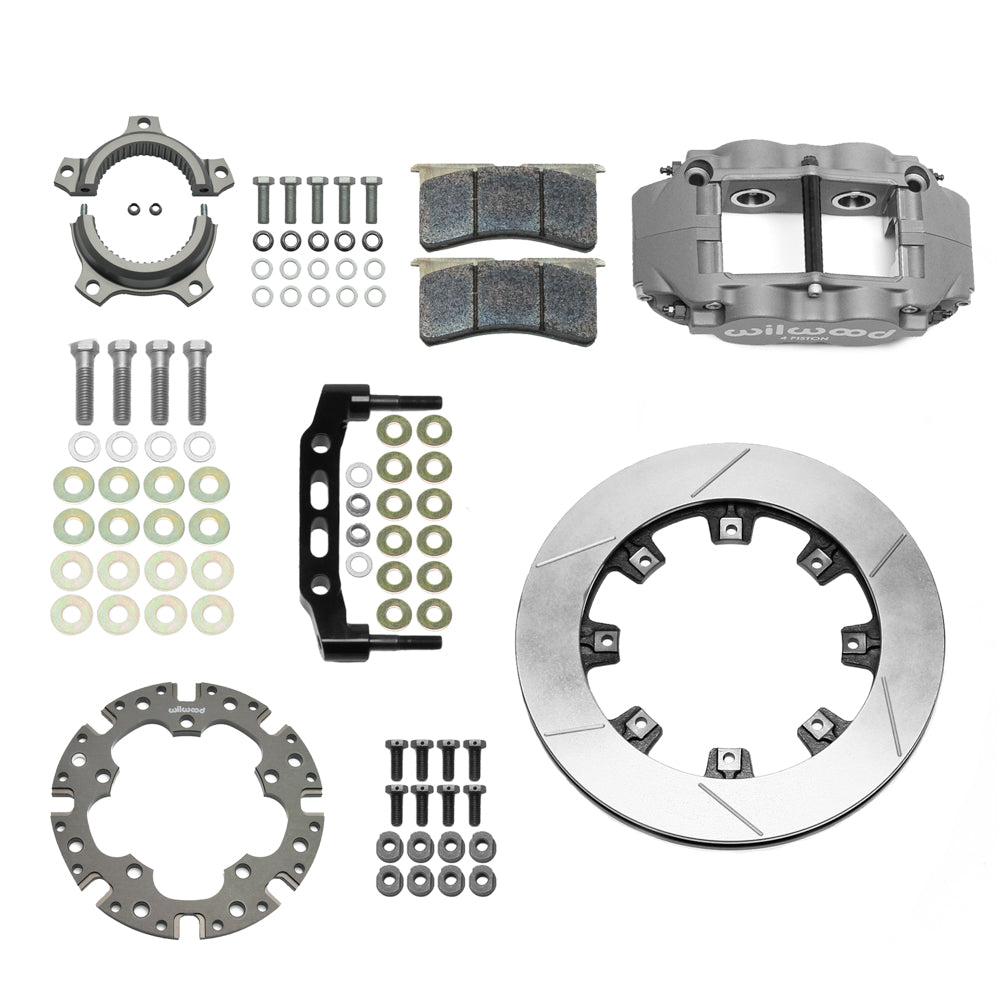

- Manufacturer part number: 140-17141; one inboard racing brake assembly.
- Axle and bell interface: 3.00-inch × 46-spline axle and 3.50-inch mounting centers; dynamic rotor attachment. The splined adapter is not a wheel bolt circle.
- Brake rotor size: 12.19-inch outside diameter × 0.81-inch thickness; vented friction section.
- Hydraulic lines: Hydraulic flexlines and fittings are not included; select compatible lines for the complete installation.
- Hydraulic sizing: cataloged bore sizes 1.88, 1.75 inches; piston area 5.18 square inches.
- Wheel envelope: Use the inboard mounting and caliper envelope in the installation drawing; this is not a wheel-diameter specification.
- Service calipers: Forged Superlite 4 Radial Mount; 4 pistons per caliper; Type III Anodize; radial mounting; stainless pistons.
- Hardware and retained components: Mounting hardware supplied; splined inboard rotor adapter supplied; spindles, master cylinder and brake booster are not included.
- Rotor specification: Material: Spec-37 Iron; Type: GT 36 Curved Vane; Style: GT Slotted; Surface Finish: Plain.
- Supplied friction pads: BP-40 compound; match operating conditions to the intended use.
Fitment & Compatibility
This is a rear inboard sprint-car racing installation, not an outboard wheel-brake conversion. DS1539 specifies 3.50-inch mounting centers and a 3.00-inch × 46-spline axle. Match the existing side bell and dynamic rotor attachment to the assembly drawing; the splined adapter is not a wheel hub or wheel bolt pattern. BP-40 pads and the racing configuration are unsuitable for ordinary street use. This is a racing selection; review the pad operating range and maintenance requirements before use.
Send PMB Performance the VIN and the relevant brake measurements for help with selection. We have over 20 years of experience working through parts and compatibility details.
Review Installation instructions for the complete installation and clearance requirements.
