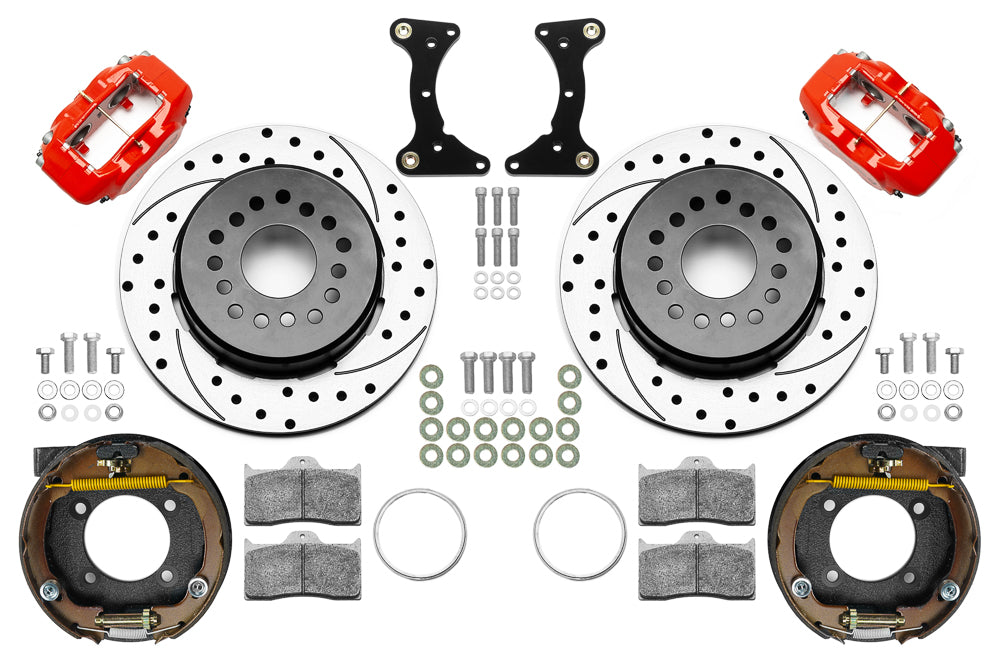

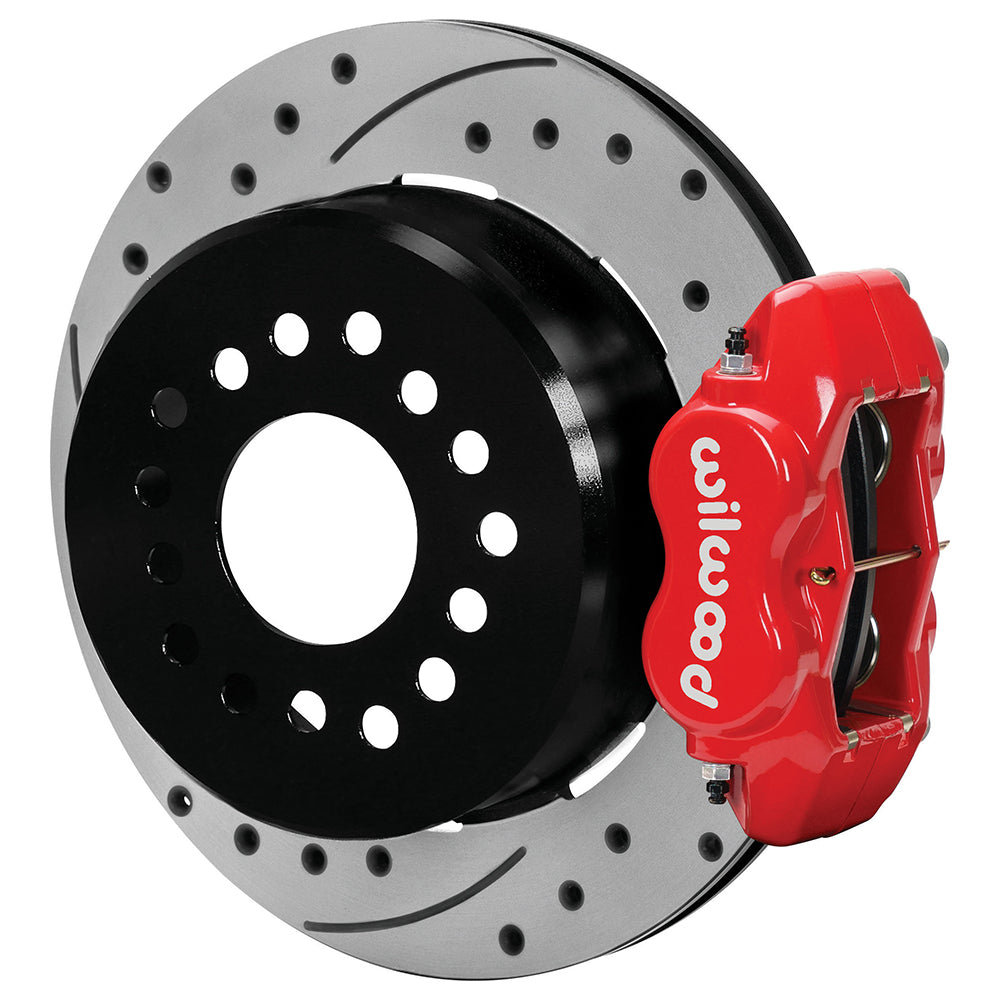

Wilwood Rear Dynalite Conversion, Red Calipers & SRP Parking Rotors, GM G-Body 2.62-Inch Axle Offset

For GM G-Body Flange, this rear Dynalite kit uses red Wilwood calipers and srp drilled & slotted rotors. Its 4-piston hydraulic layout and 12.19-inch rotor diameter need to be checked against the actual hub, upright and wheel arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company makes disc-brake systems for street-performance, motorsport and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected around the demands of the complete braking installation.

Technical Details

• Manufacturer part number: 140-17121-DR; supplied as an axle kit.
• Housing-flange requirement: G-Body flange; 2.62-inch axle offset, measured using the manufacturer worksheet.
• Rotor specification: Material: Iron; Type: SRP Drilled Rotor & Hat; Style: SRP Drilled & Slotted; Surface Finish: Black Electro Coat.
• Rotor/hat mounting-hole pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; cataloged hole clearances 0.52 in; 13.21 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Hydraulic lines: Hydraulic flexlines and fittings are not included; select compatible lines for the complete installation.
• Service calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat; lug mounting; stainless pistons.
• Parking brake: Internal shoe parking brake supplied; cables, cable hardware and adapters are separate.
• Hydraulic sizing: cataloged bore sizes 1.38, 1.38 inches; piston area 3.00 square inches; inlet 1/8-27 NPT.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Machining prerequisite: Housing-flange material removal and two drilled holes required; follow the specific drawing and arrange qualified machine-shop work.
• Supplied friction pads: BP-10 compound; match operating conditions to the intended use.
• Brake rotor size: 12.19-inch outside diameter × 0.81-inch thickness; vented friction section.
• Wheel envelope: 15-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.

Fitment & Compatibility

A G-Body axle flange and 2.62-inch measured axle offset are the mounting prerequisites for this rear conversion. The machining shown in DS1547 includes removal of interfering flange material and drilling two holes; arrange qualified machine-shop work. The parking-brake cable connection requires separate cables, hardware and adapters. Match the axle register, stud diameter and wheel envelope to the 12.19-inch rotor package.

Talk to PMB Performance about the installed brake arrangement if you need a fitment check. Over 20 years of parts experience informs our review of your VIN, photos and component dimensions.

Review Installation instructions, Technical bulletin for the complete installation and clearance requirements.
