Wilwood Rear Drilled 12.19-Inch Rotor & Dynalite Caliper Kit, G-Body 2.62-Inch Flange, Black

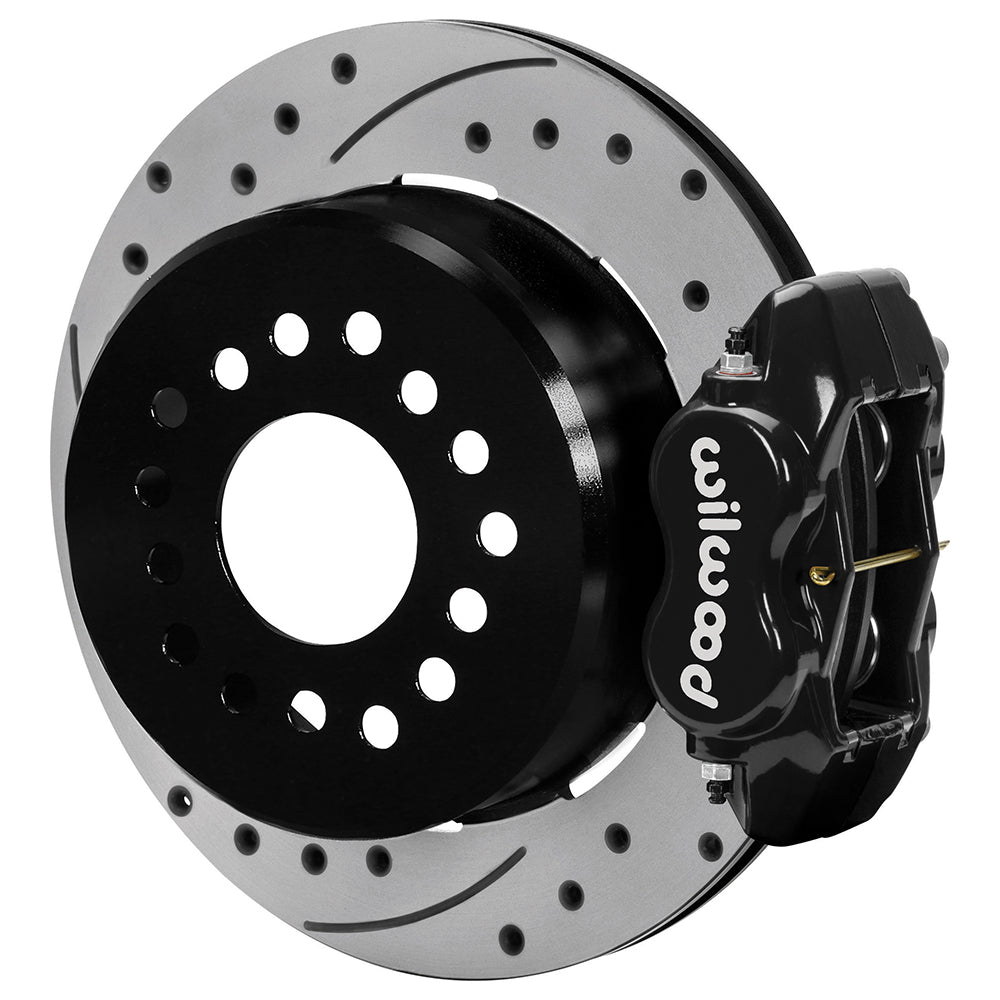

The 12.19 × 0.81-inch srp drilled & slotted rotors define this Dynalite rear brake package for GM G-Body Flange. Wilwood supplies black 4-piston calipers for the specified installation, with the rotor width and mounting hardware selected as a system. Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc-brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support motorsport, street-performance and specialized uses, with each component chosen in relation to the complete brake system.

Technical Details

• Manufacturer part number: 140-17121-D; supplied as an axle kit.
• Housing-flange requirement: G-Body flange; 2.62-inch axle offset, measured using the manufacturer worksheet.
• Machining prerequisite: Housing-flange material removal and two drilled holes required; follow the specific drawing and arrange qualified machine-shop work.
• Hydraulic sizing: cataloged bore sizes 1.38, 1.38 inches; piston area 3.00 square inches; inlet 1/8-27 NPT.
• Hydraulic lines: Hydraulic flexlines and fittings are not included; select compatible lines for the complete installation.
• Parking brake: Internal shoe parking brake supplied; cables, cable hardware and adapters are separate.
• Brake rotor size: 12.19-inch outside diameter × 0.81-inch thickness; vented friction section.
• Wheel envelope: 15-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Service calipers: Forged Dynalite Internal; 4 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.
• Rotor specification: Material: Iron; Type: SRP Drilled Rotor & Hat; Style: SRP Drilled & Slotted; Surface Finish: Black Electro Coat.
• Supplied friction pads: BP-10 compound; match operating conditions to the intended use.

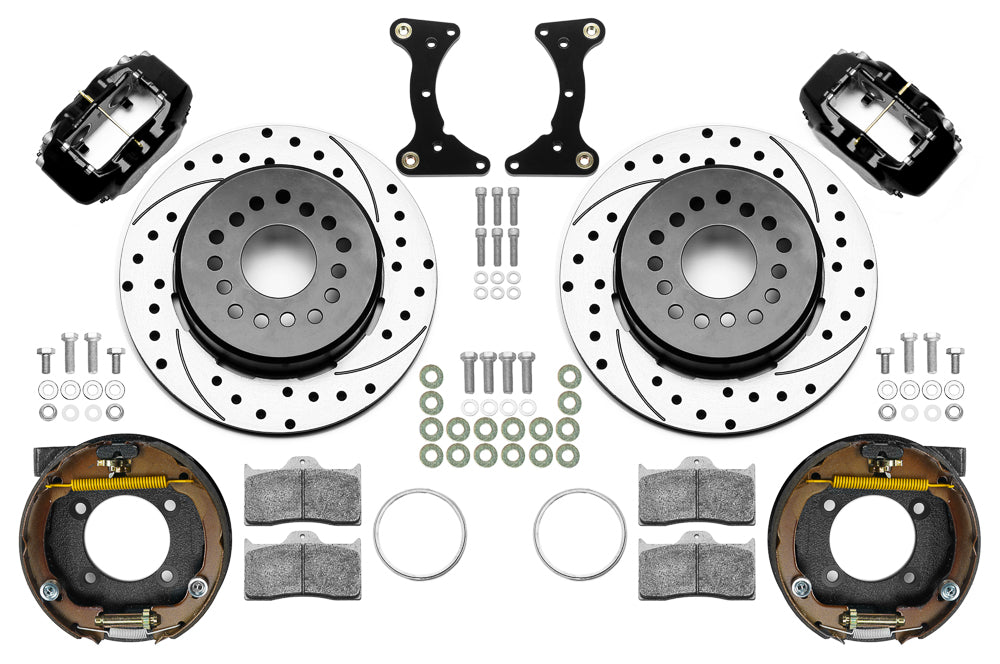

• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Rotor/hat mounting-hole pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; cataloged hole clearances 0.52 in; 13.21 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.

Fitment & Compatibility

A G-Body axle flange and 2.62-inch measured axle offset are the mounting prerequisites for this rear conversion. The machining shown in DS1547 includes removal of interfering flange material and drilling two holes; arrange qualified machine-shop work. The parking-brake cable connection requires separate cables, hardware and adapters. Match the axle register, stud diameter and wheel envelope to the 12.19-inch rotor package.

PMB Performance has over 20 years of parts experience. Share the VIN and any changes to the axle, upright or wheels before ordering if the brake configuration is uncertain.

Review Installation instructions, Technical bulletin for the complete installation and clearance requirements.
