Wilwood Rear Dynapro Low-Profile Parking Brake Kit, Black, 11.00-Inch Plain Rotors, GM G-Body 2.62-Inch Axle Offset

Convert the documented GM G-Body Axle Flange rear brake arrangement with Wilwood Dynapro Low-Profile calipers and plain face rotors. This selection has black calipers, 4 pistons per service caliper and 11.00-inch rotor diameter, with fit determined by the installed hardware. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc-brake components and systems. Bill Wood founded the company in 1977. Motorsport, specialized applications and street-performance vehicles use its range of calipers, brake rotors, master cylinders, valves, fittings and brake lines, with component selection matched to the finished brake system.

Technical Details

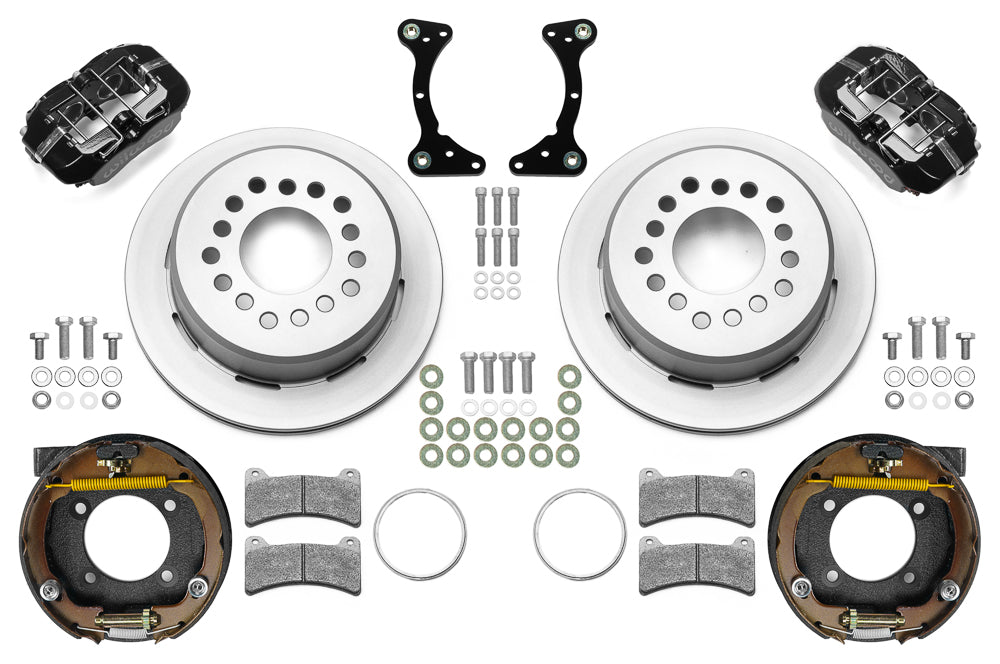

• Manufacturer part number: 140-17120; supplied as an axle kit.
• Supplied friction pads: BP-10 compound; match operating conditions to the intended use.

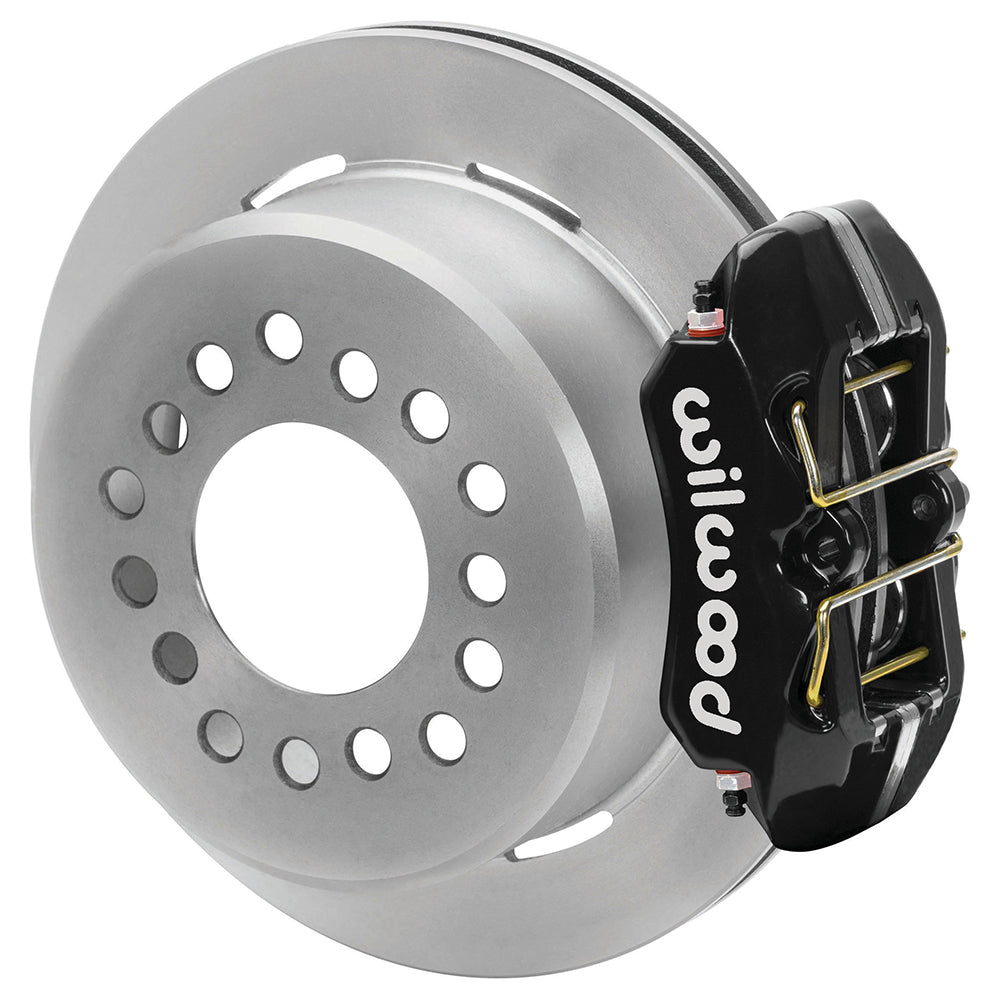

• Service calipers: Forged Dynapro Low Profile; 4 pistons per caliper; Black Powder Coat; lug mounting; stainless pistons.
• Hardware and retained components: Mounting hardware supplied; existing wheel hubs retained; spindles, master cylinder and brake booster are not included.
• Machining prerequisite: Housing-flange material removal and two drilled holes required; follow the specific drawing and arrange qualified machine-shop work.
• Rotor/hat mounting-hole pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; cataloged hole clearances 0.52 in; 13.21 mm. These are rotor or hat drillings, not replacement wheel studs. The retained hub or axle determines the vehicle wheel pattern.
• Housing-flange requirement: G-Body flange; 2.62-inch axle offset, measured using the manufacturer worksheet.
• Parking brake: Internal shoe parking brake supplied; cables, cable hardware and adapters are separate.
• Wheel envelope: 14-inch minimum nominal wheel diameter; verify the entire wheel-clearance drawing, including spoke and barrel shape.
• Hydraulic lines: Hydraulic flexlines and fittings are not included; select compatible lines for the complete installation.
• Hydraulic sizing: cataloged bore sizes 1.38, 1.38 inches; piston area 3.00 square inches; inlet 1/8-27 NPT.
• Brake rotor size: 11.00-inch outside diameter × 0.81-inch thickness; vented friction section.
• Rotor specification: Material: Iron; Type: Ultralite HP 32 & Hat; Style: Plain Face; Surface Finish: Plain.

Fitment & Compatibility

Select this conversion by the GM G-Body housing-flange drawing and a measured 2.62-inch axle offset. DS1546 requires substantial housing-flange modification, including material removal and two drilled holes, preferably performed by a qualified machine shop. Check the axle-flange register, stud clearance and full 14-inch wheel drawing. Parking-brake cables, cable hardware and adapters are separate; plan the complete cable route before disassembly.

Send PMB Performance the VIN and the relevant brake measurements for help with selection. We have over 20 years of experience working through parts and compatibility details.

Review Installation instructions, Technical bulletin for the complete installation and clearance requirements.
