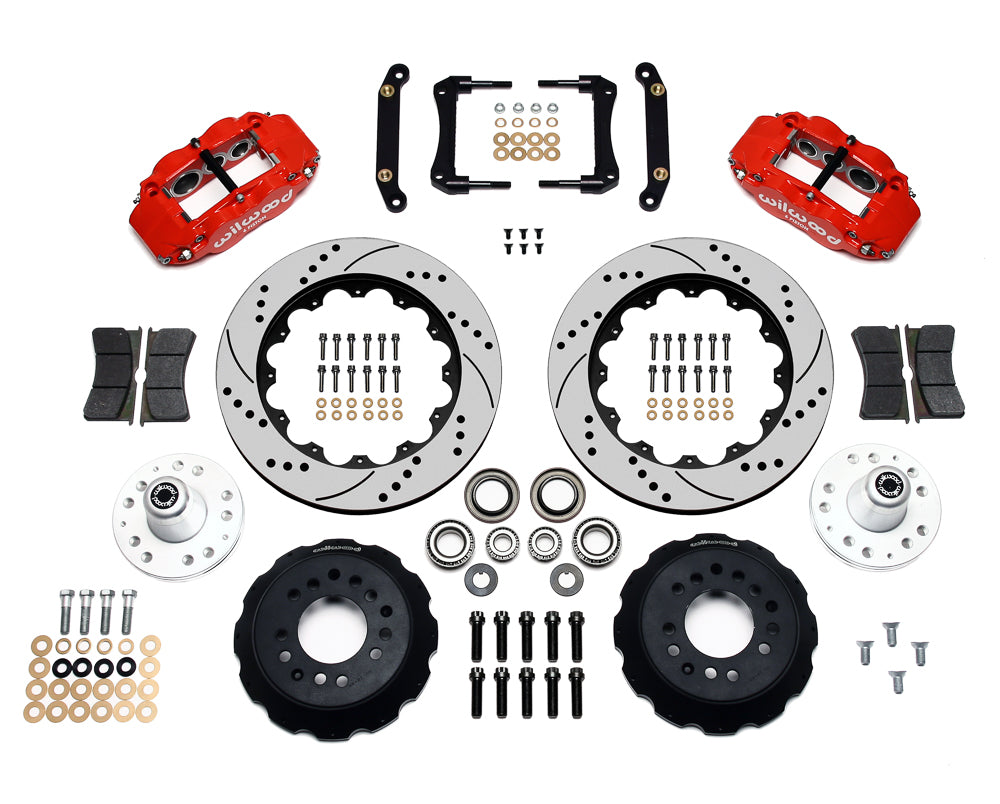

Wilwood front FNSL6R brake kit for No Limit ZG 14-inch conversion: Two red-finish FNSL6R calipers, drilled and slotted rotor rings, separate black hats, silver hubs, bearings, seals, pads, brackets and hardware laid out.

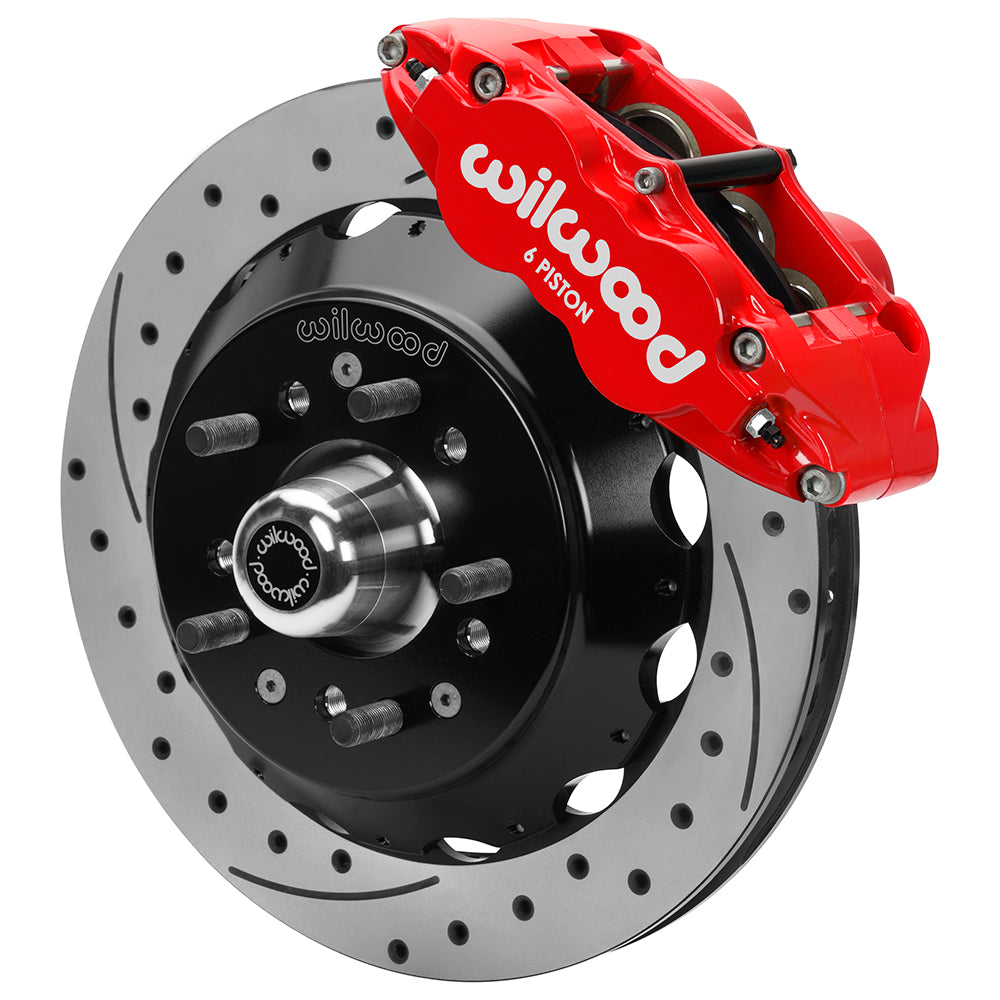

Wilwood front FNSL6R brake kit for No Limit ZG 14-inch conversion: Assembled drilled and slotted rotor and black hat with a red-finish FNSL6R caliper, projecting hub, five studs and a silver dust cap.
Wilwood front FNSL6R brake kit for No Limit ZG 14-inch conversion: Two red-finish FNSL6R calipers, drilled and slotted rotor rings, separate black hats, silver hubs, bearings, seals, pads, brackets and hardware laid out.
Wilwood front FNSL6R brake kit for No Limit ZG 14-inch conversion: Assembled drilled and slotted rotor and black hat with a red-finish FNSL6R caliper, projecting hub, five studs and a silver dust cap.

Wilwood Front Drilled/Slotted Rotor and FNSL6R Caliper Kit for No Limit Engineering ZG Spindles, Red / 14 Inch

SKU: 140-17089-DR

$2,598.21 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The 14.00-inch FNSL6R front conversion supplies six-piston calipers, rotor rings, separate hats and replacement aluminum hubs for No Limit Engineering ZG spindles. Red calipers and 14.00-inch SRP drilled & slotted rotors are the selected configuration. Bearings and mounting hardware belong to this specific fabricated-spindle package. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems, with selection governed by the complete brake installation.

Technical Details

  • Manufacturer identification: 140-17089-DR, supplied as one application-specific kit.
  • Rotor dimensions (diameter/width): 14.00 / 1.25 inches. SRP Drilled & Slotted design in Spec-37 Iron.
  • Pads supplied: BP-10. Piston bore dimensions: 1.75, 1.25, 1.25 inches.
  • Wheel hubs are part of this package: aluminum construction, 5 x 4.75, 5 x 5.00-inch patterns and 1/2-20 wheel studs; bearings and seals are included.
  • An 18-inch nominal wheel is the starting point. Its spoke and barrel shape must clear the actual brake assembly.
  • Mounting hardware and brake pads come with the kit. Spindles, a master cylinder and a brake booster are not included.
  • Service caliper specification: Forged Narrow Superlite 6R in red powder coat, using radial mounting and 6 stainless pistons.
  • Hat material/finish: aluminum / black e-coat. Published hat offset: 1.470 inch.
  • The specified caliper hydraulic connection is 1/8-27 NPT.
  • This package excludes flexible brake hoses. Select the documented caliper and chassis-end connections separately.

Fitment & Compatibility

The 14-inch kit is selected for the No Limit Engineering ZG spindle after the DS-1543 modifications. A qualified machinist should cut away the interfering ears and drill/tap the two new mounting holes on both uprights. The new hubs and 1.47-inch-offset hats then locate the rotor assembly; an unmodified spindle will not accept the brake package. Confirm 18-inch wheel clearance and the chosen hub pattern. No spindles or hydraulic hoses come with the kit.

With over 20 years of parts and application experience, PMB Performance can help compare this assembly with your existing brakes. Supply the hub, axle or spindle specification and wheel-clearance information before ordering.

Manufacturer documentation: Installation instructions.
