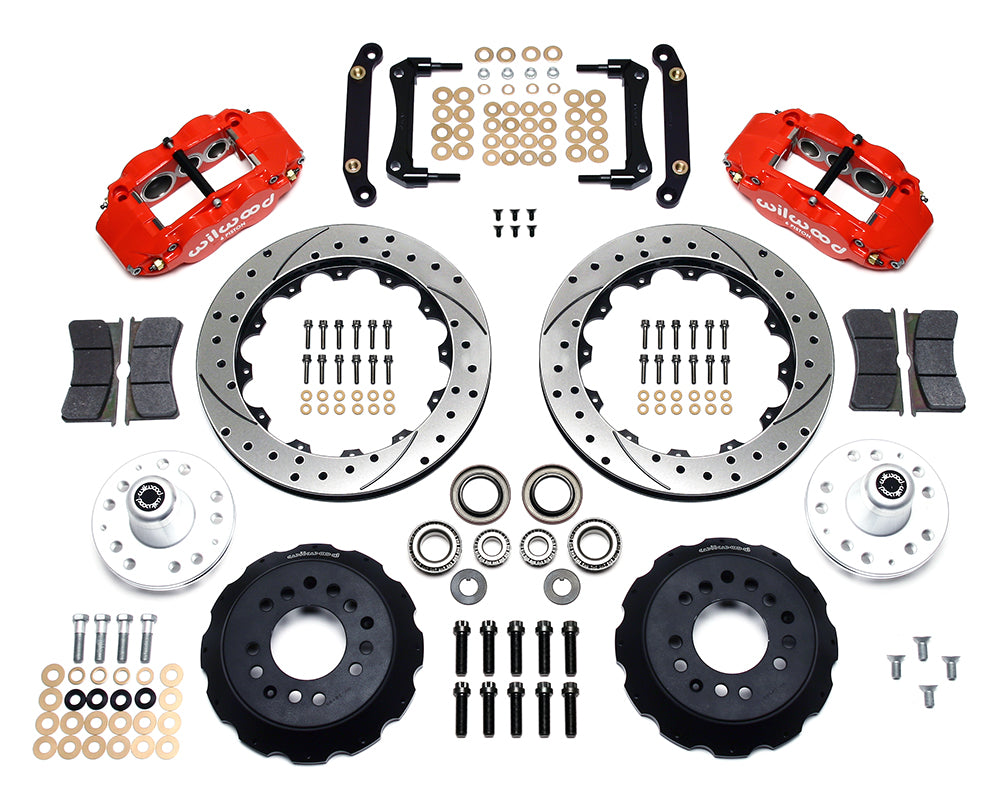

Wilwood front FNSL6R brake kit for No Limit ZG 12.88-inch conversion: Two red-finish FNSL6R calipers, drilled and slotted rotor rings, separate black hats, silver hubs, bearings, seals, pads, brackets and hardware laid out.

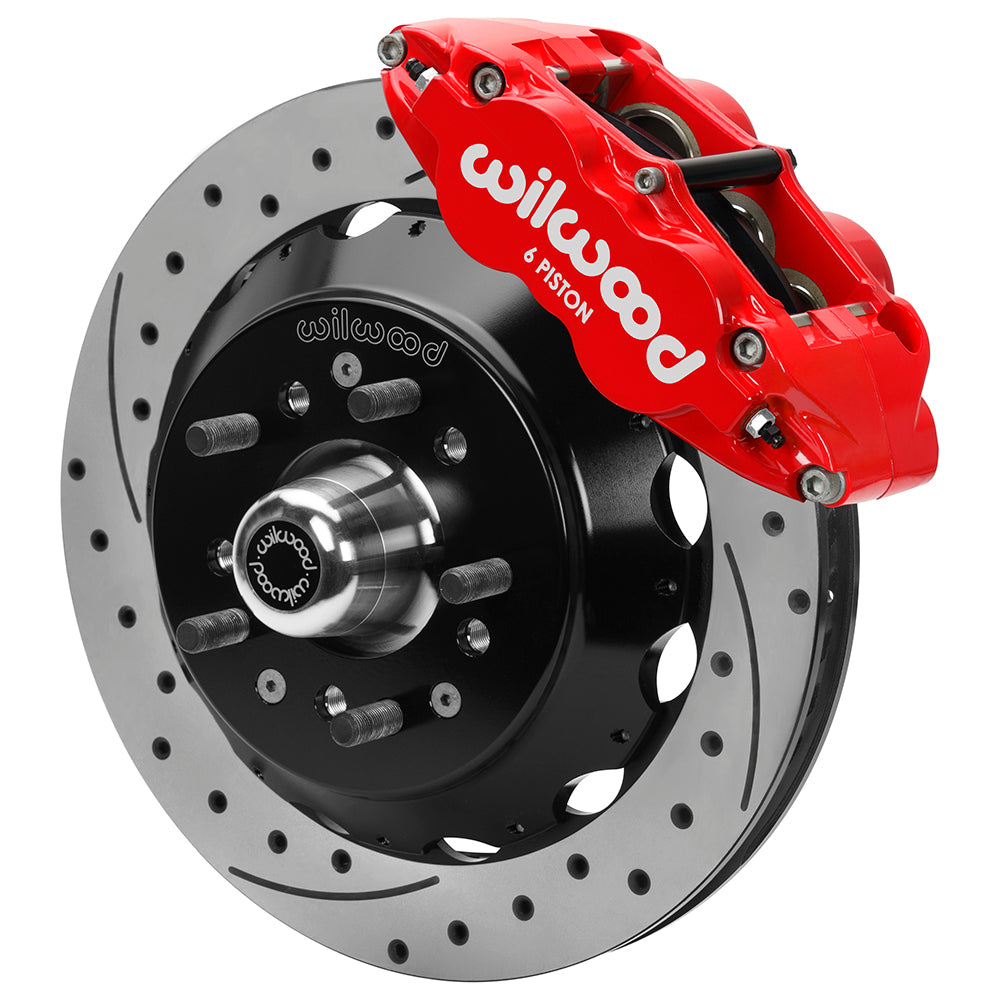

Wilwood front FNSL6R brake kit for No Limit ZG 12.88-inch conversion: Assembled drilled and slotted rotor and black hat with a red-finish FNSL6R caliper, projecting hub, five studs and a silver dust cap.
Wilwood front FNSL6R brake kit for No Limit ZG 12.88-inch conversion: Two red-finish FNSL6R calipers, drilled and slotted rotor rings, separate black hats, silver hubs, bearings, seals, pads, brackets and hardware laid out.
Wilwood front FNSL6R brake kit for No Limit ZG 12.88-inch conversion: Assembled drilled and slotted rotor and black hat with a red-finish FNSL6R caliper, projecting hub, five studs and a silver dust cap.

Wilwood Front 12.88-Inch Rotor Kit with Red FNSL6R Calipers for No Limit Engineering ZG Spindles, Drilled/Slotted

SKU: 140-17088-DR

$2,384.74 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The 12.88-inch FNSL6R front conversion supplies six-piston calipers, rotor rings, separate hats and replacement aluminum hubs for No Limit Engineering ZG spindles. Red calipers and 12.88-inch SRP drilled & slotted rotors are the selected configuration. Bearings and mounting hardware belong to this specific fabricated-spindle package. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems, with selection governed by the complete brake installation.

Technical Details

  • Kit reference: Wilwood manufacturer part number 140-17088-DR. Supplied quantity is one kit.
  • The brake package includes pads and required mounting hardware, excluding spindles, master cylinder and booster.
  • Hydraulic line selection is a separate purchase. Check hose length, adapters and routing before assembly.
  • Check the wheel-clearance diagram before purchase; the nominal minimum wheel diameter is 17 inches.
  • Connect the hydraulic line through the 1/8-27 NPT caliper inlet.
  • The kit includes new aluminum hubs and their bearing hardware. Select the 5 x 4.75, 5 x 5.00-inch wheel pattern and 1/2-20 studs.
  • The rotor assembly uses 1.470-inch-offset aluminum hats finished in black e-coat.
  • BP-10 pads are included. The manufacturer lists piston bores of 1.75, 1.25, 1.25 inches.
  • Braking is provided by 6-piston Forged Narrow Superlite 6R calipers, finished in red powder coat. Pistons are stainless; the mounting arrangement is radial.
  • SRP Drilled & Slotted rotor selection, 12.88 inches in diameter and 1.25 inch wide. The specified material is Spec-37 Iron.

Fitment & Compatibility

Requires the matching No Limit Engineering ZG spindle. Substantial spindle machining is part of the conversion: remove the two interfering ears and drill/tap two mounting holes on both spindles exactly as DS-1543 describes, preferably through a qualified machine shop. This is not a direct bolt-on package for an unmodified spindle. Verify wheel pattern, register and caliper envelope. Hoses and spindles are not supplied.

With over 20 years of parts and application experience, PMB Performance can help compare this assembly with your existing brakes. Supply the hub, axle or spindle specification and wheel-clearance information before ordering.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
