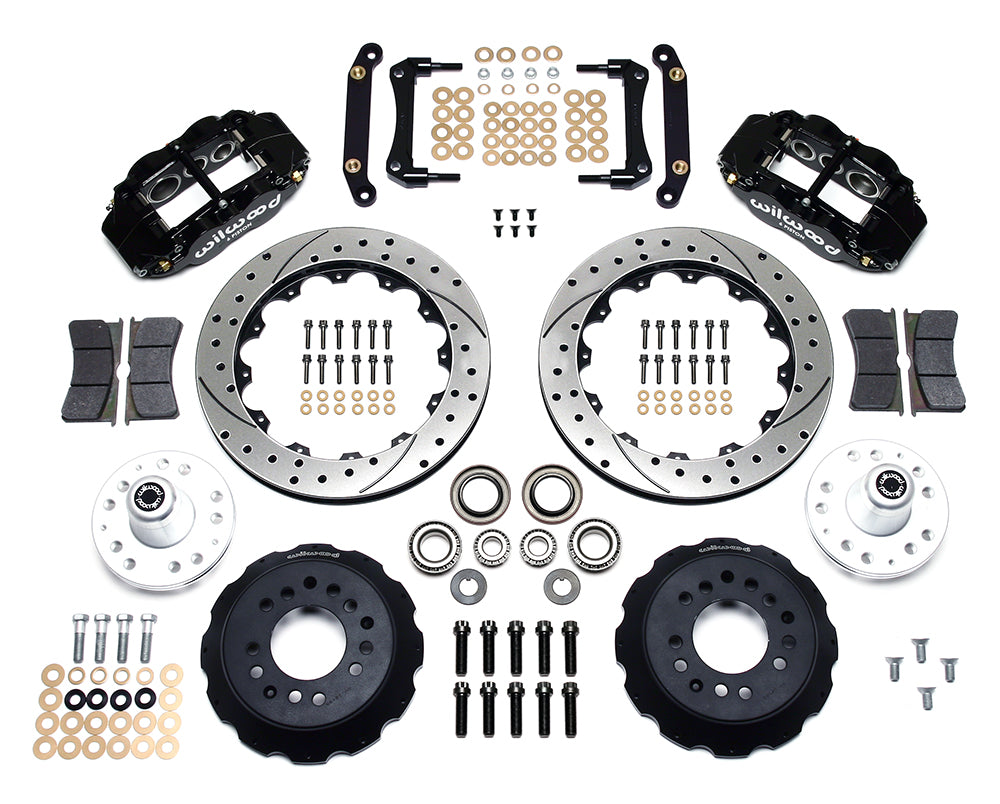

Wilwood front FNSL6R brake kit for No Limit ZG 12.88-inch conversion: Two black FNSL6R calipers, drilled and slotted rotor rings, separate black hats, silver hubs, bearings, seals, pads, brackets and hardware laid out.

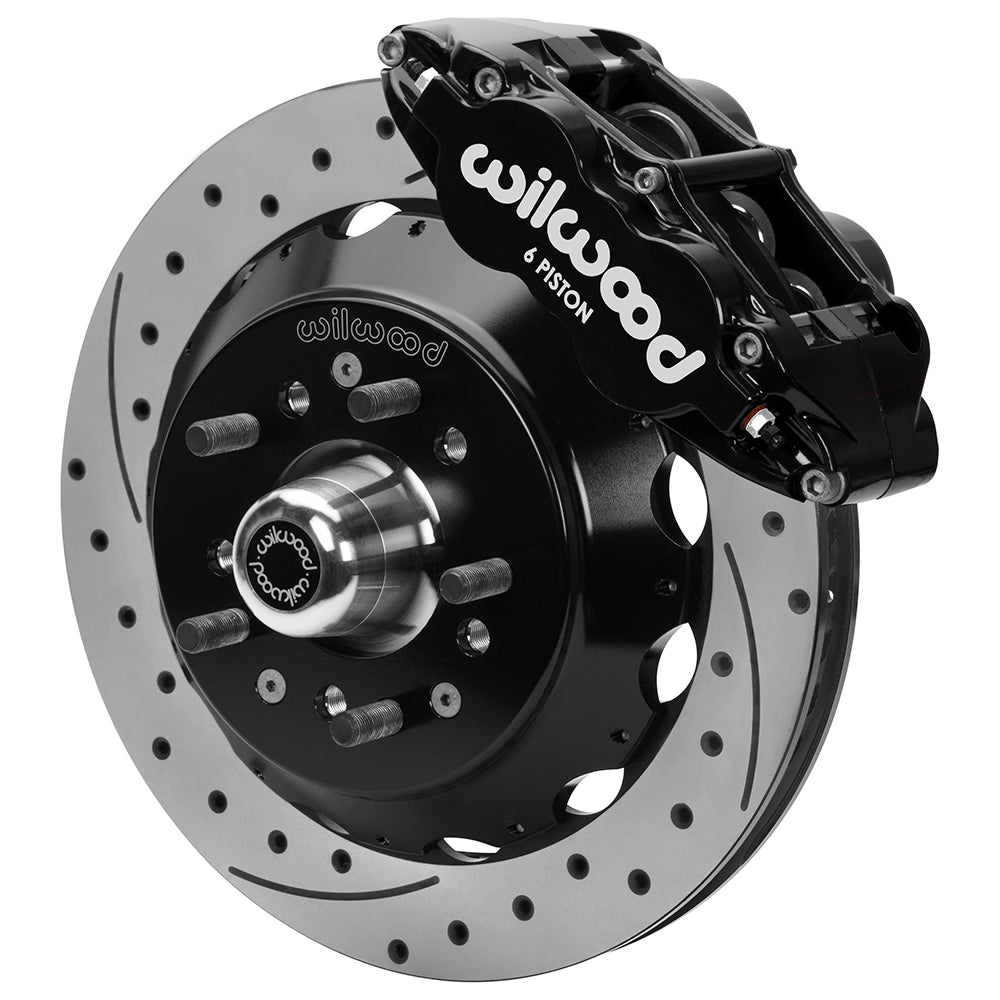

Wilwood front FNSL6R brake kit for No Limit ZG 12.88-inch conversion: Assembled drilled and slotted rotor and black hat with a black FNSL6R caliper, projecting hub, five studs and a silver dust cap.
Wilwood front FNSL6R brake kit for No Limit ZG 12.88-inch conversion: Two black FNSL6R calipers, drilled and slotted rotor rings, separate black hats, silver hubs, bearings, seals, pads, brackets and hardware laid out.
Wilwood front FNSL6R brake kit for No Limit ZG 12.88-inch conversion: Assembled drilled and slotted rotor and black hat with a black FNSL6R caliper, projecting hub, five studs and a silver dust cap.

Wilwood Front 12.88-Inch SRP Drilled/Slotted Brake Kit, No Limit Engineering ZG Spindles with Black FNSL6R Calipers

SKU: 140-17088-D

$2,384.74 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Black calipers and 12.88-inch SRP drilled & slotted rotors are the selected configuration. The 12.88-inch FNSL6R front conversion supplies six-piston calipers, rotor rings, separate hats and replacement aluminum hubs for No Limit Engineering ZG spindles. Bearings and mounting hardware belong to this specific fabricated-spindle package. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company makes disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Each component must suit the surrounding brake system.

Technical Details

  • Wilwood kit number 140-17088-D; sold as the listed axle brake package.
  • Forged Narrow Superlite 6R service calipers have 6 pistons and radial mounts. The finish is black powder coat; piston material is stainless.
  • Caliper bore sizes are 1.75, 1.25, 1.25 inches; the axle pad set uses BP-10 compound.
  • Separate aluminum hats position the rotor with 1.470 inch offset and a black e-coat finish.
  • Replacement hubs are aluminum and come with the specified bearings/seals. Wheel drilling: 5 x 4.75, 5 x 5.00 inches; studs: 1/2-20.
  • Caliper inlet thread is 1/8-27 NPT.
  • Published minimum rim diameter is 17 inches. Use the template to check spoke clearance as well.
  • Provide suitable flexible hoses and caliper/chassis fittings; the brake kit does not supply flexlines.
  • Supplied items include the pads and mounting fasteners; no replacement spindle, master cylinder or booster is included.
  • The supplied rotor measures 12.88 inches across and 1.25 inch thick. Surface configuration: SRP drilled & slotted; construction: Spec-37 Iron.

Fitment & Compatibility

Requires the matching No Limit Engineering ZG spindle. Substantial spindle machining is part of the conversion: remove the two interfering ears and drill/tap two mounting holes on both spindles exactly as DS-1543 describes, preferably through a qualified machine shop. This is not a direct bolt-on package for an unmodified spindle. Verify wheel pattern, register and caliper envelope. Hoses and spindles are not supplied.

For help selecting the correct brake package, give PMB Performance the vehicle details and measurements of the installed hardware. Our 20+ years of parts experience help resolve fitment beyond a model name alone.

Manufacturer documentation: Installation instructions.
