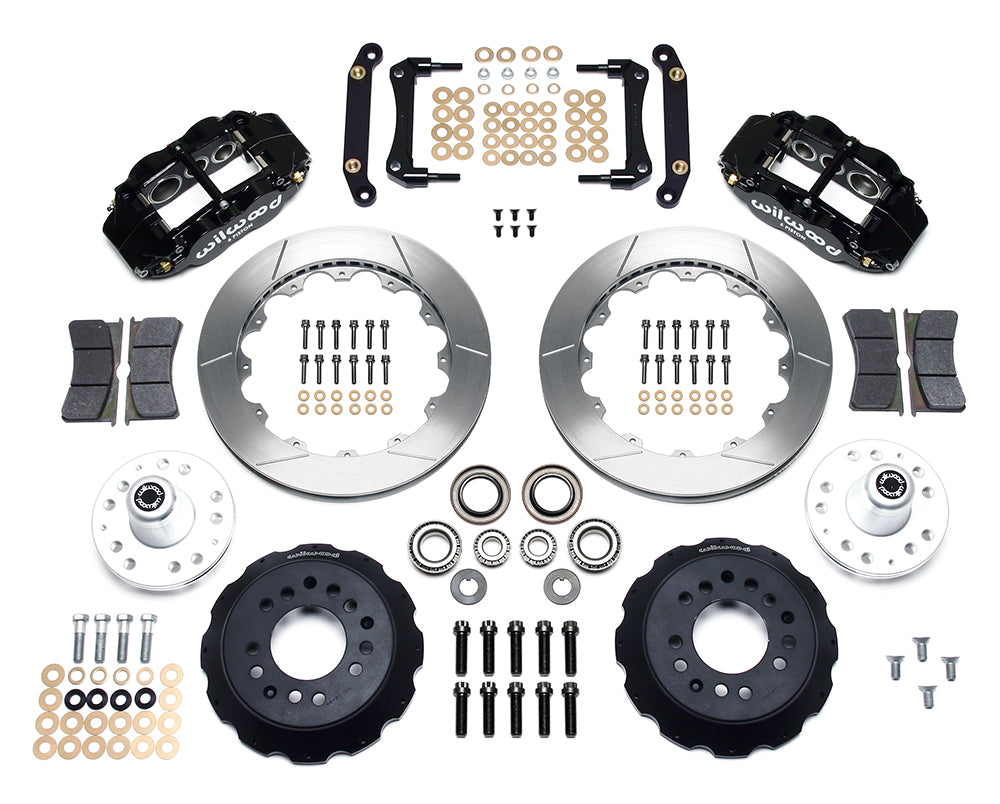

Wilwood front FNSL6R brake kit for No Limit ZG 12.88-inch conversion: Two black FNSL6R calipers, slotted rotor rings, separate black hats, silver hubs, bearings, seals, pads, brackets and hardware laid out.

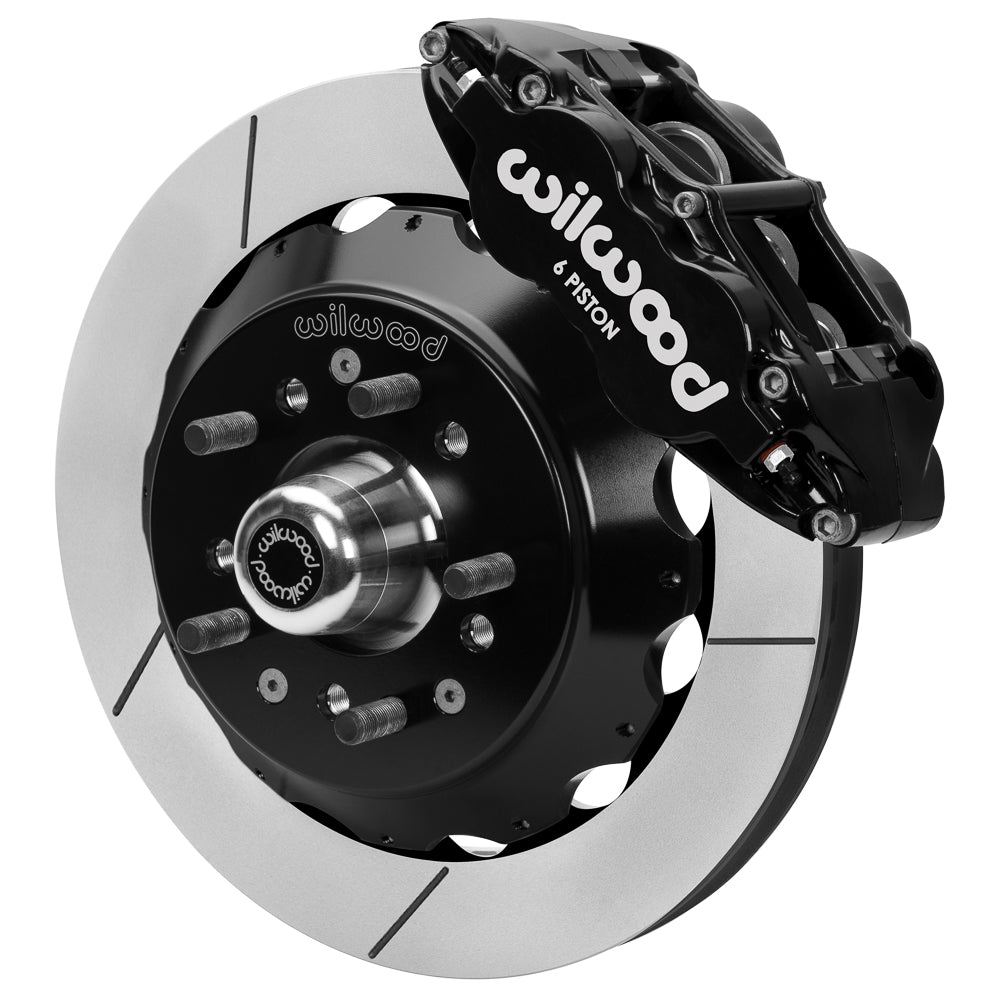

Wilwood front FNSL6R brake kit for No Limit ZG 12.88-inch conversion: Assembled slotted rotor and black hat with a black FNSL6R caliper, projecting hub, five studs and a silver dust cap.
Wilwood front FNSL6R brake kit for No Limit ZG 12.88-inch conversion: Two black FNSL6R calipers, slotted rotor rings, separate black hats, silver hubs, bearings, seals, pads, brackets and hardware laid out.
Wilwood front FNSL6R brake kit for No Limit ZG 12.88-inch conversion: Assembled slotted rotor and black hat with a black FNSL6R caliper, projecting hub, five studs and a silver dust cap.

Wilwood Front Black FNSL6R Brake Conversion for No Limit Engineering ZG Spindles, 12.88-Inch GT Slotted Rotors

SKU: 140-17088

$2,384.74 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The 12.88-inch FNSL6R front conversion supplies six-piston calipers, rotor rings, separate hats and replacement aluminum hubs for No Limit Engineering ZG spindles. Bearings and mounting hardware belong to this specific fabricated-spindle package. Black calipers and 12.88-inch GT slotted rotors are the selected configuration. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, chosen to match the complete system.

Technical Details

  • Manufacturer part number: 140-17088. One kit for the documented axle/application.
  • Rotors: 12.88-inch outside diameter × 1.25-inch thickness, GT slotted faces, Spec-37 Iron material.
  • Calipers: Forged Narrow Superlite 6R, 6 pistons, stainless piston material. Radial mount and black powder coat finish.
  • Published piston bores: 1.75, 1.25, 1.25 inches. Included pads: BP-20.
  • Rotor hats: aluminum, black e-coat, 1.470-inch offset.
  • Aluminum hubs, bearings and seals are supplied. Wheel pattern choices: 5 x 4.75, 5 x 5.00 inches, with 1/2-20 studs.
  • Hydraulic inlet: 1/8-27 NPT.
  • Nominal wheel minimum: 17 inches; verify the complete caliper profile against the wheel drawing.
  • Flexlines are not included. Choose the required hydraulic hoses and adapters separately.
  • Pads and mounting hardware are included. Spindles, master cylinder and brake booster are separate.

Fitment & Compatibility

Requires the matching No Limit Engineering ZG spindle. Substantial spindle machining is part of the conversion: remove the two interfering ears and drill/tap two mounting holes on both spindles exactly as DS-1543 describes, preferably through a qualified machine shop. This is not a direct bolt-on package for an unmodified spindle. Verify wheel pattern, register and caliper envelope. Hoses and spindles are not supplied.

PMB Performance brings 20+ years of parts and fitment experience to brake selection. Send the actual hub or spindle details, existing brake configuration and wheel measurements for help checking this combination.

Manufacturer documentation: Installation instructions.
