Wilwood Rear Red Caliper and Drilled/Slotted Rotor Conversion for Chevrolet Corvette/Corvette E-Ray C8 (2020–2025), AERO4/EPB Dynamic / 15 Inch

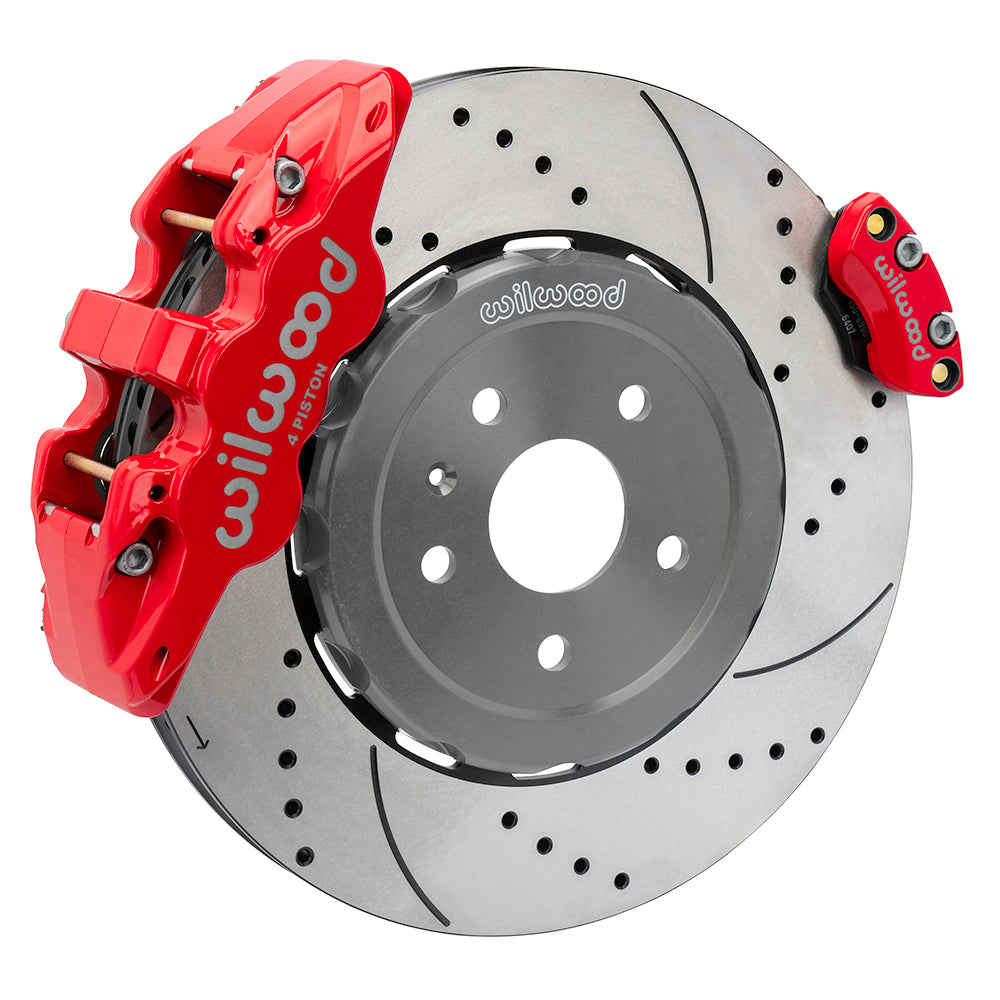

The C8 rear conversion pairs AERO4 four-piston hydraulic service calipers with separate electric parking calipers and 15.00-inch dynamic-mount rotors. Red calipers and 15.00-inch SRP drilled & slotted rotors are the selected configuration. Braided hydraulic lines and parking-caliper wiring pigtails are included for the factory Corvette arrangement. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems, with selection governed by the complete brake installation.

Technical Details

• Manufacturer identification: 140-17009-DR, supplied as one application-specific kit.
• Rotor dimensions (diameter/width): 15.00 / 1.25 inches. SRP Drilled & Slotted design in Spec-37 Iron.
• Pads supplied: BP-10. Piston bore dimensions: 1.62, 1.38 inches.
• Match the retained hub to the hat holes (5 x 4.72 inches); no new wheel-hub pattern is created.
• The specified caliper hydraulic connection is 1/8-27 NPT.
• Hose package 220-17008 is included. Keep the braided lines free of strain, abrasion and contact with moving parts.

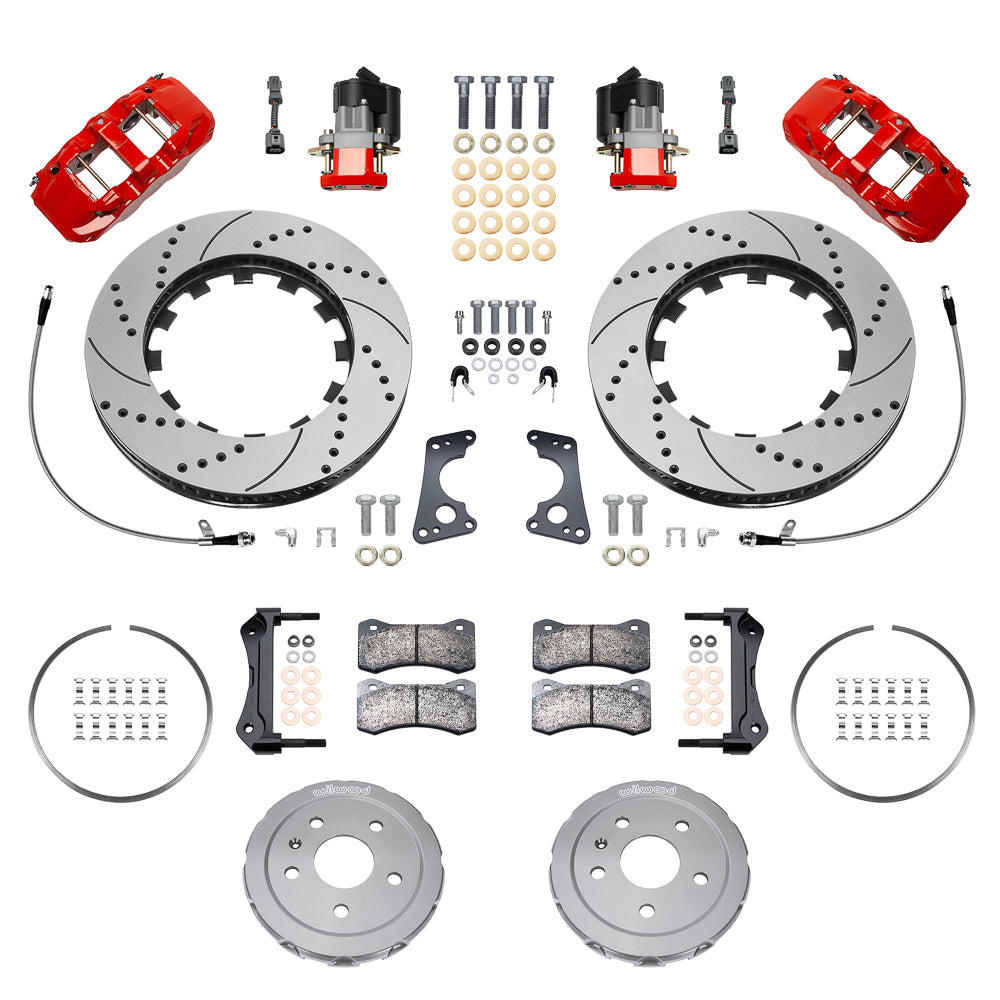

• Mounting hardware and brake pads come with the kit. Spindles, a master cylinder and a brake booster are not included.
• Service caliper specification: AERO4 in red powder coat, using radial mounting and 4 stainless pistons.
• Hat material/finish: aluminum / Type III anodize. Published hat offset: 0.268 inch.
• Verify the existing hub dimensions: replacement wheel hubs are outside the scope of this package.
• A 19-inch nominal wheel is the starting point. Its spoke and barrel shape must clear the actual brake assembly.
• EPB calipers and wiring pigtails are included for connection to the documented original Corvette parking-brake harness.

Fitment & Compatibility

Match the individual Corvette Stingray, Z06, Corvette E-Ray and ZR1 year/trim rows and the actual hub/upright geometry. DS-1534 connects the supplied EPB calipers to the existing Corvette parking-brake wiring through the included pigtails; it does not use a separate universal controller installation. Follow its battery-disconnection procedure before brake work, route both hoses and wiring clear of rotating parts, and test parking hold after installation. The table below preserves the individual vehicle and brake-option entries; select the complete matching row before ordering.

With over 20 years of parts and application experience, PMB Performance can help compare this assembly with your existing brakes. Supply the hub, axle or spindle specification and wheel-clearance information before ordering.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
