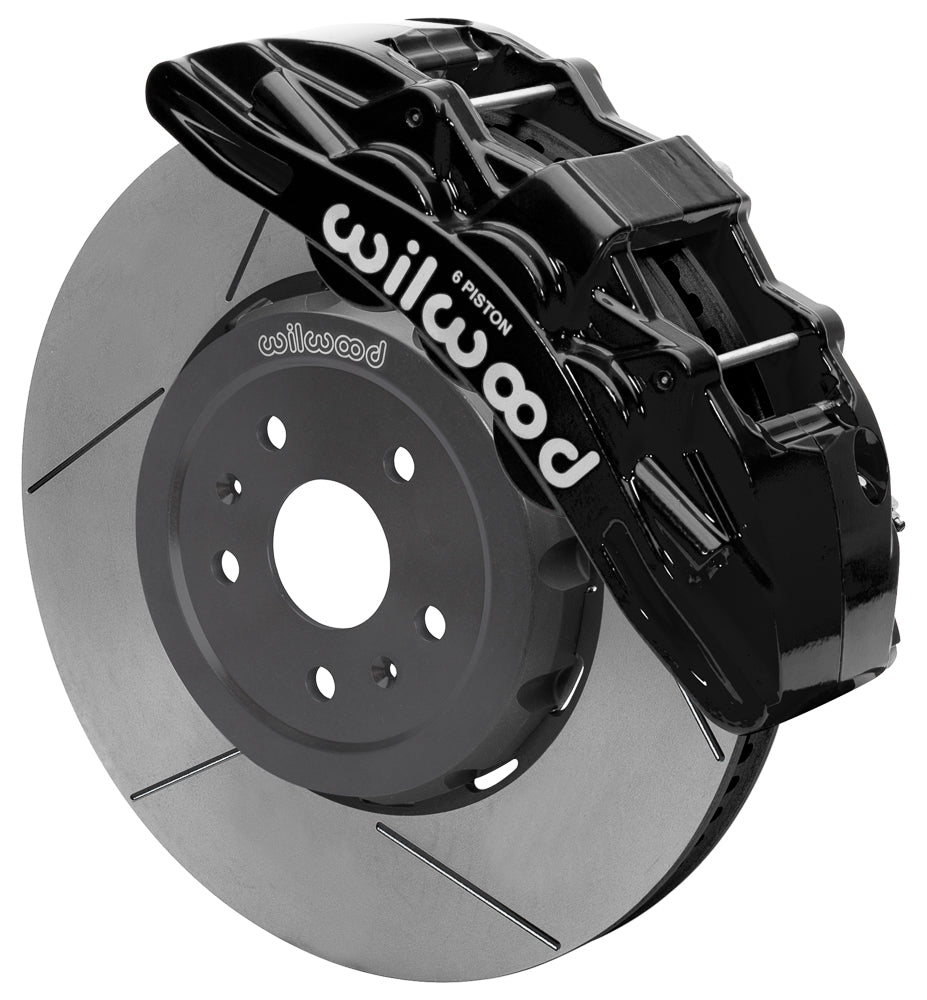

Wilwood Front SX6R Dynamic Brake Kit for Chevrolet Corvette/Corvette E-Ray C8 (2020–2025), Black Calipers and 15-Inch GT Slotted Rotors

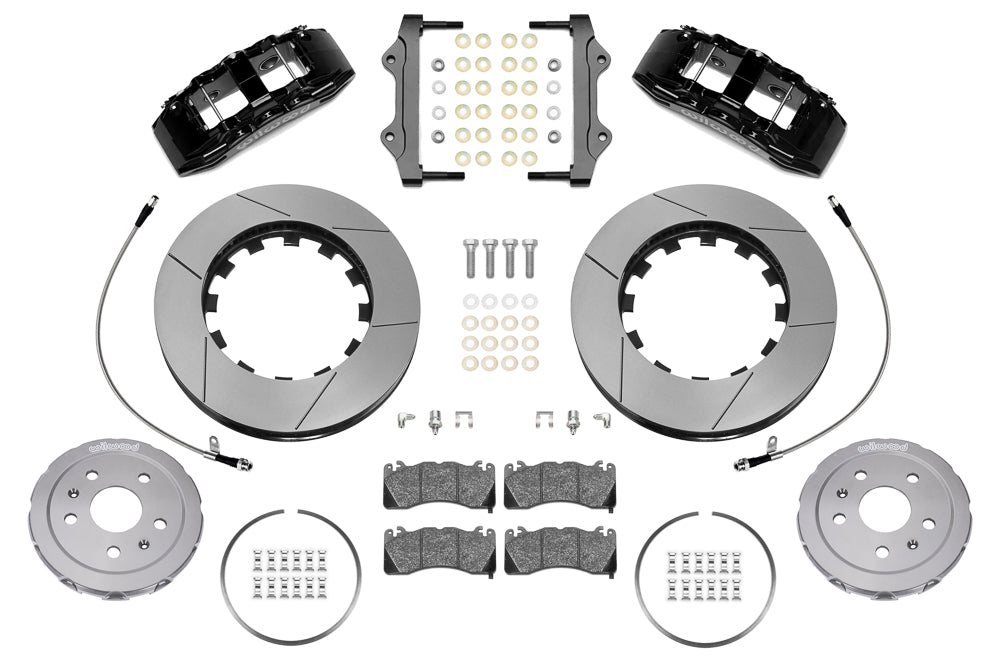

SX6R six-piston front calipers pair with 15.00-inch rotors on separate dynamic lug-drive hats in this C8 Corvette package. Brake pads, mounting hardware and braided lines are included for the specified original hub/upright interface. Black calipers and 15.00-inch GT slotted rotors are the selected configuration. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, chosen to match the complete system.

Technical Details

• Order specification: manufacturer part number 140-17004; quantity one brake kit.
• The piston diameter specification is 1.62, 1.12, 1.12 inches, paired with BP-10 brake pads.
• Hats are made from aluminum with a Type III anodize surface treatment. Their offset dimension is 0.425 inch.
• Hat drillings: 5 x 4.72 inches; the existing wheel hub still determines the wheel-lug pattern.
• Matching existing wheel hubs are retained; replacement hubs are not included.
• Hydraulic inlet: 1/8-27 NPT.
• Nominal wheel minimum: 19 inches; verify the complete caliper profile against the wheel drawing.
• Included braided flexline kit: 220-17008. Match its chassis fittings and final routing.
• Pads and mounting hardware are included. Spindles, master cylinder and brake booster are separate.
• Brake rotor specification: GT 72 Curved Vane, with GT slotted friction faces. Overall size is 15.00 × 1.25 inches. Material: Spec-37 Iron.
• Radial-mounted SX6R calipers are supplied. Each has 6 pistons in stainless, with black powder coat on the caliper body.

Fitment & Compatibility

Check the exact Corvette entry: Stingray 2020–2025, Z06 2023–2025, Corvette E-Ray 1LZ 2024, and the listed 2025 E-Ray and ZR1 rows. Match the actual factory brake package and upright; a trim name alone is not a substitute for checking the rotor/hat interface. The nominal minimum is 19 inches, with spoke clearance checked against the complete wheel drawing. Use the complete application table below to check the individual year, model, submodel, original brake configuration and attached notes.

PMB Performance brings 20+ years of parts and fitment experience to brake selection. Send the actual hub or spindle details, existing brake configuration and wheel measurements for help checking this combination.

Manufacturer documentation: Installation instructions.
