Wilwood Front AERO6-DM Brake Kit, Ford F-150 (2021–2025): 13.38-Inch Drilled/Slotted Rotors with Red Calipers

AERO6-DM six-piston calipers and 13.38-inch rotors form this front package for the listed 2021–2025 F-150 configurations. Red calipers and 13.38-inch SRP drilled & slotted rotors are the selected configuration. The included 30-inch flexline kit has the replacement chassis hose bracket needed for this generation. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems, with selection governed by the complete brake installation.

Technical Details

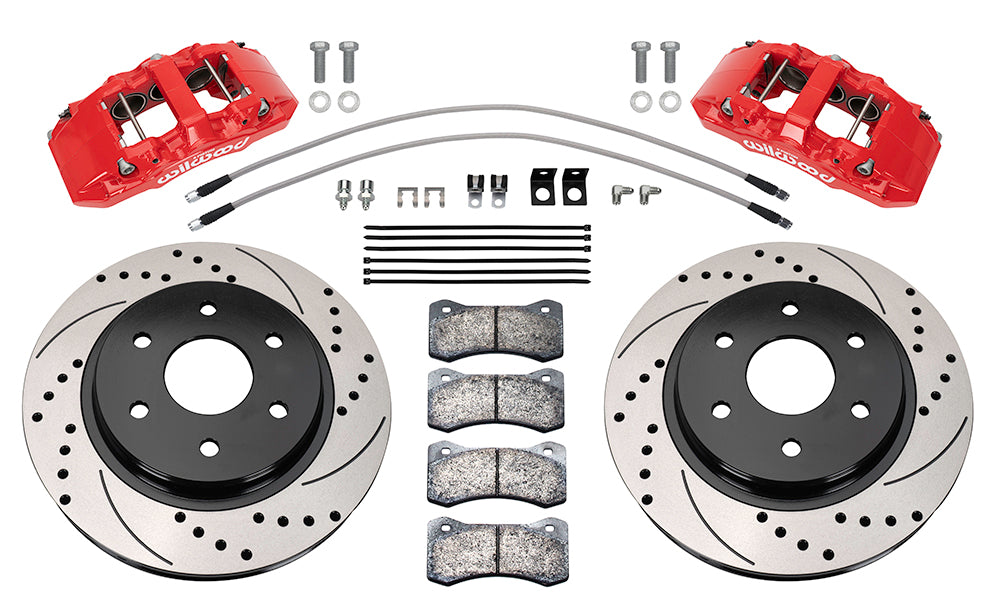

• Kit reference: Wilwood manufacturer part number 140-17000-DR. Supplied quantity is one kit.
• The brake package includes pads and required mounting hardware, excluding spindles, master cylinder and booster.
• The kit supplies braided flexlines (220-17001). Confirm their chassis-end fit and routing on the actual vehicle.
• Check the wheel-clearance diagram before purchase; the nominal minimum wheel diameter is 17 inches.
• Connect the hydraulic line through the 1/8-27 NPT caliper inlet.
• This assembly leaves the documented wheel hubs in use. It supplies brake components rather than new hubs.
• BP-22 pads are included. The manufacturer lists piston bores of 1.75, 1.62, 1.62 inches.

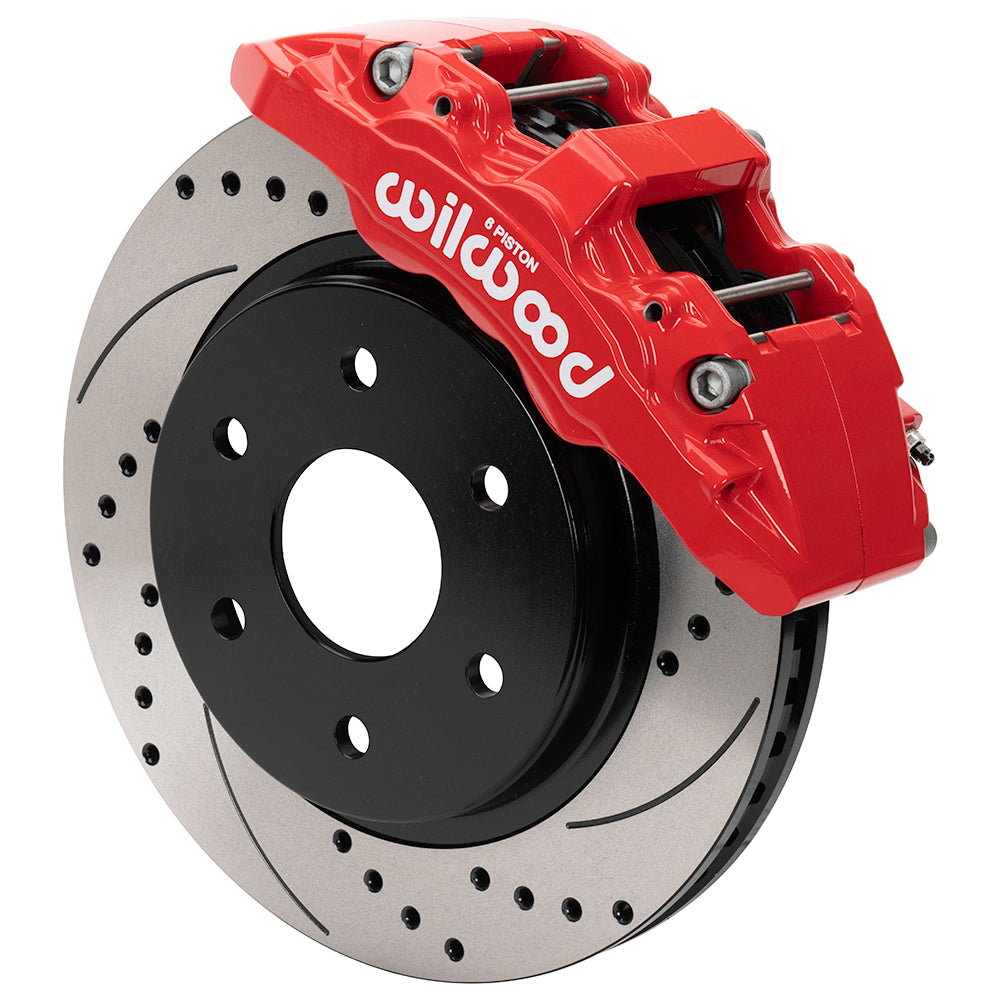

• Braking is provided by 6-piston AERODM calipers, finished in red powder coat. Pistons are stainless; the mounting arrangement is lug.
• SRP Drilled & Slotted rotor selection, 13.38 inches in diameter and 1.25 inch wide. The specified material is Iron.

Fitment & Compatibility

Match the exact F-150 trim and year, including Raptor, Tremor, Police Responder and the listed Raptor R entries. The factory dust shields must be removed. Use the new chassis brake-line bracket supplied with the hose kit, secure the ABS sensor wire as instructed and follow factory EPB service-mode procedures where fitted. Original wheel hubs remain in use; verify clearance against the 17-inch drawing. The table below preserves the individual vehicle and brake-option entries; select the complete matching row before ordering.

With over 20 years of parts and application experience, PMB Performance can help compare this assembly with your existing brakes. Supply the hub, axle or spindle specification and wheel-clearance information before ordering.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
