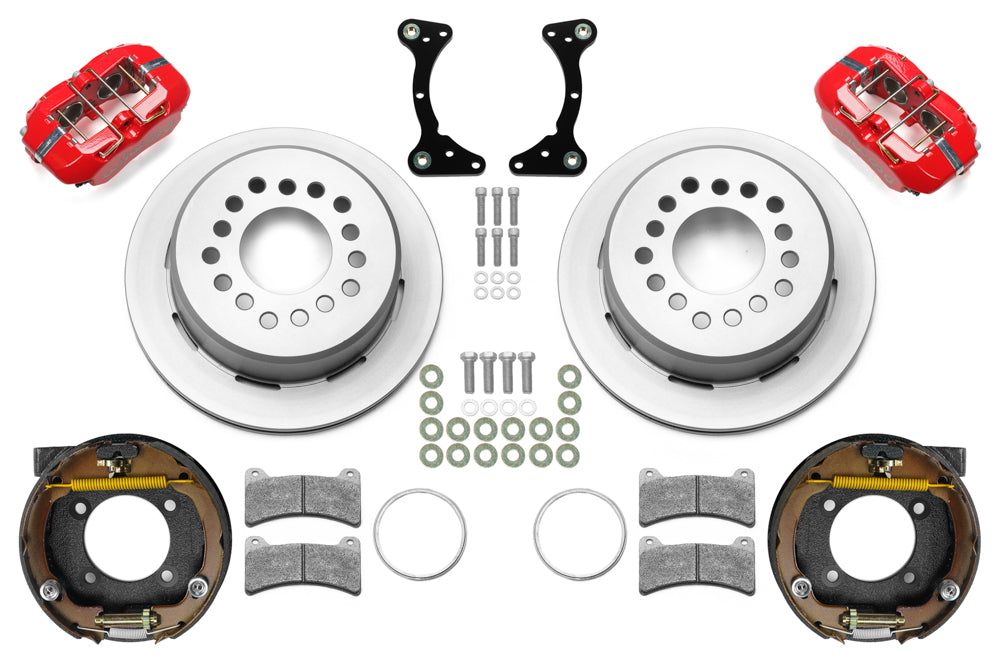

Wilwood rear Forged Dynapro Low Profile brake kit for staggered BOP 11-inch configuration: Red-finish caliper pair with undrilled, with short machined face grooves rotors, internal drum parking-brake assemblies, brackets, pads, registration rings and fasteners.

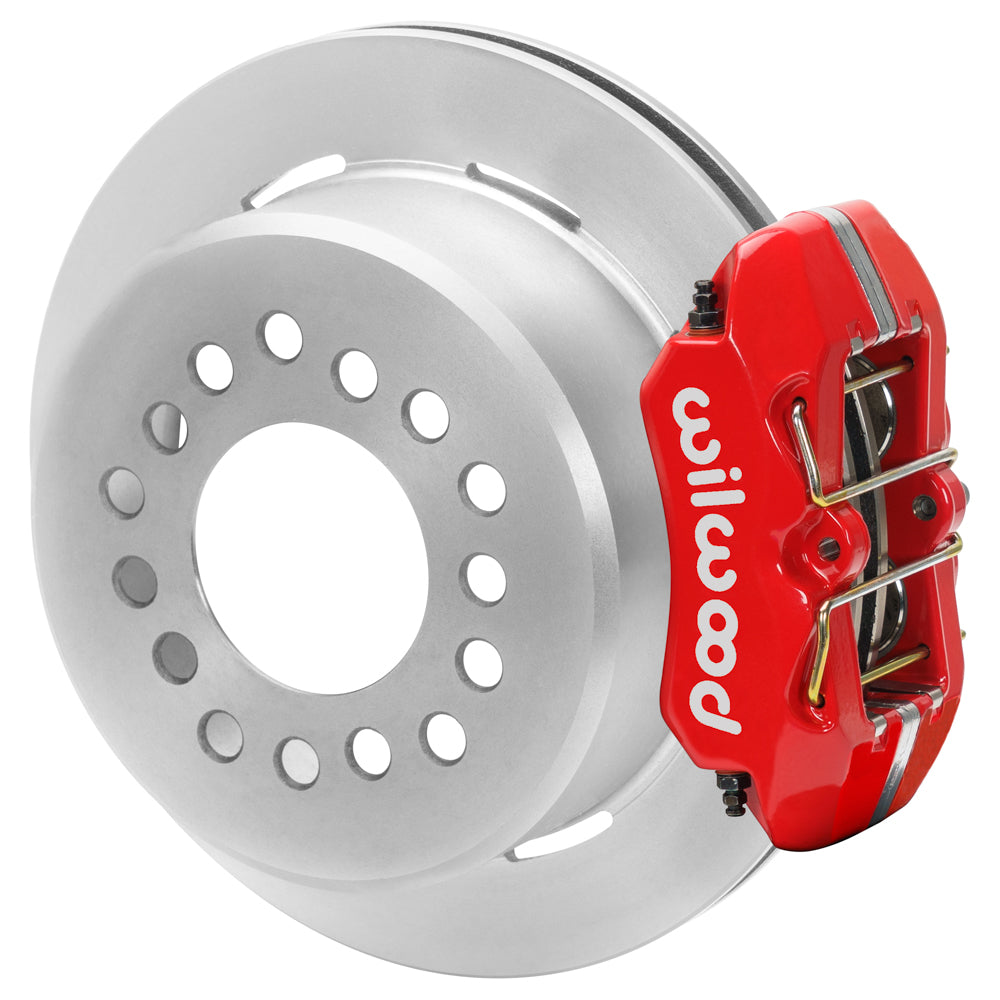

Wilwood rear Forged Dynapro Low Profile brake kit for staggered BOP 11-inch configuration: Assembled rear brake showing a red-finish Forged Dynapro Low Profile caliper, undrilled, with short machined face grooves rotor and deep parking-drum center.
Wilwood rear Forged Dynapro Low Profile brake kit for staggered BOP 11-inch configuration: Red-finish caliper pair with undrilled, with short machined face grooves rotors, internal drum parking-brake assemblies, brackets, pads, registration rings and fasteners.
Wilwood rear Forged Dynapro Low Profile brake kit for staggered BOP 11-inch configuration: Assembled rear brake showing a red-finish Forged Dynapro Low Profile caliper, undrilled, with short machined face grooves rotor and deep parking-drum center.

Wilwood Rear Red Caliper and Plain Rotor Conversion for BOP 2.75-Inch Bearing Axles, Dynapro Low-Profile / 11 Inch

SKU: 140-16988-R

$1,114.44 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This staggered rear brake conversion combines four-piston Dynapro Low-Profile service calipers with 11.00-inch rotors and internal drum parking-brake assemblies. The axle interface is the BOP 2.75-inch bearing flange with a 2.75-inch axle offset. Red calipers and 11.00-inch plain face rotors are the selected configuration. Based in Camarillo, California, Wilwood Engineering was established by Bill Wood in 1977. Its disc brake systems serve motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are matched to the requirements of the whole system.

Technical Details

  • Kit supplied under manufacturer part number 140-16988-R; one listed axle/application assembly.
  • Each service caliper uses 4 stainless pistons and the Forged Dynapro Low Profile body design. It attaches through lug mounts and carries a red powder coat finish.
  • Verify the existing hub dimensions: replacement wheel hubs are outside the scope of this package.
  • A 14-inch nominal wheel is the starting point. Its spoke and barrel shape must clear the actual brake assembly.
  • Drum parking-brake assemblies are included inside the rotor hats. Supply parking cables, cable hardware/adapters and hydraulic hoses/fittings separately.
  • The rotor friction surfaces are plain face. The assembly diameter is 11.00 inches; rotor width is 0.81 inch and material is Iron.
  • An axle pad set in BP-10 compound accompanies the calipers, whose published bores are 1.38, 1.38 inches.
  • The specified caliper hydraulic connection is 1/8-27 NPT.
  • This package excludes flexible brake hoses. Select the documented caliper and chassis-end connections separately.
  • Mounting hardware and brake pads come with the kit. Spindles, a master cylinder and a brake booster are not included.

Fitment & Compatibility

Use measured axle dimensions: BOP 2.75-inch bearing flange, 2.75-inch offset and the staggered shock/caliper layout. DS-1529 describes the 1964–1970 Buick/Oldsmobile/Pontiac axle arrangement, but no particular vehicle model is established here. Confirm the flange drawing, rotor register and axle-flange maximum of 6.61 inches with the specified chamfer. The rotor hat is drilled for 1/2-inch wheel studs; upgrading smaller studs may require machining. Hydraulic hoses/fittings and parking cables, hardware or adapters are not supplied.

PMB Performance has 20+ years of experience with parts and fitment details. Share your current brake setup, intended use and mounting measurements so we can help check the complete installation.

Manufacturer documentation: Installation instructions; Technical bulletin.
