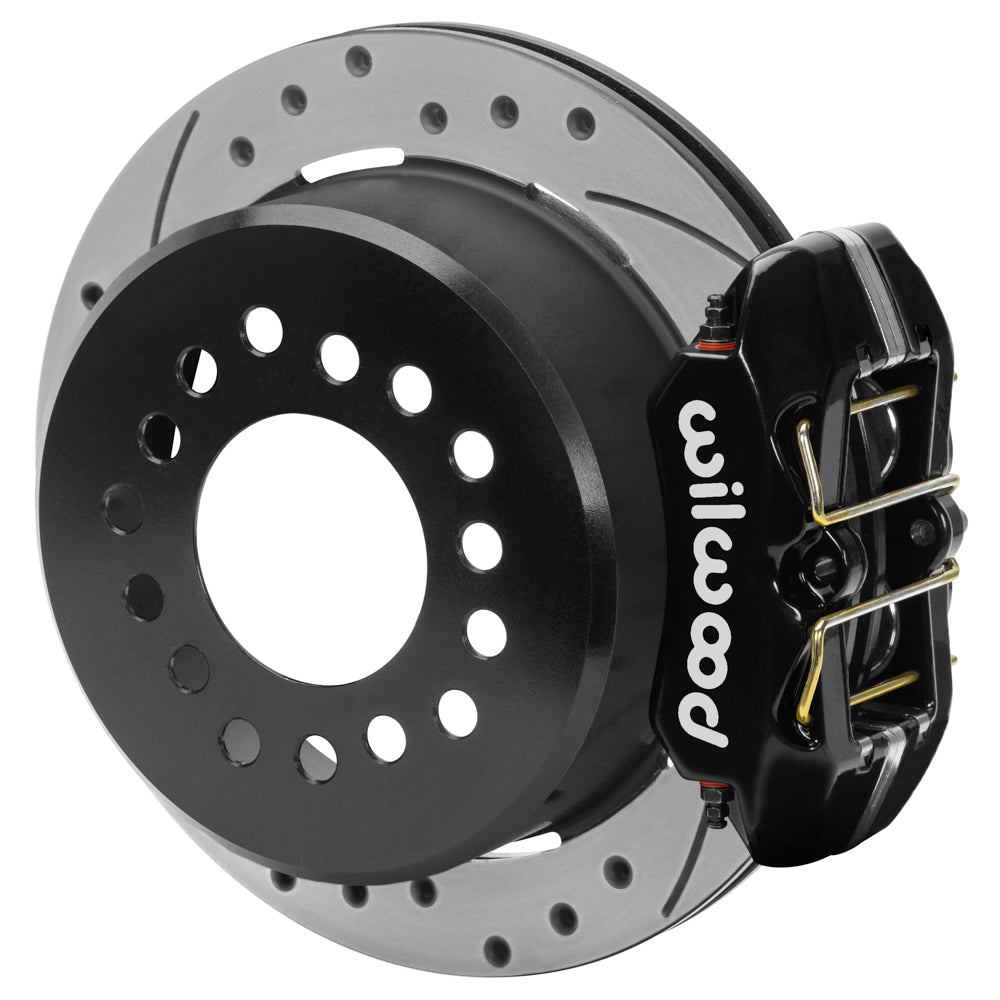

Wilwood Rear Dynapro Low-Profile Calipers and 11-Inch Drilled/Slotted Brake Rotors for BOP 2.75-Inch Bearing Axles, Black Kit

Black calipers and 11.00-inch SRP drilled & slotted rotors are the selected configuration. This staggered rear brake conversion combines four-piston Dynapro Low-Profile service calipers with 11.00-inch rotors and internal drum parking-brake assemblies. The axle interface is the BOP 2.75-inch bearing flange with a 2.75-inch axle offset. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company makes disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Each component must suit the surrounding brake system.

Technical Details

• The Wilwood manufacturer part number is 140-16988-D. This product is sold as a kit.
• The black powder coat caliper bodies are Forged Dynapro Low Profile units with 4 pistons. Stainless pistons and lug mounts are specified.
• 11.00-inch rotors are supplied in the SRP drilled & slotted configuration; the published thickness is 0.81 inch. These rotors use Iron.
• Friction material supplied is BP-10; the caliper bore measurements are 1.38, 1.38 inches.
• The original hub arrangement must be retained or provided separately. No replacement wheel hubs come with the kit.
• Caliper inlet thread is 1/8-27 NPT.
• Published minimum rim diameter is 14 inches. Use the template to check spoke clearance as well.
• Provide suitable flexible hoses and caliper/chassis fittings; the brake kit does not supply flexlines.
• Drum parking-brake assemblies are included inside the rotor hats. Supply parking cables, cable hardware/adapters and hydraulic hoses/fittings separately.

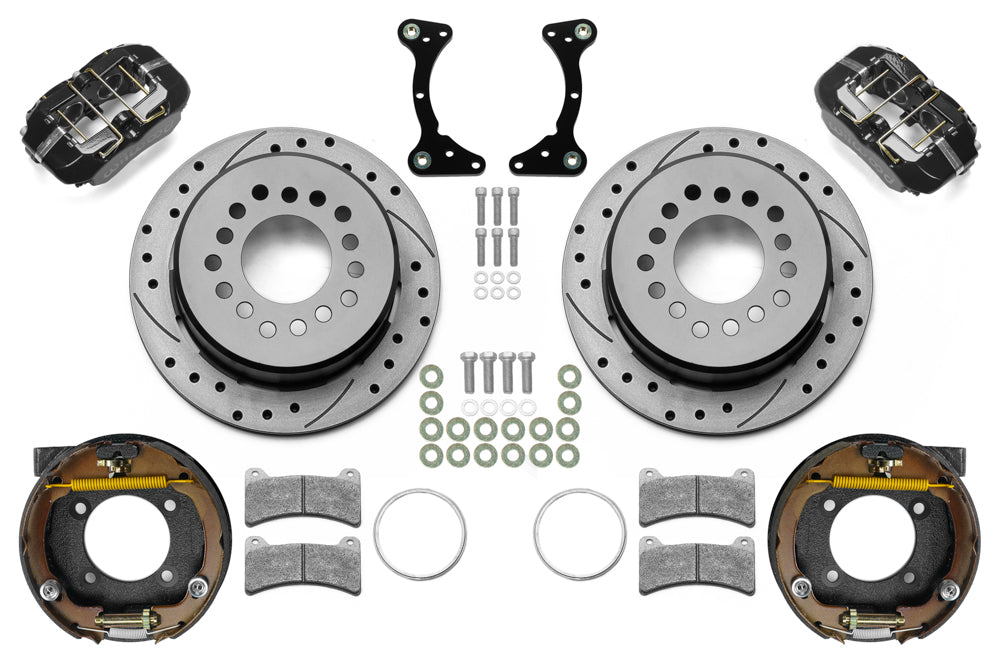

• Supplied items include the pads and mounting fasteners; no replacement spindle, master cylinder or booster is included.

Fitment & Compatibility

Use measured axle dimensions: BOP 2.75-inch bearing flange, 2.75-inch offset and the staggered shock/caliper layout. DS-1529 describes the 1964–1970 Buick/Oldsmobile/Pontiac axle arrangement, but no particular vehicle model is established here. Confirm the flange drawing, rotor register and axle-flange maximum of 6.61 inches with the specified chamfer. The rotor hat is drilled for 1/2-inch wheel studs; upgrading smaller studs may require machining. Hydraulic hoses/fittings and parking cables, hardware or adapters are not supplied.

For help selecting the correct brake package, give PMB Performance the vehicle details and measurements of the installed hardware. Our 20+ years of parts experience help resolve fitment beyond a model name alone.

Manufacturer documentation: Installation instructions; Technical bulletin.
