Wilwood rear TX4R brake kit for GM truck factory parking-brake arrangement: Two red-finish TX4R calipers with slotted one-piece rotors, brake pads and mounting fasteners, with separate caliper mounting brackets.
Wilwood rear TX4R brake kit for GM truck factory parking-brake arrangement: Assembled red-finish TX4R caliper over a slotted rotor with a black center and large hub opening.
Wilwood rear TX4R brake kit for GM truck factory parking-brake arrangement: Two red-finish TX4R calipers with slotted one-piece rotors, brake pads and mounting fasteners, with separate caliper mounting brackets.
Wilwood rear TX4R brake kit for GM truck factory parking-brake arrangement: Assembled red-finish TX4R caliper over a slotted rotor with a black center and large hub opening.

Wilwood Rear TX4R Kit in Red for GM 1500 Trucks/SUVs (1999–2020), 16-Inch GT Slotted Brake Rotors

SKU: 140-16861-R

$2,837.66 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

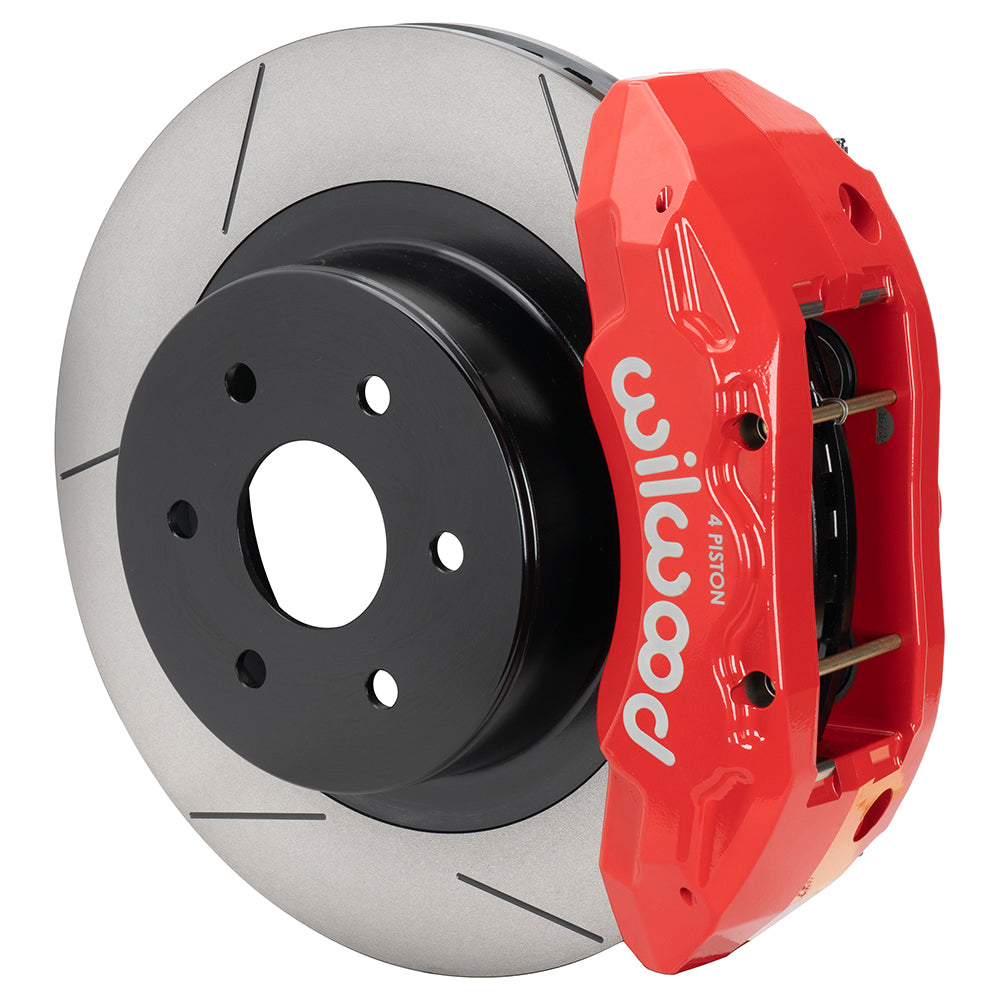

TX4R four-piston rear calipers and 16.00-inch one-piece rotors replace the specified GM truck rear service brakes while retaining the factory parking-brake components. This kit uses the existing axle hubs and requires separately selected hydraulic flexlines. Red calipers and 16.00-inch GT slotted rotors are the selected configuration. Based in Camarillo, California, Wilwood Engineering was established by Bill Wood in 1977. Its disc brake systems serve motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are matched to the requirements of the whole system.

Technical Details

  • Manufacturer part number: 140-16861-R. One kit for the documented axle/application.
  • Rotors: 16.00-inch outside diameter × 1.25-inch thickness, GT slotted faces, Iron material.
  • Calipers: TX4R, 4 pistons, stainless piston material. Radial mount and red powder coat finish.
  • Published piston bores: 1.62, 1.38 inches. Included pads: BP-22.
  • Matching existing wheel hubs are retained; replacement hubs are not included.
  • Hydraulic inlet: 1/8-27 NPT.
  • Nominal wheel minimum: 20 inches; verify the complete caliper profile against the wheel drawing.
  • Flexlines are not included. Choose the required hydraulic hoses and adapters separately.
  • Retains the specified original parking-brake components; it does not supply new parking shoes, cables or electric actuators.

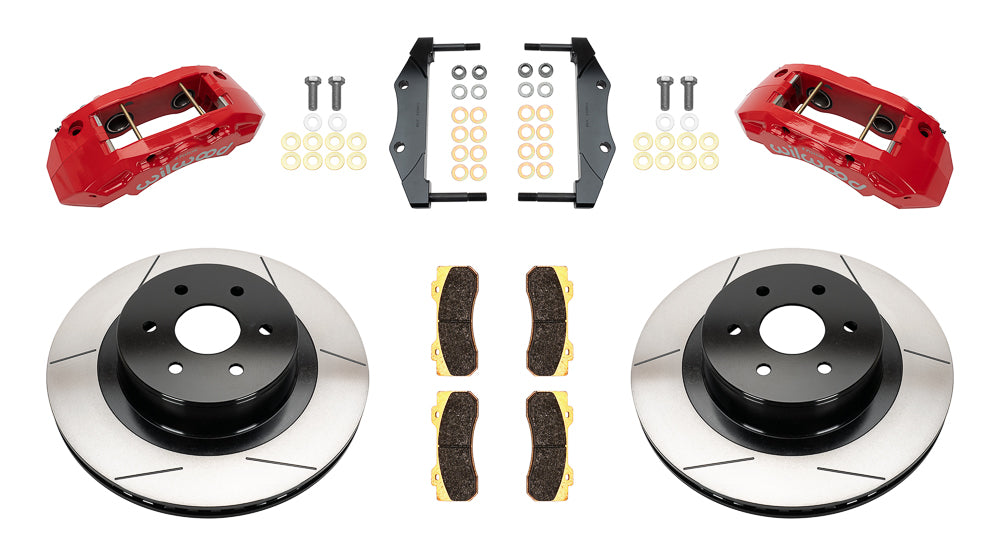

  • Pads and mounting hardware are included. Spindles, master cylinder and brake booster are separate.

Fitment & Compatibility

Match the exact OE rear-brake configuration and axle, especially the single-piston versus HD dual-piston distinctions. The table names Chevrolet Silverado 1500 Pickup/1500/1500 LD, Tahoe, Avalanche, Suburban 1500/Suburban; GMC Sierra 1500 Pickup/1500/1500 Limited, Yukon, Yukon XL 1500/Yukon XL; and Cadillac Escalade, Escalade EXT and Escalade ESV. Year coverage varies by model within 1999–2020, with Classic/New Style, police and four-wheel-steering restrictions. Dust-shield trimming is required, and the original parking-brake mechanism must remain serviceable. Confirm all year, model and brake-package details against the application table below, including the notes attached to each row.

PMB Performance has 20+ years of experience with parts and fitment details. Share your current brake setup, intended use and mounting measurements so we can help check the complete installation.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
