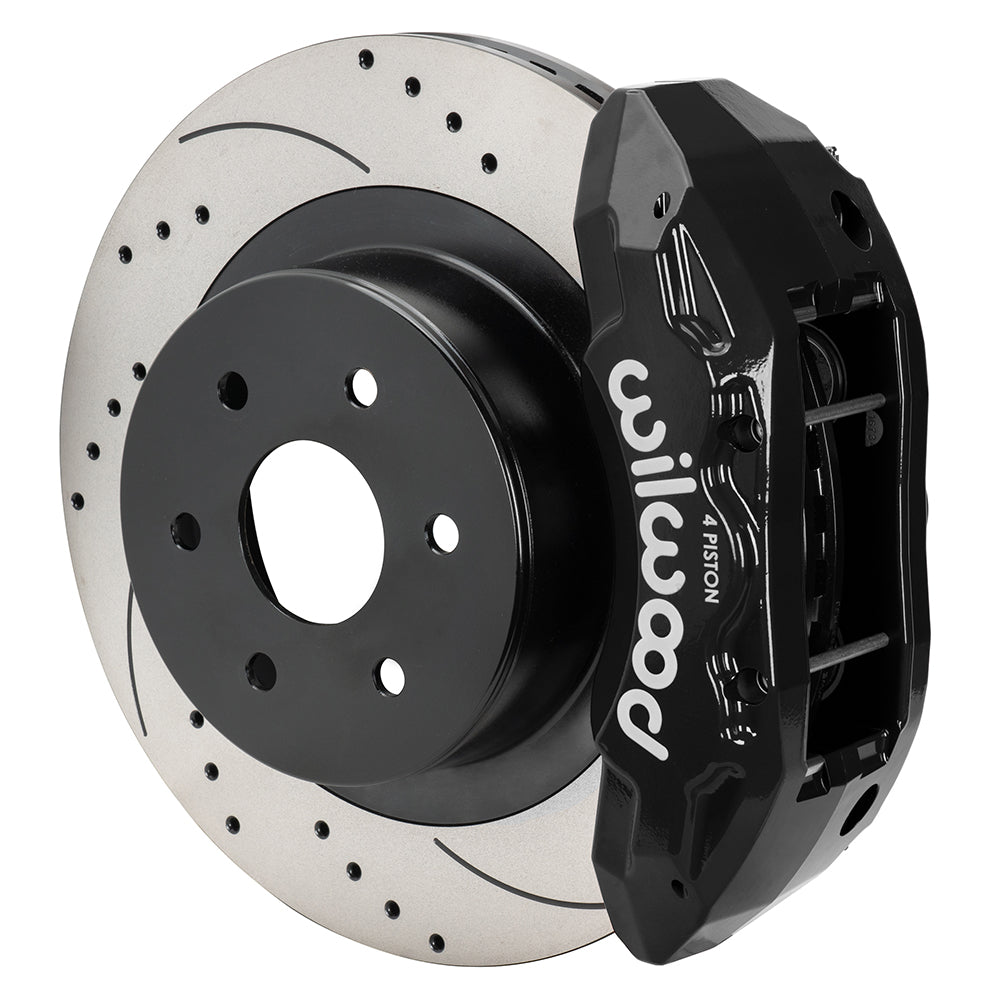

Wilwood Rear TX4R Brake Kit for GM 1500 Trucks/SUVs (1999–2020), Black Calipers / Drilled/Slotted Rotors at 16 Inches

SKU: 140-16861-D

$2,837.66 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Black calipers and 16.00-inch SRP drilled & slotted rotors are the selected configuration. TX4R four-piston rear calipers and 16.00-inch one-piece rotors replace the specified GM truck rear service brakes while retaining the factory parking-brake components. This kit uses the existing axle hubs and requires separately selected hydraulic flexlines. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company makes disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Each component must suit the surrounding brake system.

Technical Details

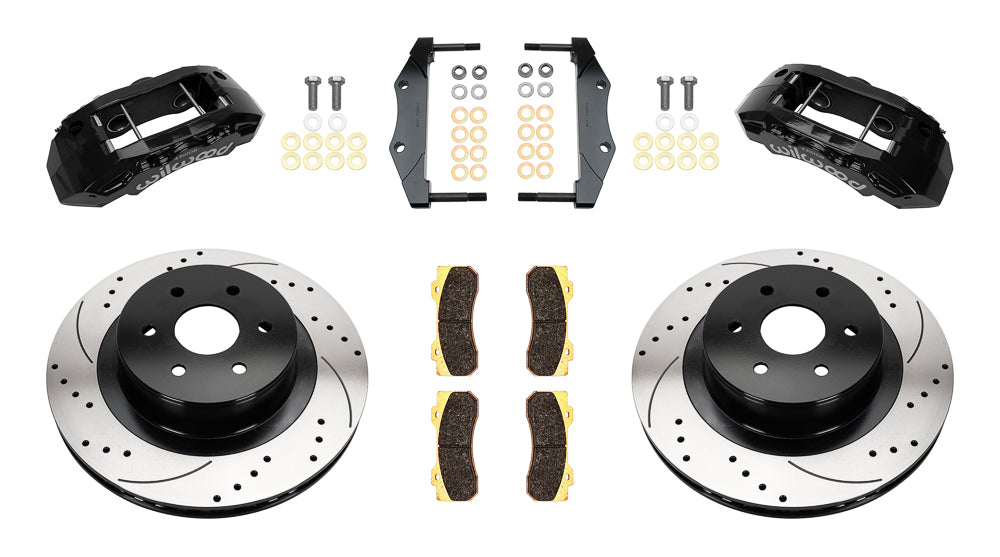

  • Product identification: Wilwood 140-16861-D. Package quantity: one kit for the stated configuration.
  • The brake package includes pads and required mounting hardware, excluding spindles, master cylinder and booster.
  • Retains the specified original parking-brake components; it does not supply new parking shoes, cables or electric actuators.
  • Hydraulic line selection is a separate purchase. Check hose length, adapters and routing before assembly.
  • Check the wheel-clearance diagram before purchase; the nominal minimum wheel diameter is 20 inches.
  • Connect the hydraulic line through the 1/8-27 NPT caliper inlet.
  • This assembly leaves the documented wheel hubs in use. It supplies brake components rather than new hubs.
  • Piston sizing follows the published 1.62, 1.38-inch specification. The included brake-pad compound is BP-22.
  • Caliper selection is 4-piston TX4R. Body finish: black powder coat; attachment: radial; piston material: stainless.
  • Rotor package uses SRP Drilled Rotor & Hat components. Each is 1.25 inch thick with 16.00-inch diameter and SRP drilled & slotted faces. Published material: Iron.

Fitment & Compatibility

Match the exact OE rear-brake configuration and axle, especially the single-piston versus HD dual-piston distinctions. The table names Chevrolet Silverado 1500 Pickup/1500/1500 LD, Tahoe, Avalanche, Suburban 1500/Suburban; GMC Sierra 1500 Pickup/1500/1500 Limited, Yukon, Yukon XL 1500/Yukon XL; and Cadillac Escalade, Escalade EXT and Escalade ESV. Year coverage varies by model within 1999–2020, with Classic/New Style, police and four-wheel-steering restrictions. Dust-shield trimming is required, and the original parking-brake mechanism must remain serviceable. Read the fitment table below for the exact year and option combination; do not apply one row's restrictions to another vehicle.

For help selecting the correct brake package, give PMB Performance the vehicle details and measurements of the installed hardware. Our 20+ years of parts experience help resolve fitment beyond a model name alone.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1999, 2001 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ OE Single Piston Rear Brake Disc Disc Rear Kit 1, 2, 3, 4
1999, 2001 GMC Sierra 1500 Pickup 6 Lug - All w/ OE Single Piston Rear Brake Disc Disc Rear Kit 1, 2, 3, 4
2000 Chevrolet Silverado 1500 Pickup All w/ OE Single Piston Rear Brake Disc Disc Rear Kit 1, 2, 3, 4
2000 GMC Sierra 1500 Pickup All w/ OE Single Piston Rear Brake Disc Disc Rear Kit 1, 2, 3, 4
2001 Chevrolet Tahoe 6 Lug - All w/ OE Single Piston Rear Brake Disc Disc Rear Kit 1, 2, 3, 4
2001 GMC Yukon 6 Lug - All w/ OE Single Piston Rear Brake Disc Disc Rear Kit 1, 2, 3, 4
2002-2005 Cadillac Escalade 6 Lug - 4 x 2 w/ out 4 Wheel Steering Disc Disc Rear Kit 1, 2, 3, 4
2002-2005 Cadillac Escalade 6 Lug - 4 x 4 w/ out 4 Wheel Steering Disc Disc Rear Kit 1, 2, 3, 4
2002-2004 Cadillac Escalade EXT 6 Lug - 4 x 2 w/ out 4 Wheel Steering Disc Disc Rear Kit 1, 2, 3, 4
2002-2004 Cadillac Escalade EXT 6 Lug - 4 x 4 w/ out 4 Wheel Steering Disc Disc Rear Kit 1, 2, 3, 4
2002-2006 Chevrolet Silverado 1500 Pickup 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake Disc Disc Rear Kit 1, 2, 3, 4
2002-2006 Chevrolet Silverado 1500 Pickup 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake Disc Disc Rear Kit 1, 2, 3, 4
2002-2006 GMC Sierra 1500 Pickup 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake Disc Disc Rear Kit 1, 2, 3, 4
2002-2006 GMC Sierra 1500 Pickup 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake Disc Disc Rear Kit 1, 2, 3, 4
2002 GMC Yukon 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake Disc Disc Rear Kit 1, 2, 3, 4
2002 GMC Yukon 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake Disc Disc Rear Kit 1, 2, 3, 4
2006 Cadillac Escalade 6 Lug - 4 x 2 Disc Disc Rear Kit 1, 2, 3, 4
2006 Cadillac Escalade 6 Lug - 4 x 4 Disc Disc Rear Kit 1, 2, 3, 4
2007 Cadillac Escalade 6 Lug - All Disc Disc Rear Kit 1, 5, 3, 4
2007 Cadillac Escalade ESV 6 Lug - All Disc Disc Rear Kit 1, 5, 3, 4
2007 Cadillac Escalade EXT 6 Lug - All Disc Disc Rear Kit 1, 5, 3, 4
2007 Chevrolet Avalanche 6 Lug - All Disc Disc Rear Kit 1, 5, 3, 4
2007 Chevrolet Silverado 1500 Pickup 6 Lug - Classic Style w/ OE Single Piston Rear Disc Disc Rear Kit 1, 5, 3, 4
2007 Chevrolet Silverado 1500 Pickup 6 Lug - New Style w/ Disc Rear Disc Disc Rear Kit 1, 5, 3, 4
2007 Chevrolet Suburban 1500 6 Lug - All Disc Disc Rear Kit 1, 5, 3, 4
2007 Chevrolet Tahoe 6 Lug - All execpt Police Disc Disc Rear Kit 1, 5, 3, 4
2007 Chevrolet Tahoe 6 Lug - Police package Disc Disc Rear Kit 1, 6, 5, 3, 4
2007 GMC Sierra 1500 Pickup 6 Lug - Classic Style w/ OE 2 Piston Rear Disc Disc Rear Kit 1, 5, 3, 4
2007 GMC Sierra 1500 Pickup 6 Lug - Classic Style w/ OE Single Piston Rear Disc Disc Rear Kit 1, 5, 3, 4
2007 GMC Sierra 1500 Pickup 6 Lug - New Style w/ Disc Rear Disc Disc Rear Kit 1, 5, 3, 4
2007 GMC Yukon 6 Lug - All Disc Disc Rear Kit 1, 5, 3, 4
2007 GMC Yukon XL 1500 6 Lug - All Disc Disc Rear Kit 1, 5, 3, 4
2008 Cadillac Escalade 6 Lug - All (w/ finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Cadillac Escalade 6 Lug - All (w/o finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Cadillac Escalade ESV 6 Lug - All (w/ finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Cadillac Escalade ESV 6 Lug -All (w/o finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Cadillac Escalade EXT 6 Lug - All (w/ finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Cadillac Escalade EXT 6 Lug - All (w/o finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Chevrolet Avalanche 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Chevrolet Avalanche 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Chevrolet Avalanche 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Chevrolet Avalanche 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008-2010 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ Disc Rear, except Police Package Disc Disc Rear Kit 1, 5, 3, 4
2008-2010 Chevrolet Silverado 1500 Pickup 6 Lug - Police Package w/ Disc Rear Disc Disc Rear Kit 1, 5, 3, 4
2008 Chevrolet Suburban 1500 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Chevrolet Suburban 1500 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Chevrolet Suburban 1500 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Chevrolet Suburban 1500 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Chevrolet Tahoe 6 Lug - All except Police (w/o finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Chevrolet Tahoe 6 Lug - All including Police (w/ finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 Chevrolet Tahoe 6 Lug - Police package (w/o finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008-2010 GMC Sierra 1500 Pickup 6 Lug - All w/ Disc Rear, except Police Package Disc Disc Rear Kit 1, 5, 3, 4
2008-2010 GMC Sierra 1500 Pickup 6 Lug - Police Package w/ Disc Rear Disc Disc Rear Kit 1, 5, 3, 4
2008 GMC Yukon 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 GMC Yukon 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 GMC Yukon 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 GMC Yukon 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 GMC Yukon XL 1500 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 GMC Yukon XL 1500 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 GMC Yukon XL 1500 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2008 GMC Yukon XL 1500 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Rear Kit 1, 5, 3, 4
2009 Cadillac Escalade 6 Lug -All Disc Disc Rear Kit 1, 5, 3, 4
2009 Cadillac Escalade ESV 6 Lug -All Disc Disc Rear Kit 1, 5, 3, 4
2009 Cadillac Escalade EXT 6 Lug -All Disc Disc Rear Kit 1, 5, 3, 4
2009 Chevrolet Avalanche 6 Lug -All Disc Disc Rear Kit 1, 5, 3, 4
2009-2013 Chevrolet Suburban 1500 6 Lug - 4 x 2 Disc Disc Rear Kit 1, 5, 3, 4
2009-2013 Chevrolet Suburban 1500 6 Lug - 4 x 4 Disc Disc Rear Kit 1, 5, 3, 4
2009-2013 Chevrolet Tahoe 6 Lug - 4 x 2 All w/ Rear Disc Brake Disc Disc Rear Kit 1, 5, 3, 4
2009-2013 Chevrolet Tahoe 6 Lug - 4 x 4 All w/ Rear Disc Brake Disc Disc Rear Kit 1, 5, 3, 4
2009-2012 GMC Yukon 6 Lug - 4 x 2 Disc Disc Rear Kit 1, 5, 3, 4
2009-2011, 2013 GMC Yukon 6 Lug - 4 x 4 Disc Disc Rear Kit 1, 5, 3, 4
2009-2012 GMC Yukon XL 1500 6 Lug - 4 x 2 Disc Disc Rear Kit 1, 5, 3, 4
2009-2011, 2013 GMC Yukon XL 1500 6 Lug - 4 x 4 Disc Disc Rear Kit 1, 5, 3, 4
2010-2012 Cadillac Escalade 6 Lug - 4 x 2 Disc Disc Rear Kit 1, 5, 3, 4
2010-2011, 2013 Cadillac Escalade 6 Lug - 4 x 4 Disc Disc Rear Kit 1, 5, 3, 4
2010-2012 Cadillac Escalade ESV 6 Lug - 4 x 2 Disc Disc Rear Kit 1, 5, 3, 4
2010-2011, 2013 Cadillac Escalade ESV 6 Lug - 4 x 4 Disc Disc Rear Kit 1, 5, 3, 4
2010-2012 Cadillac Escalade EXT 6 Lug - 4 x 2 Disc Disc Rear Kit 1, 5, 3, 4
2010-2011, 2013 Cadillac Escalade EXT 6 Lug - 4 x 4 Disc Disc Rear Kit 1, 5, 3, 4
2010-2013 Chevrolet Avalanche 6 Lug - 4 x 2 Disc Disc Rear Kit 1, 5, 3, 4
2010-2013 Chevrolet Avalanche 6 Lug - 4 x 4 Disc Disc Rear Kit 1, 5, 3, 4
2011-2013 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ Rear Disc Brake Disc Disc Rear Kit 1, 5, 3, 4
2011-2013 GMC Sierra 1500 Pickup 6 Lug - All w/ Rear Disc Brake Disc Disc Rear Kit 1, 5, 3, 4
2014-2020 Cadillac Escalade Base Base Disc Disc Rear Kit 1, 5, 3, 4
2014-2020 Cadillac Escalade Luxury Luxury Disc Disc Rear Kit 1, 5, 3, 4
2014, 2016-2020 Cadillac Escalade Platinum Platinum Disc Disc Rear Kit 1, 5, 3, 4
2014-2017 Cadillac Escalade Premium Premium Disc Disc Rear Kit 1, 5, 3, 4
2014-2020 Cadillac Escalade ESV Base Base Disc Disc Rear Kit 1, 5, 3, 4
2014-2020 Cadillac Escalade ESV Luxury Luxury Disc Disc Rear Kit 1, 5, 3, 4
2014, 2016-2020 Cadillac Escalade ESV Platinum Platinum Disc Disc Rear Kit 1, 5, 3, 4
2014-2017 Cadillac Escalade ESV Premium Premium Disc Disc Rear Kit 1, 5, 3, 4
2014 Chevrolet Silverado 1500 Pickup 6 Lug - All Disc Disc Rear Kit 1, 5, 3, 4
2014 Chevrolet Suburban 1500 LS LS Disc Disc Rear Kit 1, 5, 3, 4
2014 Chevrolet Suburban 1500 LT LT Disc Disc Rear Kit 1, 5, 3, 4
2014 Chevrolet Suburban 1500 LTZ LTZ Disc Disc Rear Kit 1, 5, 3, 4
2014-2020 Chevrolet Tahoe LS LS Disc Disc Rear Kit 1, 5, 3, 4
2014-2020 Chevrolet Tahoe LT LT Disc Disc Rear Kit 1, 5, 3, 4
2014-2016 Chevrolet Tahoe LTZ LTZ Disc Disc Rear Kit 1, 5, 3, 4
2014 GMC Sierra 1500 Pickup 6 Lug - All Disc Disc Rear Kit 1, 5, 3, 4
2014-2020 GMC Yukon Denali Denali Disc Disc Rear Kit 1, 5, 3, 4
2014-2020 GMC Yukon SLE SLE Disc Disc Rear Kit 1, 5, 3, 4
2014-2020 GMC Yukon SLT SLT Disc Disc Rear Kit 1, 5, 3, 4
2014 GMC Yukon XL 1500 Denali Denali Disc Disc Rear Kit 1, 5, 3, 4
2014 GMC Yukon XL 1500 SLE SLE Disc Disc Rear Kit 1, 5, 3, 4
2014 GMC Yukon XL 1500 SLT SLT Disc Disc Rear Kit 1, 5, 3, 4
2015-2018 Chevrolet Silverado 1500 High Country High Country Disc Disc Rear Kit 1, 5, 3, 4
2015-2018 Chevrolet Silverado 1500 LT LT Disc Disc Rear Kit 1, 5, 3, 4
2015-2018 Chevrolet Silverado 1500 LTZ LTZ Disc Disc Rear Kit 1, 5, 3, 4
2015-2018 Chevrolet Silverado 1500 WT WT Disc Disc Rear Kit 1, 5, 3, 4
2015-2020 Chevrolet Suburban LS LS Disc Disc Rear Kit 1, 5, 3, 4
2015-2020 Chevrolet Suburban LT LT Disc Disc Rear Kit 1, 5, 3, 4
2015-2016 Chevrolet Suburban LTZ LTZ Disc Disc Rear Kit 1, 5, 3, 4
2015-2018 GMC Sierra 1500 Base Base Disc Disc Rear Kit 1, 5, 3, 4
2015-2018 GMC Sierra 1500 Denali Denali Disc Disc Rear Kit 1, 5, 3, 4
2015-2018 GMC Sierra 1500 SLE SLE Disc Disc Rear Kit 1, 5, 3, 4
2015-2018 GMC Sierra 1500 SLT SLT Disc Disc Rear Kit 1, 5, 3, 4
2015-2020 GMC Yukon XL Denali Denali Disc Disc Rear Kit 1, 5, 3, 4
2015-2020 GMC Yukon XL SLE SLE Disc Disc Rear Kit 1, 5, 3, 4
2015-2020 GMC Yukon XL SLT SLT Disc Disc Rear Kit 1, 5, 3, 4
2016-2018 Chevrolet Silverado 1500 LS LS Disc Disc Rear Kit 1, 5, 3, 4
2016-2018 Chevrolet Silverado 1500 SSV SSV Disc Disc Rear Kit 1, 5, 3, 4
2016-2020 Chevrolet Tahoe PPV PPV Disc Disc Rear Kit 1, 5, 3, 4
2016-2020 Chevrolet Tahoe SSV SSV Disc Disc Rear Kit 1, 5, 3, 4
2017-2018 Chevrolet Silverado 1500 Custom Custom Disc Disc Rear Kit 1, 5, 3, 4
2017-2020 Chevrolet Suburban Premier Premier Disc Disc Rear Kit 1, 5, 3, 4
2017-2020 Chevrolet Tahoe Premier Premier Disc Disc Rear Kit 1, 5, 3, 4
2018-2020 Cadillac Escalade Premium Luxury Premium Luxury Disc Disc Rear Kit 1, 5, 3, 4
2018-2020 Cadillac Escalade ESV Premium Luxury Premium Luxury Disc Disc Rear Kit 1, 5, 3, 4
2019 Chevrolet Silverado 1500 LD LT LT Disc Disc Rear Kit 1, 5, 3, 4
2019 Chevrolet Silverado 1500 LD WT WT Disc Disc Rear Kit 1, 5, 3, 4
2019 GMC Sierra 1500 Limited Base Base Disc Disc Rear Kit 1, 5, 3, 4
2019 GMC Sierra 1500 Limited SLE SLE Disc Disc Rear Kit 1, 5, 3, 4
