Wilwood Front 12.88-Inch Rotor Kit with Red FNSL6R Calipers for Honda Civic/Acura Integra (2013–2024), GT Slotted

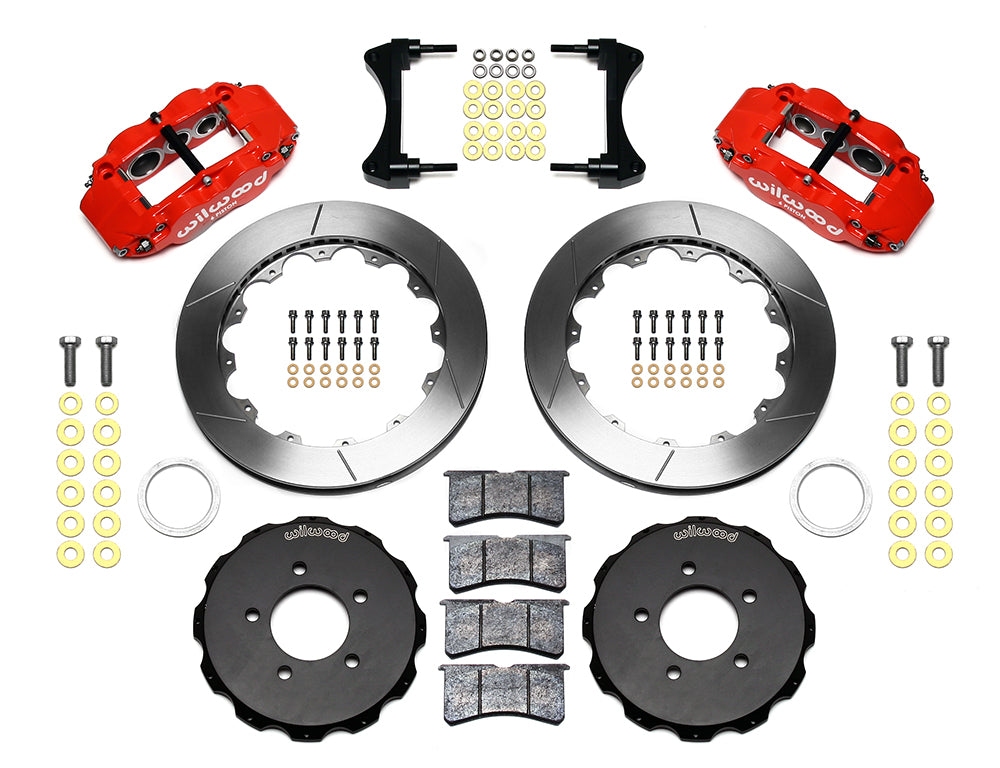

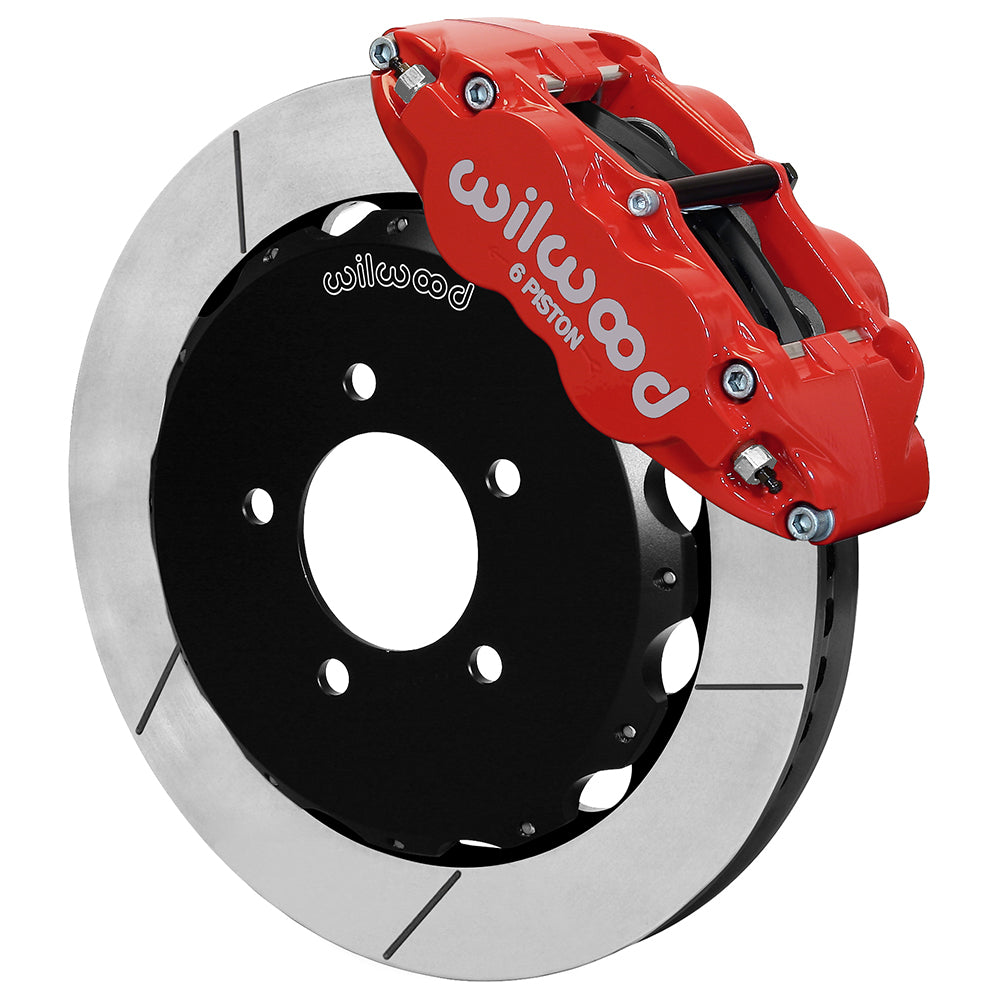

The street FNSL6R front package combines six-piston Superlite calipers, 12.88-inch rotors, separate hats and braided flexlines. BP-10 pads and stainless pistons distinguish this configuration from the related road-race assembly. Red calipers and 12.88-inch GT slotted rotors are the selected configuration. Based in Camarillo, California, Wilwood Engineering was established by Bill Wood in 1977. Its disc brake systems serve motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are matched to the requirements of the whole system.

Technical Details

• Kit reference: Wilwood manufacturer part number 140-16847-R. Supplied quantity is one kit.
• The brake package includes pads and required mounting hardware, excluding spindles, master cylinder and booster.
• The kit supplies braided flexlines (220-12016). Confirm their chassis-end fit and routing on the actual vehicle.
• Check the wheel-clearance diagram before purchase; the nominal minimum wheel diameter is 17 inches.
• Connect the hydraulic line through the 1/8-27 NPT caliper inlet.
• This assembly leaves the documented wheel hubs in use. It supplies brake components rather than new hubs.
• Rotor-hat stud-hole patterns are 5 X 4.50, 5 x 4.75 inches, separate from the retained hub wheel-pattern specification.
• The rotor assembly uses 0.540-inch-offset aluminum hats finished in black e-coat.
• BP-10 pads are included. The manufacturer lists piston bores of 1.62, 1.12, 1.12 inches.
• Braking is provided by 6-piston Forged Narrow Superlite 6R calipers, finished in red powder coat. Pistons are stainless; the mounting arrangement is radial.
• GT Slotted rotor selection, 12.88 inches in diameter and 1.10 inch wide. The specified material is Spec-37 Iron.

Fitment & Compatibility

Use the exact Civic and Integra rows below: Honda Civic trims have individual ranges within 2013–2024, while Acura Integra Base and A-Spec are listed for 2023. The retained hub register, mounting bosses and wheel dimensions must match the kit. The installation sheet notes that the Civic factory line/ABS bracket may need its hole enlarged for the new M10 flexline fitting. Confirm all year, model and brake-package details against the application table below, including the notes attached to each row.

PMB Performance has 20+ years of experience with parts and fitment details. Share your current brake setup, intended use and mounting measurements so we can help check the complete installation.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
