Wilwood Front 12.19-Inch Rotor Kit with Red Dynapro 6 Calipers for Chrysler PT Cruiser/Dodge Neon SRT-4 (2001–2010), Drilled/Slotted

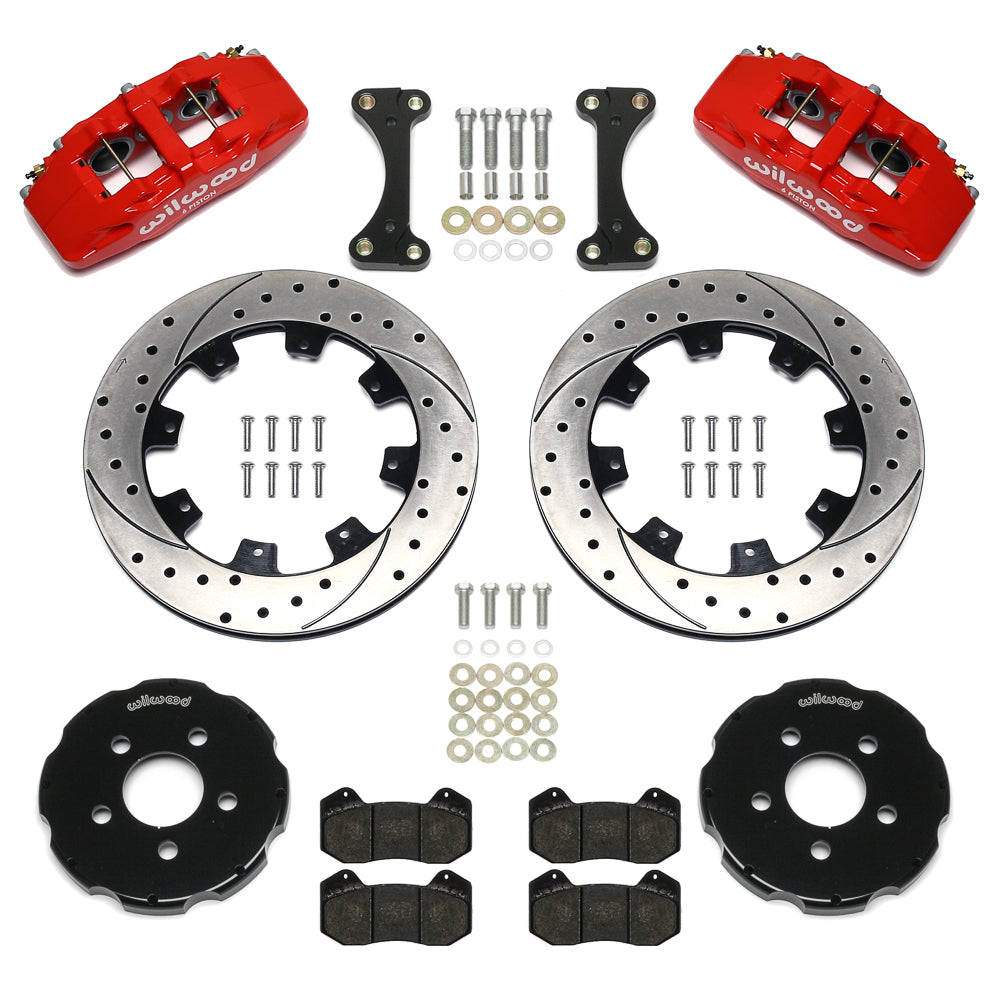

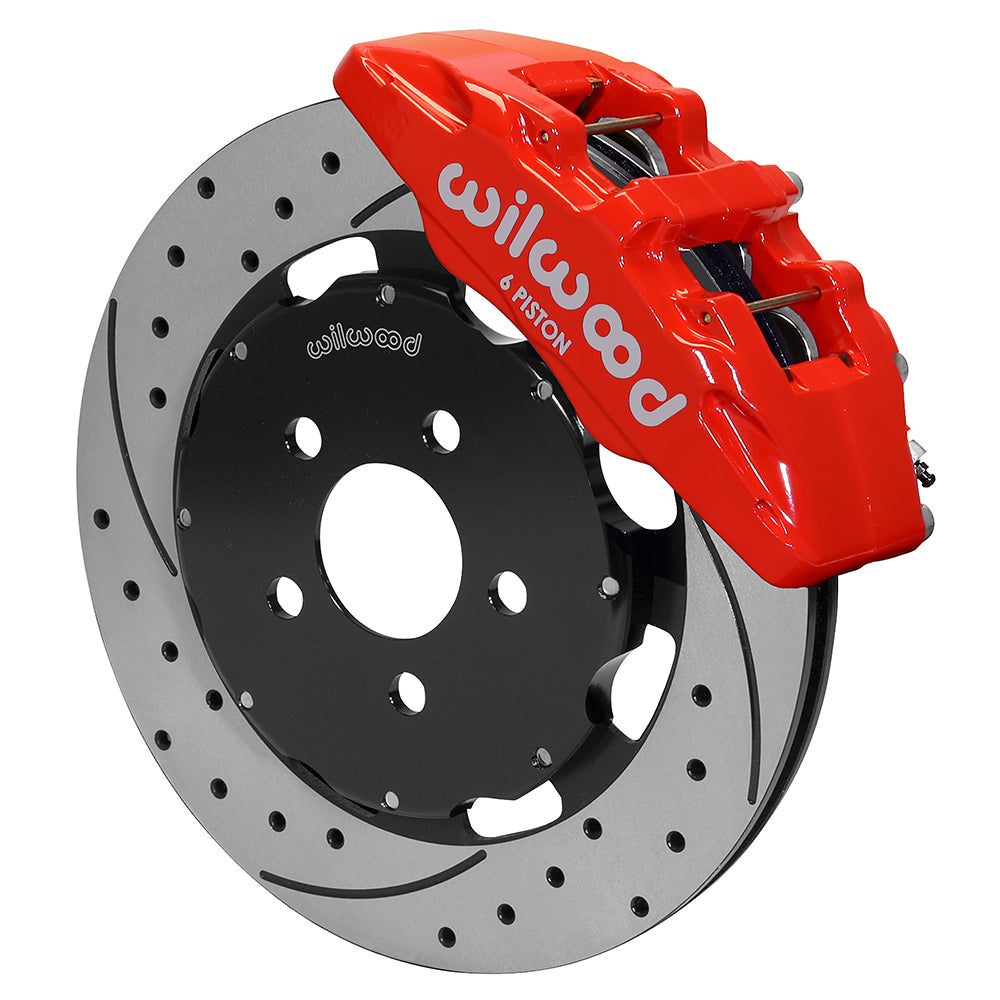

The Dynapro 6 front brake kit combines six-piston lug-mount calipers with 12.19-inch rotors and separate short-offset hats. Red calipers and 12.19-inch SRP drilled & slotted rotors are the selected configuration. It is a conversion for the documented PT Cruiser and Neon SRT-4 front hub/upright arrangement. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems, with selection governed by the complete brake installation.

Technical Details

• The Wilwood manufacturer part number is 140-16827-DR. This product is sold as a kit.
• The red powder coat caliper bodies are Dynapro 6 units with 6 pistons. Stainless pistons and lug mounts are specified.
• 12.19-inch rotors are supplied in the SRP drilled & slotted configuration; the published thickness is 0.81 inch. These rotors use Iron.
• Friction material supplied is BP-10; the caliper bore measurements are 1.62, 1.12, 1.12 inches.
• A 0.500-inch hat offset locates each rotor ring. Hats use aluminum construction and black e-coat finish.
• The hat stud holes are drilled for 5 x 3.93 inches. This does not alter the wheel pattern of the retained hub.
• The original hub arrangement must be retained or provided separately. No replacement wheel hubs come with the kit.
• Caliper inlet thread is 1/8-27 NPT.
• Published minimum rim diameter is 15 inches. Use the template to check spoke clearance as well.
• Provide suitable flexible hoses and caliper/chassis fittings; the brake kit does not supply flexlines.
• Supplied items include the pads and mounting fasteners; no replacement spindle, master cylinder or booster is included.

Fitment & Compatibility

PT Cruiser entries span 2001–2010 with rear-drum and rear-disc configurations, including the specifically listed turbocharged versions. Neon SRT-4 coverage is 2003–2005 only; do not treat that as fitment for every Neon. Match the exact year and factory brake option, retained hub, hat register and wheel-clearance drawing. Some 15-inch wheels may clear, subject to the drawing. The table below preserves the individual vehicle and brake-option entries; select the complete matching row before ordering.

With over 20 years of parts and application experience, PMB Performance can help compare this assembly with your existing brakes. Supply the hub, axle or spindle specification and wheel-clearance information before ordering.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
