Wilwood Front AERO6-DM Brake and Flexline Kit for Ford F-150 SVT Raptor (2010–2014), Red with 13.38-Inch Drilled/Slotted Rotors

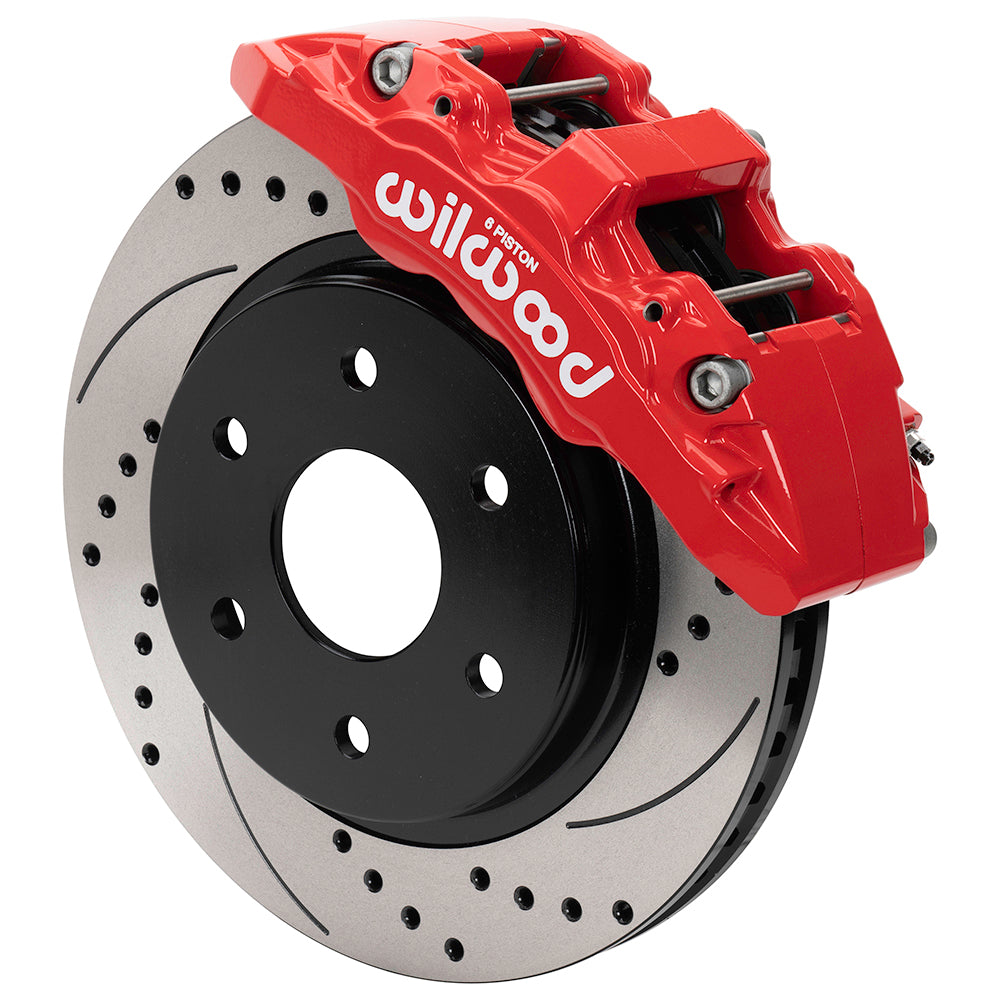

The first-generation SVT Raptor front package uses direct-mount AERO6-DM six-piston calipers, 13.38-inch rotors and Raptor-specific flexlines. Red calipers and 13.38-inch SRP drilled & slotted rotors are the selected configuration. It replaces the service brakes around the retained front hub. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems, with selection governed by the complete brake installation.

Technical Details

• Wilwood kit number 140-16807-DR; sold as the listed axle brake package.
• AERODM service calipers have 6 pistons and lug mounts. The finish is red powder coat; piston material is stainless.
• Caliper bore sizes are 1.75, 1.62, 1.62 inches; the axle pad set uses BP-22 compound.
• The original hub arrangement must be retained or provided separately. No replacement wheel hubs come with the kit.
• Caliper inlet thread is 1/8-27 NPT.
• Published minimum rim diameter is 17 inches. Use the template to check spoke clearance as well.
• Braided hydraulic hoses are supplied under reference 220-15837; verify connections and full suspension clearance.

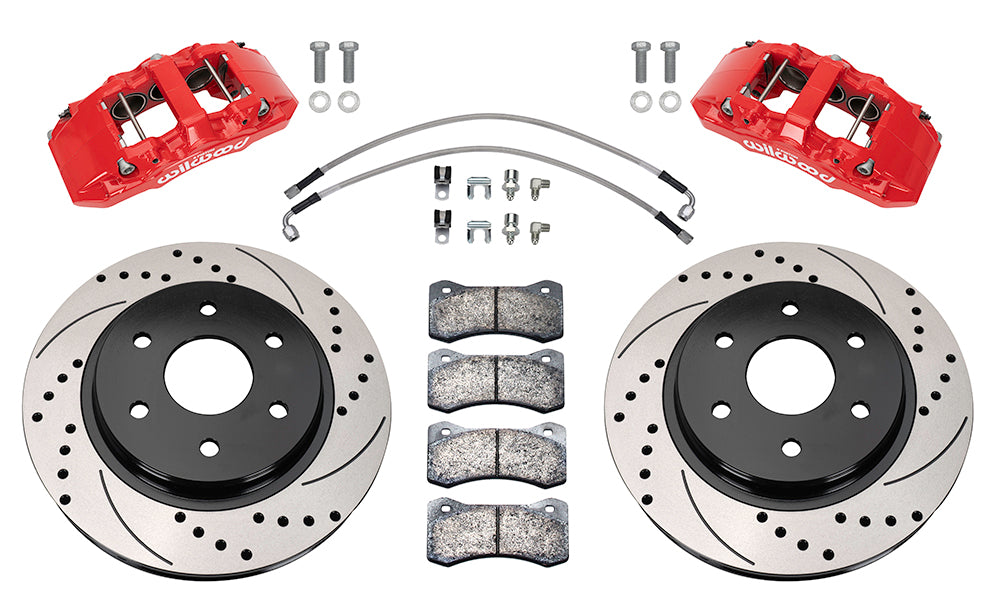

• Supplied items include the pads and mounting fasteners; no replacement spindle, master cylinder or booster is included.
• The supplied rotor measures 13.38 inches across and 1.25 inch thick. Surface configuration: SRP drilled & slotted; construction: Iron.

Fitment & Compatibility

The supplied application entry is Ford F-150 SVT Raptor 2010–2014. Match that Raptor spindle and hose arrangement rather than selecting a standard F-150 kit by rotor size alone. Factory dust-shield removal is part of the installation, and the selected wheels must clear Wilwood's 17-inch minimum template. The table below preserves the individual vehicle and brake-option entries; select the complete matching row before ordering.

With over 20 years of parts and application experience, PMB Performance can help compare this assembly with your existing brakes. Supply the hub, axle or spindle specification and wheel-clearance information before ordering.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
