Wilwood Front AERO6-DM Conversion with 13.38-Inch Drilled/Slotted Rotors and Red Calipers, Ford F-150/Expedition and Lincoln Navigator (2010–2020)

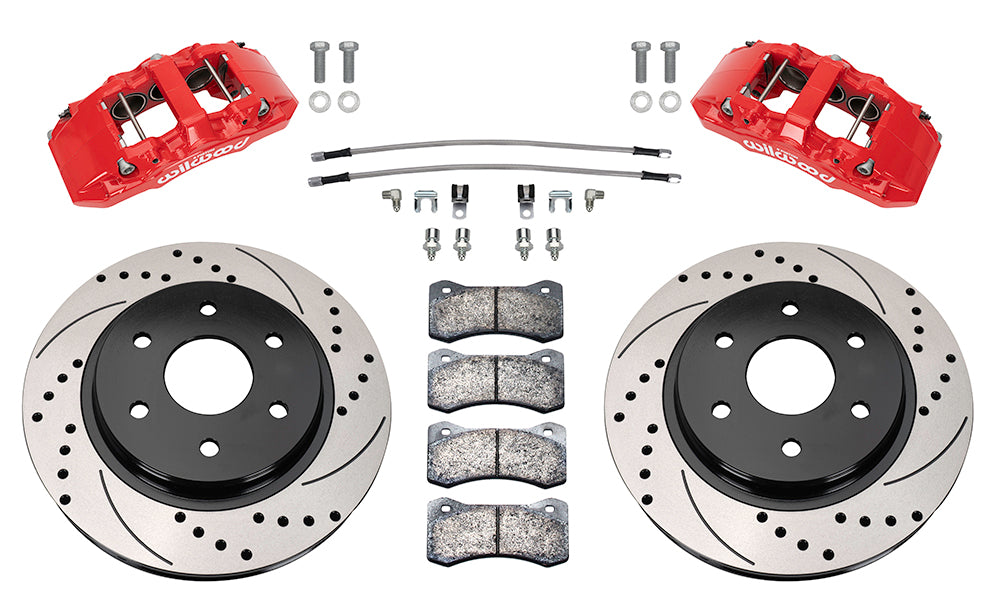

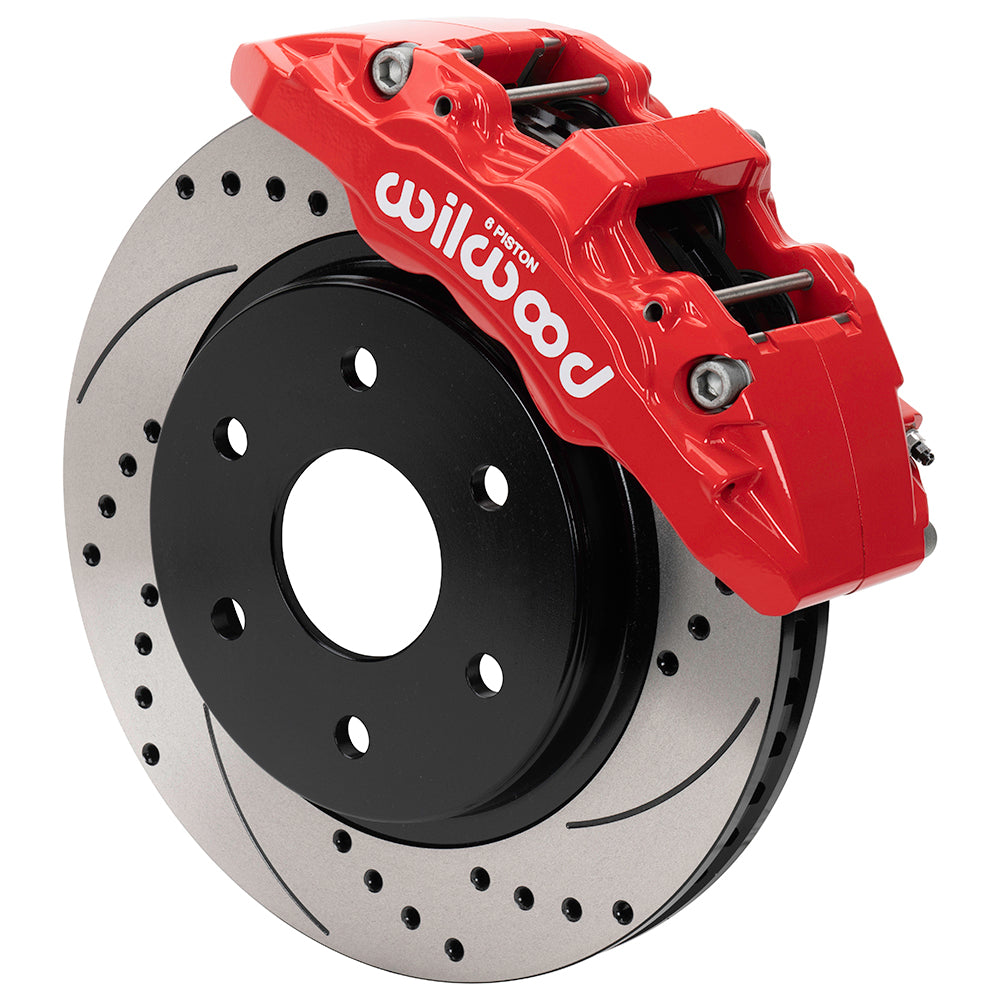

This AERO6-DM front conversion brings six-piston calipers and 13.38-inch one-piece rotors to the listed Ford/Lincoln six-lug applications. Red calipers and 13.38-inch SRP drilled & slotted rotors are the selected configuration. Braided hoses and BP-22 pads are included; the original wheel hub is retained. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems, with selection governed by the complete brake installation.

Technical Details

• Manufacturer part number: 140-16806-DR. One kit for the documented axle/application.
• Rotors: 13.38-inch outside diameter × 1.25-inch thickness, SRP drilled & slotted faces, Iron material.
• Calipers: AERODM, 6 pistons, stainless piston material. Lug mount and red powder coat finish.
• Published piston bores: 1.75, 1.62, 1.62 inches. Included pads: BP-22.
• Matching existing wheel hubs are retained; replacement hubs are not included.
• Hydraulic inlet: 1/8-27 NPT.
• Nominal wheel minimum: 17 inches; verify the complete caliper profile against the wheel drawing.
• Included braided flexline kit: 220-15263. Match its chassis fittings and final routing.
• Pads and mounting hardware are included. Spindles, master cylinder and brake booster are separate.

Fitment & Compatibility

The complete entries distinguish Ford F-150 2010–2020 from Ford Expedition and Lincoln Navigator 2010–2015. F-150 trim, drivetrain and manual/electric parking-brake variants must match the exact row. Raptor applications use their separately specified packages. The installation sheet requires factory dust-shield removal and the correct hose routing; place vehicles with EPB into the factory service mode before beginning. The table below preserves the individual vehicle and brake-option entries; select the complete matching row before ordering.

With over 20 years of parts and application experience, PMB Performance can help compare this assembly with your existing brakes. Supply the hub, axle or spindle specification and wheel-clearance information before ordering.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
