Wilwood Front Brake Conversion, Red AERO6-DM / Drilled/Slotted 13.38-Inch Package for GM 1500 Trucks/SUVs (2019–2026)

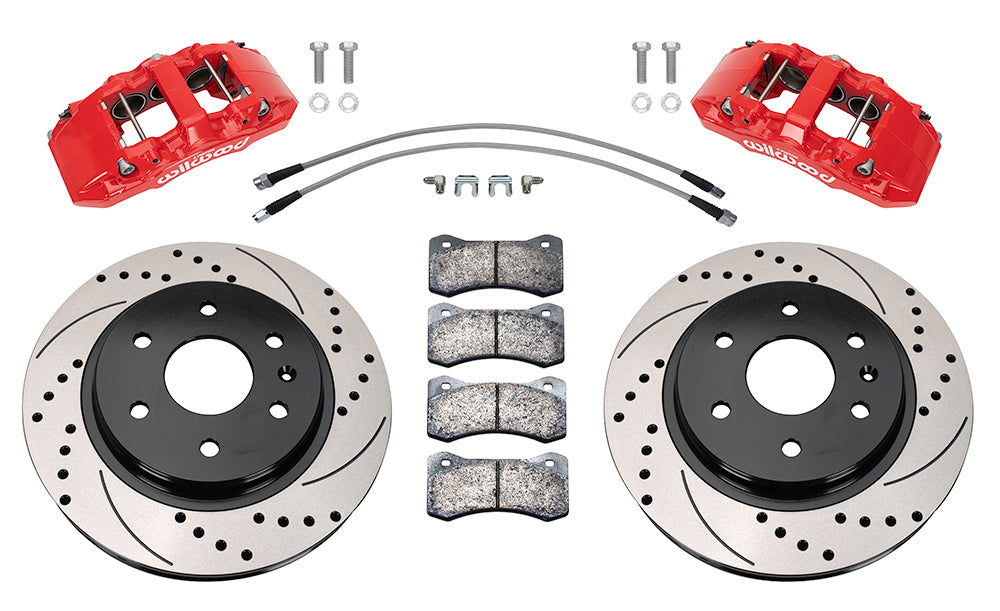

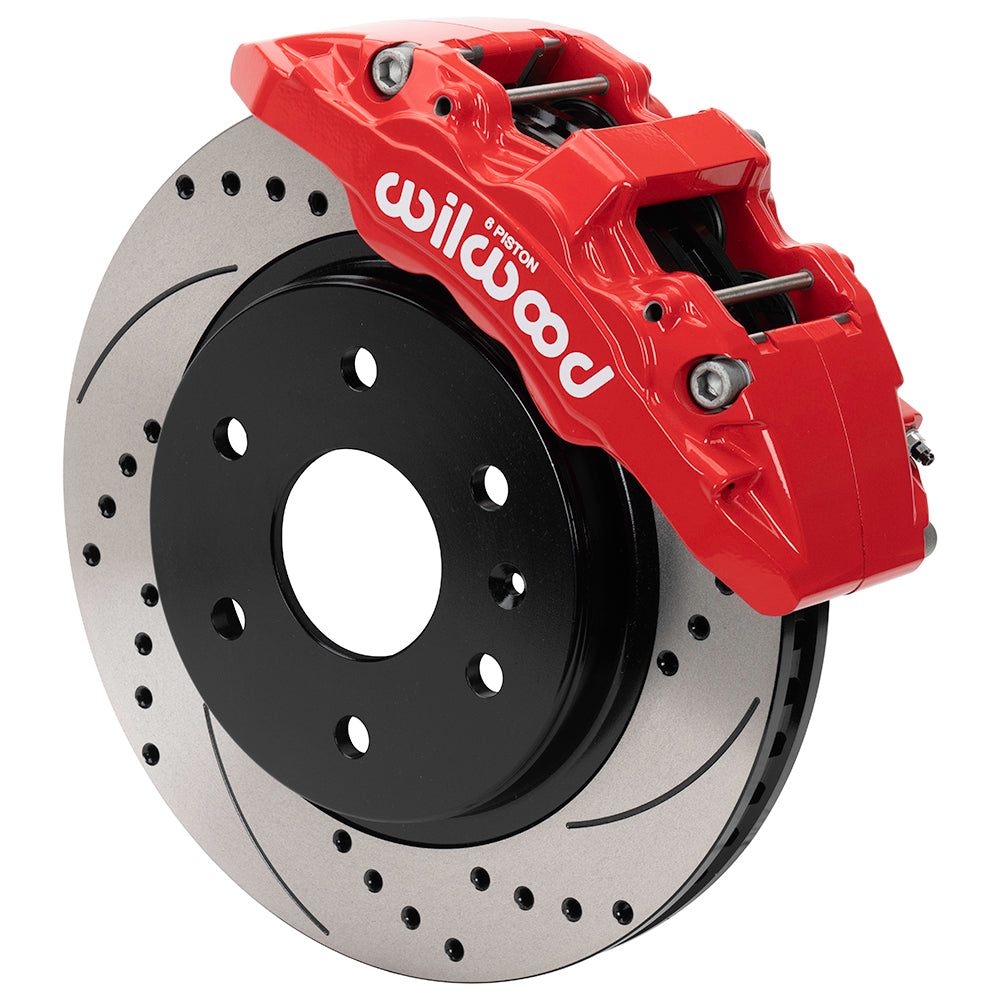

This current-generation GM front conversion places six-piston AERO6-DM calipers on the specified original uprights. Red calipers and 13.38-inch SRP drilled & slotted rotors are the selected configuration. Matching 13.38-inch one-piece rotors, BP-22 pads and braided flexlines form a front axle package for the detailed truck/SUV applications. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems, with selection governed by the complete brake installation.

Technical Details

• Kit supplied under manufacturer part number 140-16805-DR; one listed axle/application assembly.
• Each service caliper uses 6 stainless pistons and the AERODM body design. It attaches through lug mounts and carries a red powder coat finish.
• Verify the existing hub dimensions: replacement wheel hubs are outside the scope of this package.
• A 17-inch nominal wheel is the starting point. Its spoke and barrel shape must clear the actual brake assembly.
• Mounting hardware and brake pads come with the kit. Spindles, a master cylinder and a brake booster are not included.
• The rotor friction surfaces are SRP drilled & slotted. The assembly diameter is 13.38 inches; rotor width is 1.25 inch and material is Iron.
• An axle pad set in BP-22 compound accompanies the calipers, whose published bores are 1.75, 1.62, 1.62 inches.
• The specified caliper hydraulic connection is 1/8-27 NPT.
• Hose package 220-10979 is included. Keep the braided lines free of strain, abrasion and contact with moving parts.

Fitment & Compatibility

The table identifies Chevrolet Silverado 1500 and 1500 LTD, Suburban and Tahoe; GMC Sierra 1500 and 1500 Limited, Yukon and Yukon XL; and Cadillac Escalade and Escalade ESV. Pickup coverage begins in 2019; the listed SUVs begin in 2021, and individual trims have different end years through 2026. Confirm the exact entry and standard hub interface. Follow factory EPB service-mode procedures where fitted, secure the unused pad-sensor wire, and check whether the dust shield needs trimming. The table below preserves the individual vehicle and brake-option entries; select the complete matching row before ordering.

With over 20 years of parts and application experience, PMB Performance can help compare this assembly with your existing brakes. Supply the hub, axle or spindle specification and wheel-clearance information before ordering.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
