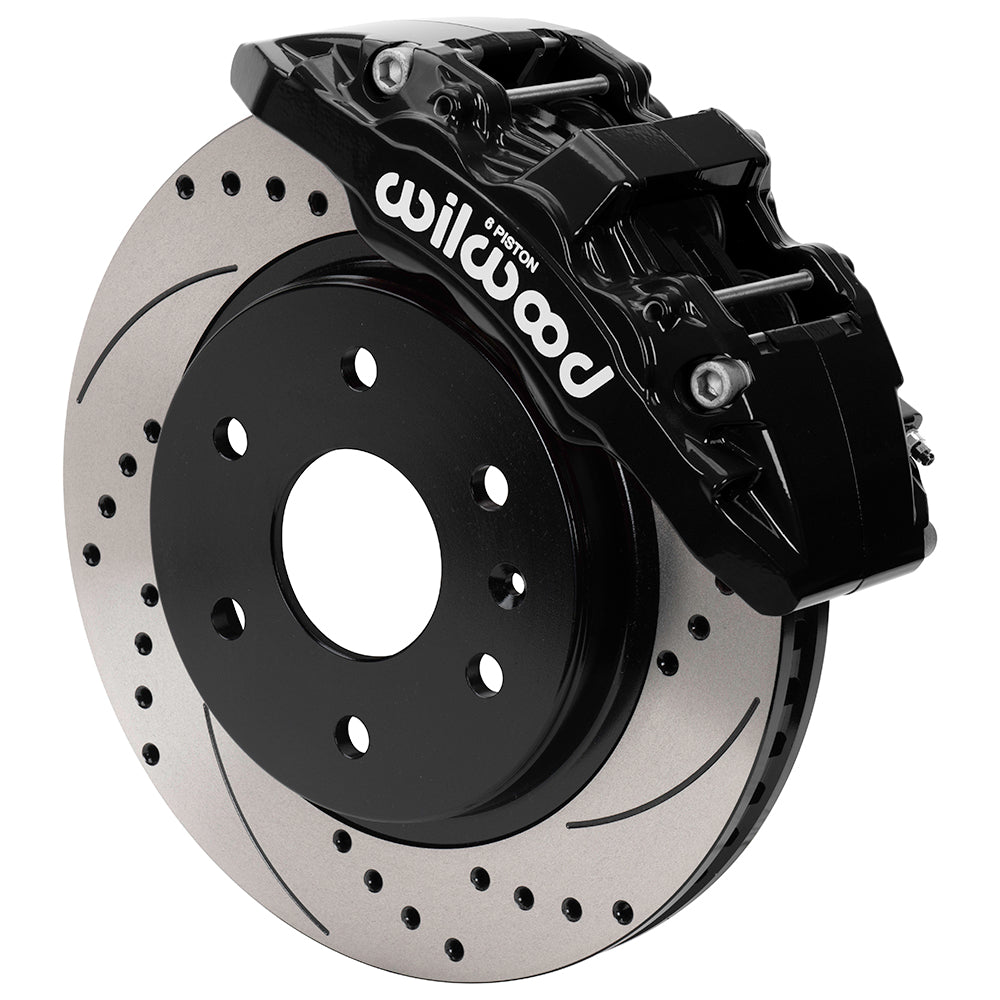

Wilwood Front Black AERO6-DM Brake Conversion for GM 1500 Trucks/SUVs (2019–2026), 13.38-Inch Drilled/Slotted Rotors

Black calipers and 13.38-inch SRP drilled & slotted rotors are the selected configuration. This current-generation GM front conversion places six-piston AERO6-DM calipers on the specified original uprights. Matching 13.38-inch one-piece rotors, BP-22 pads and braided flexlines form a front axle package for the detailed truck/SUV applications. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company makes disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Each component must suit the surrounding brake system.

Technical Details

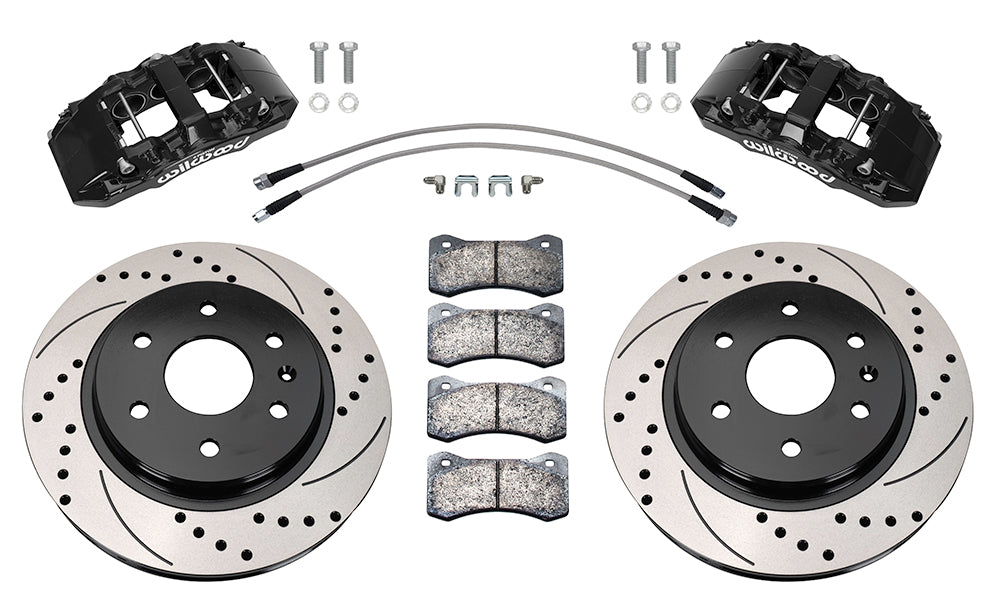

• Product identification: Wilwood 140-16805-D. Package quantity: one kit for the stated configuration.
• The brake package includes pads and required mounting hardware, excluding spindles, master cylinder and booster.
• The kit supplies braided flexlines (220-10979). Confirm their chassis-end fit and routing on the actual vehicle.
• Check the wheel-clearance diagram before purchase; the nominal minimum wheel diameter is 17 inches.
• Connect the hydraulic line through the 1/8-27 NPT caliper inlet.
• This assembly leaves the documented wheel hubs in use. It supplies brake components rather than new hubs.
• Piston sizing follows the published 1.75, 1.62, 1.62-inch specification. The included brake-pad compound is BP-22.
• Caliper selection is 6-piston AERODM. Body finish: black powder coat; attachment: lug; piston material: stainless.
• Rotor package uses SRP Drilled Rotor & Hat components. Each is 1.25 inch thick with 13.38-inch diameter and SRP drilled & slotted faces. Published material: Iron.

Fitment & Compatibility

The table identifies Chevrolet Silverado 1500 and 1500 LTD, Suburban and Tahoe; GMC Sierra 1500 and 1500 Limited, Yukon and Yukon XL; and Cadillac Escalade and Escalade ESV. Pickup coverage begins in 2019; the listed SUVs begin in 2021, and individual trims have different end years through 2026. Confirm the exact entry and standard hub interface. Follow factory EPB service-mode procedures where fitted, secure the unused pad-sensor wire, and check whether the dust shield needs trimming. Read the fitment table below for the exact year and option combination; do not apply one row's restrictions to another vehicle.

For help selecting the correct brake package, give PMB Performance the vehicle details and measurements of the installed hardware. Our 20+ years of parts experience help resolve fitment beyond a model name alone.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
