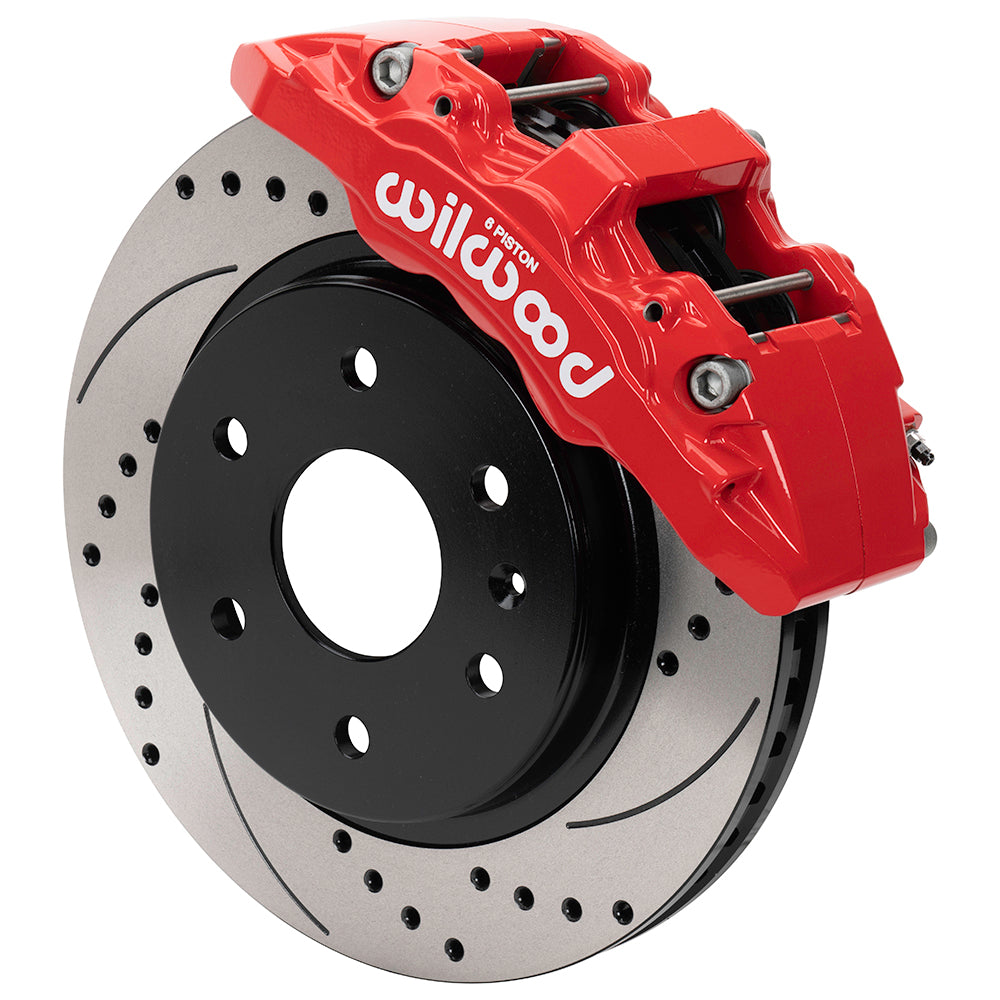

Wilwood Front Drilled/Slotted Brake Kit for GM 1500 Trucks/SUVs (2007–2020) with 13.38-Inch Rotors, Red AERO6-DM

For the listed later GM truck uprights, this front AERO6-DM package uses 13.38-inch slip-on rotors and six-piston direct-mount calipers. Red calipers and 13.38-inch SRP drilled & slotted rotors are the selected configuration. Its included 24-inch flexlines connect the new calipers while the original wheel hubs remain in place. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems, with selection governed by the complete brake installation.

Technical Details

• Product identification: Wilwood 140-16804-DR. Package quantity: one kit for the stated configuration.

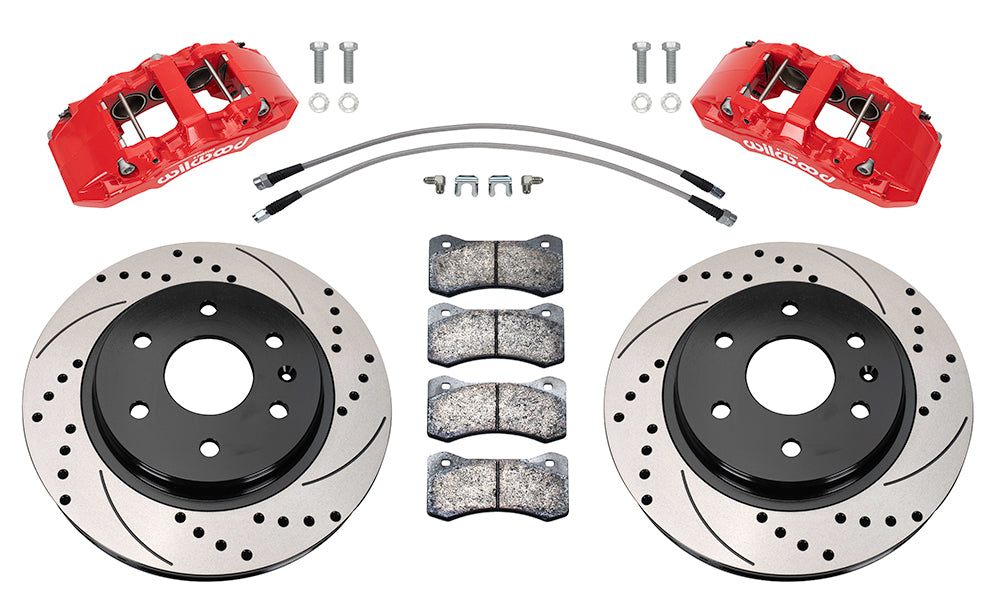

• The brake package includes pads and required mounting hardware, excluding spindles, master cylinder and booster.
• The kit supplies braided flexlines (220-10979). Confirm their chassis-end fit and routing on the actual vehicle.
• Check the wheel-clearance diagram before purchase; the nominal minimum wheel diameter is 17 inches.
• Connect the hydraulic line through the 1/8-27 NPT caliper inlet.
• This assembly leaves the documented wheel hubs in use. It supplies brake components rather than new hubs.
• Piston sizing follows the published 1.75, 1.62, 1.62-inch specification. The included brake-pad compound is BP-22.
• Caliper selection is 6-piston AERODM. Body finish: red powder coat; attachment: lug; piston material: stainless.
• Rotor package uses SRP Drilled Rotor & Hat components. Each is 1.25 inch thick with 13.38-inch diameter and SRP drilled & slotted faces. Published material: Iron.

Fitment & Compatibility

Coverage is separated by model: Chevrolet Avalanche, Silverado 1500 Pickup/1500/1500 LD, Suburban 1500/Suburban and Tahoe; GMC Sierra 1500 Pickup/1500/1500 Limited, Yukon, Yukon XL 1500 and Yukon XL; Cadillac Escalade, Escalade ESV and Escalade EXT. Read the individual years, 2007 New Style designation, police-package, pad-clip and rear-brake entries. Dust-shield trimming may be required. Retain and safely secure any factory pad-wear sensor wire as instructed; it is not used by the new calipers. The table below preserves the individual vehicle and brake-option entries; select the complete matching row before ordering.

With over 20 years of parts and application experience, PMB Performance can help compare this assembly with your existing brakes. Supply the hub, axle or spindle specification and wheel-clearance information before ordering.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
