Wilwood Front GM 1500 Trucks/SUVs (2007–2020) Conversion with Braided Lines, Black AERO6-DM and 13.38-Inch Drilled/Slotted Rotors

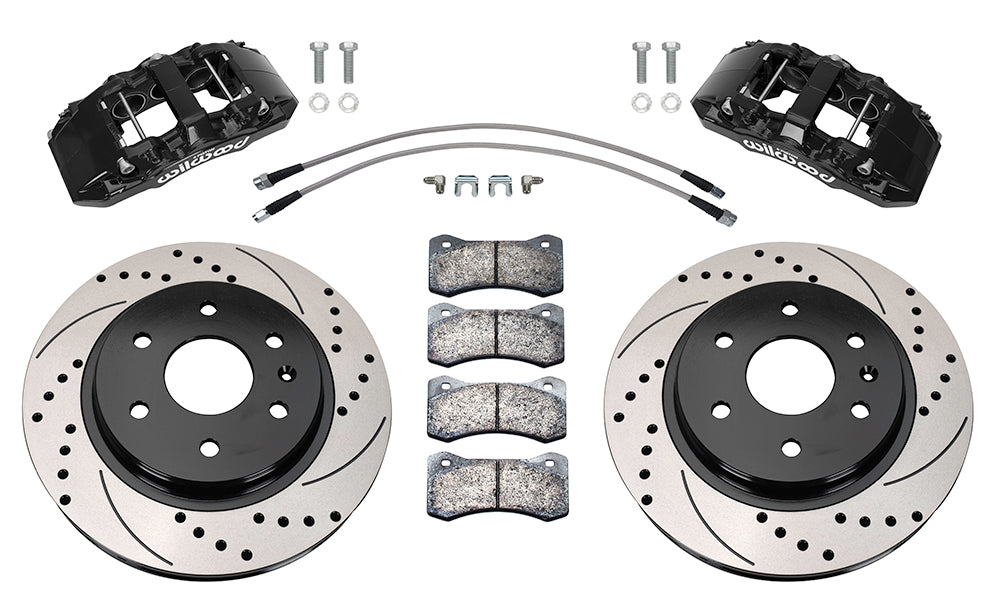

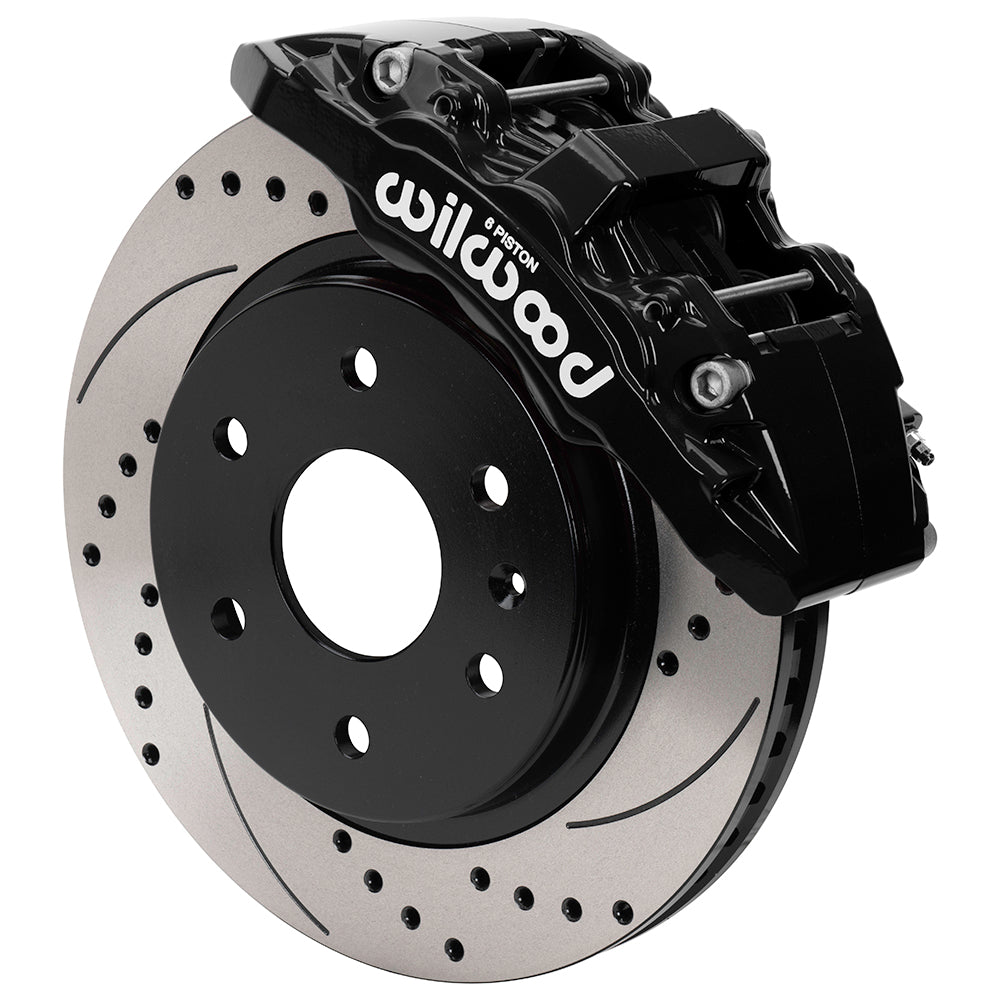

Black calipers and 13.38-inch SRP drilled & slotted rotors are the selected configuration. For the listed later GM truck uprights, this front AERO6-DM package uses 13.38-inch slip-on rotors and six-piston direct-mount calipers. Its included 24-inch flexlines connect the new calipers while the original wheel hubs remain in place. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company makes disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Each component must suit the surrounding brake system.

Technical Details

• The Wilwood manufacturer part number is 140-16804-D. This product is sold as a kit.
• The black powder coat caliper bodies are AERODM units with 6 pistons. Stainless pistons and lug mounts are specified.
• 13.38-inch rotors are supplied in the SRP drilled & slotted configuration; the published thickness is 1.25 inch. These rotors use Iron.
• Friction material supplied is BP-22; the caliper bore measurements are 1.75, 1.62, 1.62 inches.
• The original hub arrangement must be retained or provided separately. No replacement wheel hubs come with the kit.
• Caliper inlet thread is 1/8-27 NPT.
• Published minimum rim diameter is 17 inches. Use the template to check spoke clearance as well.
• Braided hydraulic hoses are supplied under reference 220-10979; verify connections and full suspension clearance.
• Supplied items include the pads and mounting fasteners; no replacement spindle, master cylinder or booster is included.

Fitment & Compatibility

Coverage is separated by model: Chevrolet Avalanche, Silverado 1500 Pickup/1500/1500 LD, Suburban 1500/Suburban and Tahoe; GMC Sierra 1500 Pickup/1500/1500 Limited, Yukon, Yukon XL 1500 and Yukon XL; Cadillac Escalade, Escalade ESV and Escalade EXT. Read the individual years, 2007 New Style designation, police-package, pad-clip and rear-brake entries. Dust-shield trimming may be required. Retain and safely secure any factory pad-wear sensor wire as instructed; it is not used by the new calipers. Read the fitment table below for the exact year and option combination; do not apply one row's restrictions to another vehicle.

For help selecting the correct brake package, give PMB Performance the vehicle details and measurements of the installed hardware. Our 20+ years of parts experience help resolve fitment beyond a model name alone.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
