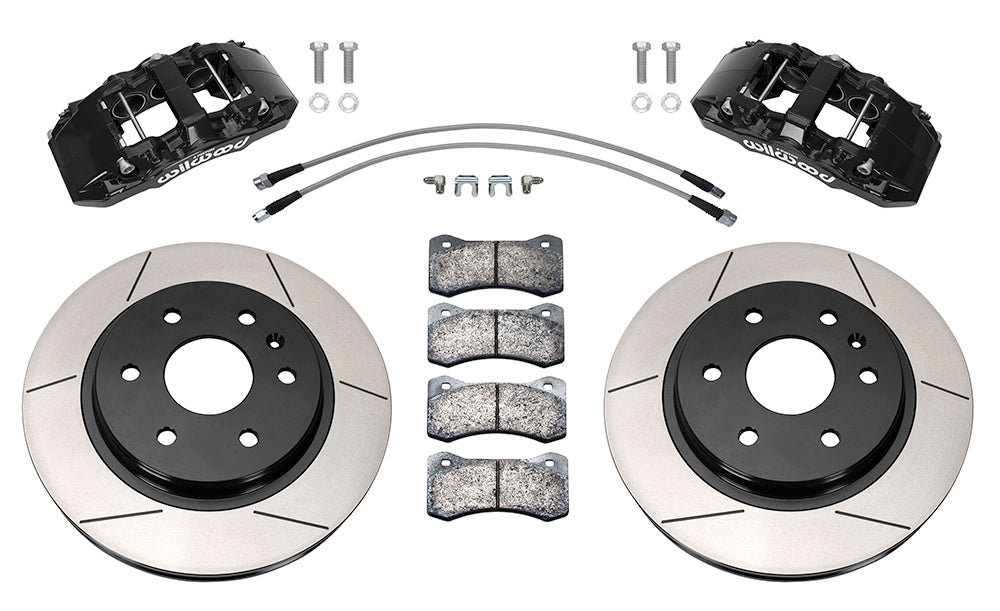

Wilwood front AERODM brake kit for later GM 1500 trucks/SUVs: Two black AERODM calipers with slotted one-piece rotors, brake pads and mounting fasteners, braided hoses and fittings laid out.

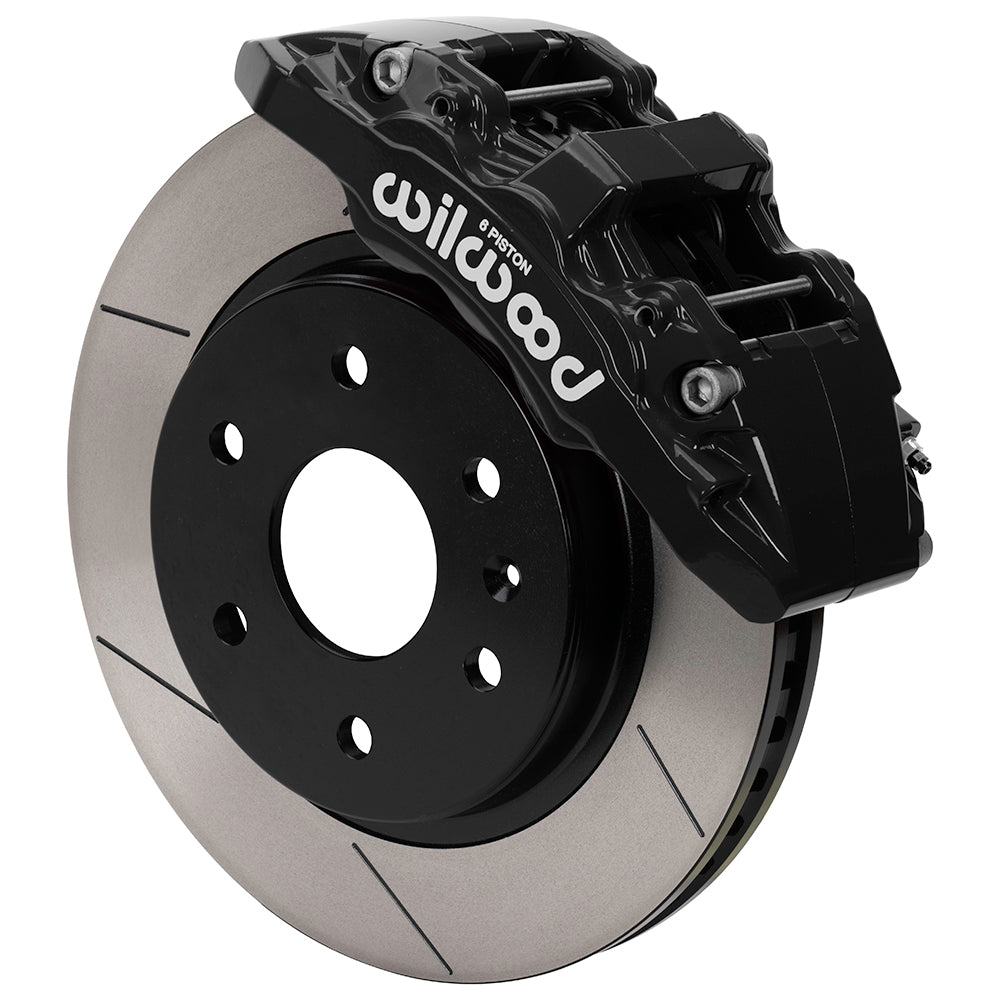

Wilwood front AERODM brake kit for later GM 1500 trucks/SUVs: Assembled black AERODM caliper over a slotted rotor with a black center and large hub opening.
Wilwood front AERODM brake kit for later GM 1500 trucks/SUVs: Two black AERODM calipers with slotted one-piece rotors, brake pads and mounting fasteners, braided hoses and fittings laid out.
Wilwood front AERODM brake kit for later GM 1500 trucks/SUVs: Assembled black AERODM caliper over a slotted rotor with a black center and large hub opening.

Wilwood Front AERO6-DM Conversion with 13.38-Inch GT Slotted Rotors and Black Calipers, GM 1500 Trucks/SUVs (2007–2020)

SKU: 140-16804

$1,817.04 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

For the listed later GM truck uprights, this front AERO6-DM package uses 13.38-inch slip-on rotors and six-piston direct-mount calipers. Its included 24-inch flexlines connect the new calipers while the original wheel hubs remain in place. Black calipers and 13.38-inch GT slotted rotors are the selected configuration. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, chosen to match the complete system.

Technical Details

  • Order specification: manufacturer part number 140-16804; quantity one brake kit.
  • The piston diameter specification is 1.75, 1.62, 1.62 inches, paired with BP-22 brake pads.
  • Matching existing wheel hubs are retained; replacement hubs are not included.
  • Hydraulic inlet: 1/8-27 NPT.
  • Nominal wheel minimum: 17 inches; verify the complete caliper profile against the wheel drawing.
  • Included braided flexline kit: 220-10979. Match its chassis fittings and final routing.
  • Pads and mounting hardware are included. Spindles, master cylinder and brake booster are separate.
  • Brake rotor specification: GTB Vented Rotor & Hat, with GT slotted friction faces. Overall size is 13.38 × 1.25 inches. Material: Iron.
  • Lug-mounted AERODM calipers are supplied. Each has 6 pistons in stainless, with black powder coat on the caliper body.

Fitment & Compatibility

Coverage is separated by model: Chevrolet Avalanche, Silverado 1500 Pickup/1500/1500 LD, Suburban 1500/Suburban and Tahoe; GMC Sierra 1500 Pickup/1500/1500 Limited, Yukon, Yukon XL 1500 and Yukon XL; Cadillac Escalade, Escalade ESV and Escalade EXT. Read the individual years, 2007 New Style designation, police-package, pad-clip and rear-brake entries. Dust-shield trimming may be required. Retain and safely secure any factory pad-wear sensor wire as instructed; it is not used by the new calipers. Use the complete application table below to check the individual year, model, submodel, original brake configuration and attached notes.

PMB Performance brings 20+ years of parts and fitment experience to brake selection. Send the actual hub or spindle details, existing brake configuration and wheel measurements for help checking this combination.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
2007 Cadillac Escalade 6 Lug - All Disc Disc Front Kit 1, 2, 3
2007 Cadillac Escalade ESV 6 Lug - All Disc Disc Front Kit 1, 2, 3
2007 Cadillac Escalade EXT 6 Lug - All Disc Disc Front Kit 1, 2, 3
2007 Chevrolet Avalanche 6 Lug - All Disc Disc Front Kit 1, 2, 3
2007 Chevrolet Silverado 1500 Pickup 6 Lug - New Style w/ Disc Rear Disc Disc Front Kit 1, 2, 3
2007 Chevrolet Silverado 1500 Pickup 6 Lug - New Style w/ Drum Rear Disc Drum Front Kit 1, 2, 3
2007 Chevrolet Suburban 1500 6 Lug - All Disc Disc Front Kit 1, 2, 3
2007 Chevrolet Tahoe 6 Lug - All execpt Police Disc Disc Front Kit 1, 2, 3
2007 Chevrolet Tahoe 6 Lug - Police package Disc Disc Front Kit 4, 1, 2, 3
2007 GMC Sierra 1500 Pickup 6 Lug - New Style w/ Disc Rear Disc Disc Front Kit 1, 2, 3
2007 GMC Sierra 1500 Pickup 6 Lug - New Style w/ Drum Rear Disc Drum Front Kit 1, 2, 3
2007 GMC Yukon 6 Lug - All Disc Disc Front Kit 1, 2, 3
2007 GMC Yukon XL 1500 6 Lug - All Disc Disc Front Kit 1, 2, 3
2008 Cadillac Escalade 6 Lug - All (w/ finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Cadillac Escalade 6 Lug - All (w/o finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Cadillac Escalade ESV 6 Lug - All (w/ finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Cadillac Escalade ESV 6 Lug -All (w/o finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Cadillac Escalade EXT 6 Lug - All (w/ finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Cadillac Escalade EXT 6 Lug - All (w/o finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Chevrolet Avalanche 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Chevrolet Avalanche 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Chevrolet Avalanche 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Chevrolet Avalanche 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008-2010 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ Disc Rear, except Police Package Disc Disc Front Kit 1, 2, 3
2008-2013 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ Drum Rear Disc Drum Front Kit 1, 2, 3
2008-2010 Chevrolet Silverado 1500 Pickup 6 Lug - Police Package w/ Disc Rear Disc Disc Front Kit 1, 2, 3
2008 Chevrolet Suburban 1500 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Chevrolet Suburban 1500 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Chevrolet Suburban 1500 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Chevrolet Suburban 1500 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Chevrolet Tahoe 6 Lug - All except Police (w/o finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Chevrolet Tahoe 6 Lug - All including Police (w/ finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 Chevrolet Tahoe 6 Lug - Police package (w/o finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008-2010 GMC Sierra 1500 Pickup 6 Lug - All w/ Disc Rear, except Police Package Disc Disc Front Kit 1, 2, 3
2008-2013 GMC Sierra 1500 Pickup 6 Lug - All w/ Drum Rear Disc Drum Front Kit 1, 2, 3
2008-2010 GMC Sierra 1500 Pickup 6 Lug - Police Package w/ Disc Rear Disc Disc Front Kit 1, 2, 3
2008 GMC Yukon 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 GMC Yukon 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 GMC Yukon 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 GMC Yukon 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 GMC Yukon XL 1500 6 Lug - 4 x 2 (w/ finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 GMC Yukon XL 1500 6 Lug - 4 x 2 (w/o finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 GMC Yukon XL 1500 6 Lug - 4 x 4 (w/ finger clip front pad) Disc Disc Front Kit 1, 2, 3
2008 GMC Yukon XL 1500 6 Lug - 4 x 4 (w/o finger clip front pad) Disc Disc Front Kit 1, 2, 3
2009 Cadillac Escalade 6 Lug -All Disc Disc Front Kit 1, 2, 3
2009 Cadillac Escalade ESV 6 Lug -All Disc Disc Front Kit 1, 2, 3
2009 Cadillac Escalade EXT 6 Lug -All Disc Disc Front Kit 1, 2, 3
2009 Chevrolet Avalanche 6 Lug -All Disc Disc Front Kit 1, 2, 3
2009-2013 Chevrolet Suburban 1500 6 Lug - 4 x 2 Disc Disc Front Kit 1, 2, 3
2009-2013 Chevrolet Suburban 1500 6 Lug - 4 x 4 Disc Disc Front Kit 1, 2, 3
2009-2013 Chevrolet Tahoe 6 Lug - 4 x 2 All w/ Rear Disc Brake Disc Disc Front Kit 1, 2, 3
2009-2013 Chevrolet Tahoe 6 Lug - 4 x 4 All w/ Rear Disc Brake Disc Disc Front Kit 1, 2, 3
2009-2012 GMC Yukon 6 Lug - 4 x 2 Disc Disc Front Kit 1, 2, 3
2009-2011, 2013 GMC Yukon 6 Lug - 4 x 4 Disc Disc Front Kit 1, 2, 3
2009-2012 GMC Yukon XL 1500 6 Lug - 4 x 2 Disc Disc Front Kit 1, 2, 3
2009-2011, 2013 GMC Yukon XL 1500 6 Lug - 4 x 4 Disc Disc Front Kit 1, 2, 3
2010-2012 Cadillac Escalade 6 Lug - 4 x 2 Disc Disc Front Kit 1, 2, 3
2010-2011, 2013 Cadillac Escalade 6 Lug - 4 x 4 Disc Disc Front Kit 1, 2, 3
2010-2012 Cadillac Escalade ESV 6 Lug - 4 x 2 Disc Disc Front Kit 1, 2, 3
2010-2011, 2013 Cadillac Escalade ESV 6 Lug - 4 x 4 Disc Disc Front Kit 1, 2, 3
2010-2012 Cadillac Escalade EXT 6 Lug - 4 x 2 Disc Disc Front Kit 1, 2, 3
2010-2011, 2013 Cadillac Escalade EXT 6 Lug - 4 x 4 Disc Disc Front Kit 1, 2, 3
2010-2013 Chevrolet Avalanche 6 Lug - 4 x 2 Disc Disc Front Kit 1, 2, 3
2010-2013 Chevrolet Avalanche 6 Lug - 4 x 4 Disc Disc Front Kit 1, 2, 3
2011-2013 Chevrolet Silverado 1500 Pickup 6 Lug - All w/ Rear Disc Brake Disc Disc Front Kit 1, 2, 3
2011-2013 GMC Sierra 1500 Pickup 6 Lug - All w/ Rear Disc Brake Disc Disc Front Kit 1, 2, 3
2014-2020 Cadillac Escalade Base Base Disc Disc Front Kit 1, 2, 3
2014-2020 Cadillac Escalade Luxury Luxury Disc Disc Front Kit 1, 2, 3
2014, 2016-2020 Cadillac Escalade Platinum Platinum Disc Disc Front Kit 1, 2, 3
2014-2017 Cadillac Escalade Premium Premium Disc Disc Front Kit 1, 2, 3
2014-2020 Cadillac Escalade ESV Base Base Disc Disc Front Kit 1, 2, 3
2014-2020 Cadillac Escalade ESV Luxury Luxury Disc Disc Front Kit 1, 2, 3
2014, 2016-2020 Cadillac Escalade ESV Platinum Platinum Disc Disc Front Kit 1, 2, 3
2014-2017 Cadillac Escalade ESV Premium Premium Disc Disc Front Kit 1, 2, 3
2014 Chevrolet Silverado 1500 Pickup 6 Lug - All Disc Disc Front Kit 1, 2, 3
2014 Chevrolet Suburban 1500 LS LS Disc Disc Front Kit 1, 2, 3
2014 Chevrolet Suburban 1500 LT LT Disc Disc Front Kit 1, 2, 3
2014 Chevrolet Suburban 1500 LTZ LTZ Disc Disc Front Kit 1, 2, 3
2014-2020 Chevrolet Tahoe LS LS Disc Disc Front Kit 1, 2, 3
2014-2020 Chevrolet Tahoe LT LT Disc Disc Front Kit 1, 2, 3
2014-2016 Chevrolet Tahoe LTZ LTZ Disc Disc Front Kit 1, 2, 3
2014 GMC Sierra 1500 Pickup 6 Lug - All Disc Disc Front Kit 1, 2, 3
2014-2020 GMC Yukon Denali Denali Disc Disc Front Kit 1, 2, 3
2014-2020 GMC Yukon SLE SLE Disc Disc Front Kit 1, 2, 3
2014-2020 GMC Yukon SLT SLT Disc Disc Front Kit 1, 2, 3
2014 GMC Yukon XL 1500 Denali Denali Disc Disc Front Kit 1, 2, 3
2014 GMC Yukon XL 1500 SLE SLE Disc Disc Front Kit 1, 2, 3
2014 GMC Yukon XL 1500 SLT SLT Disc Disc Front Kit 1, 2, 3
2015-2018 Chevrolet Silverado 1500 High Country High Country Disc Disc Front Kit 1, 2, 3
2015-2018 Chevrolet Silverado 1500 LT LT Disc Disc Front Kit 1, 2, 3
2015-2018 Chevrolet Silverado 1500 LTZ LTZ Disc Disc Front Kit 1, 2, 3
2015-2018 Chevrolet Silverado 1500 WT WT Disc Disc Front Kit 1, 2, 3
2015-2020 Chevrolet Suburban LS LS Disc Disc Front Kit 1, 2, 3
2015-2020 Chevrolet Suburban LT LT Disc Disc Front Kit 1, 2, 3
2015-2016 Chevrolet Suburban LTZ LTZ Disc Disc Front Kit 1, 2, 3
2015-2018 GMC Sierra 1500 Base Base Disc Disc Front Kit 1, 2, 3
2015-2018 GMC Sierra 1500 Denali Denali Disc Disc Front Kit 1, 2, 3
2015-2018 GMC Sierra 1500 SLE SLE Disc Disc Front Kit 1, 2, 3
2015-2018 GMC Sierra 1500 SLT SLT Disc Disc Front Kit 1, 2, 3
2015-2020 GMC Yukon XL Denali Denali Disc Disc Front Kit 1, 2, 3
2015-2020 GMC Yukon XL SLE SLE Disc Disc Front Kit 1, 2, 3
2015-2020 GMC Yukon XL SLT SLT Disc Disc Front Kit 1, 2, 3
2016-2018 Chevrolet Silverado 1500 LS LS Disc Disc Front Kit 1, 2, 3
2016-2018 Chevrolet Silverado 1500 SSV SSV Disc Disc Front Kit 1, 2, 3
2016-2020 Chevrolet Tahoe PPV PPV Disc Disc Front Kit 1, 2, 3
2016-2020 Chevrolet Tahoe SSV SSV Disc Disc Front Kit 1, 2, 3
2017-2018 Chevrolet Silverado 1500 Custom Custom Disc Disc Front Kit 1, 2, 3
2017-2020 Chevrolet Suburban Premier Premier Disc Disc Front Kit 1, 2, 3
2017-2020 Chevrolet Tahoe Premier Premier Disc Disc Front Kit 1, 2, 3
2018-2020 Cadillac Escalade Premium Luxury Premium Luxury Disc Disc Front Kit 1, 2, 3
2018-2020 Cadillac Escalade ESV Premium Luxury Premium Luxury Disc Disc Front Kit 1, 2, 3
2019 Chevrolet Silverado 1500 LD LT LT Disc Disc Front Kit 1, 2, 3
2019 Chevrolet Silverado 1500 LD WT WT Disc Disc Front Kit 1, 2, 3
2019 GMC Sierra 1500 Limited Base Base Disc Disc Front Kit 1, 2, 3
2019 GMC Sierra 1500 Limited SLE SLE Disc Disc Front Kit 1, 2, 3
