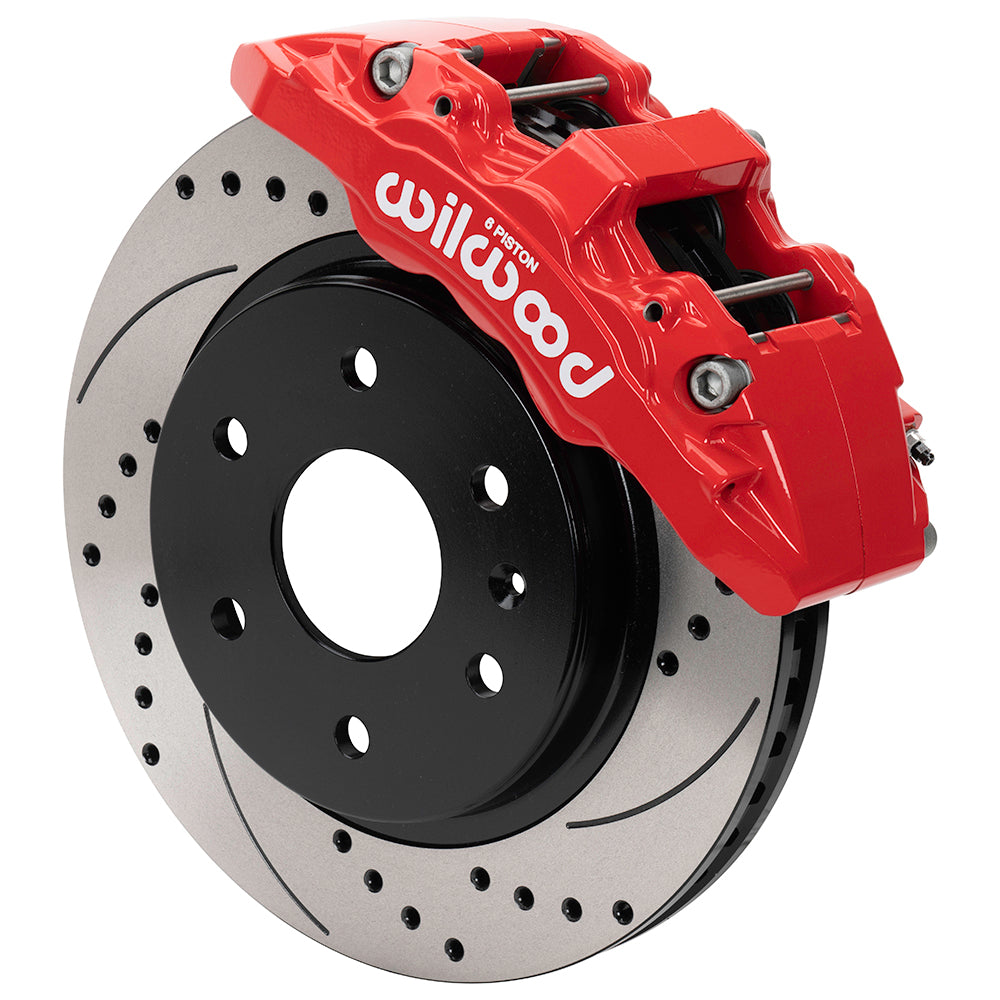

Wilwood Front AERO6-DM Calipers and 13.38-Inch Drilled/Slotted Brake Rotors for GM 1500 Trucks/SUVs (1999–2007), Red Kit

AERO6-DM calipers mount directly to the documented GM front upright and pair with 13.38-inch one-piece slip-on rotors. Red calipers and 13.38-inch SRP drilled & slotted rotors are the selected configuration. This six-piston front package includes BP-22 pads and the earlier truck flexline kit. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems, with selection governed by the complete brake installation.

Technical Details

• The Wilwood manufacturer part number is 140-16803-DR. This product is sold as a kit.
• The red powder coat caliper bodies are AERODM units with 6 pistons. Stainless pistons and lug mounts are specified.
• 13.38-inch rotors are supplied in the SRP drilled & slotted configuration; the published thickness is 1.25 inch. These rotors use Iron.
• Friction material supplied is BP-22; the caliper bore measurements are 1.75, 1.62, 1.62 inches.
• The original hub arrangement must be retained or provided separately. No replacement wheel hubs come with the kit.
• Caliper inlet thread is 1/8-27 NPT.
• Published minimum rim diameter is 17 inches. Use the template to check spoke clearance as well.
• Braided hydraulic hoses are supplied under reference 220-17129; verify connections and full suspension clearance.

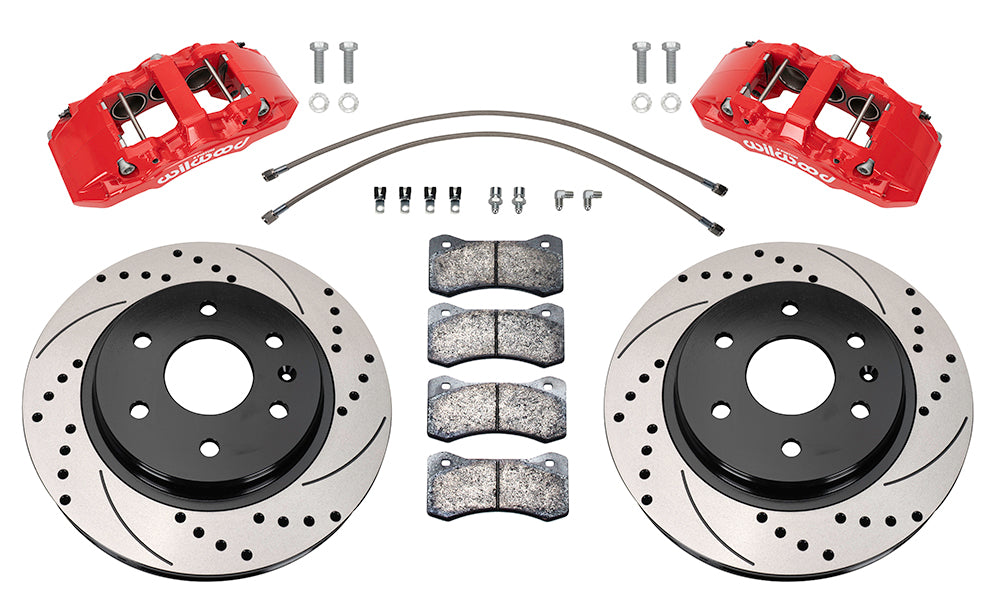

• Supplied items include the pads and mounting fasteners; no replacement spindle, master cylinder or booster is included.

Fitment & Compatibility

Check the complete six-lug entries for Chevrolet Silverado 1500 Pickup, Suburban 1500, Tahoe and Avalanche 1500; GMC Sierra 1500 Pickup, Yukon and Yukon XL 1500; and Cadillac Escalade and Escalade EXT. The 2007 pickup entries are Classic body style. Match rear-brake package, drivetrain and four-wheel-steering notes where listed. Some dust shields need limited trimming for caliper clearance. No replacement wheel hubs are included. The table below preserves the individual vehicle and brake-option entries; select the complete matching row before ordering.

With over 20 years of parts and application experience, PMB Performance can help compare this assembly with your existing brakes. Supply the hub, axle or spindle specification and wheel-clearance information before ordering.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
