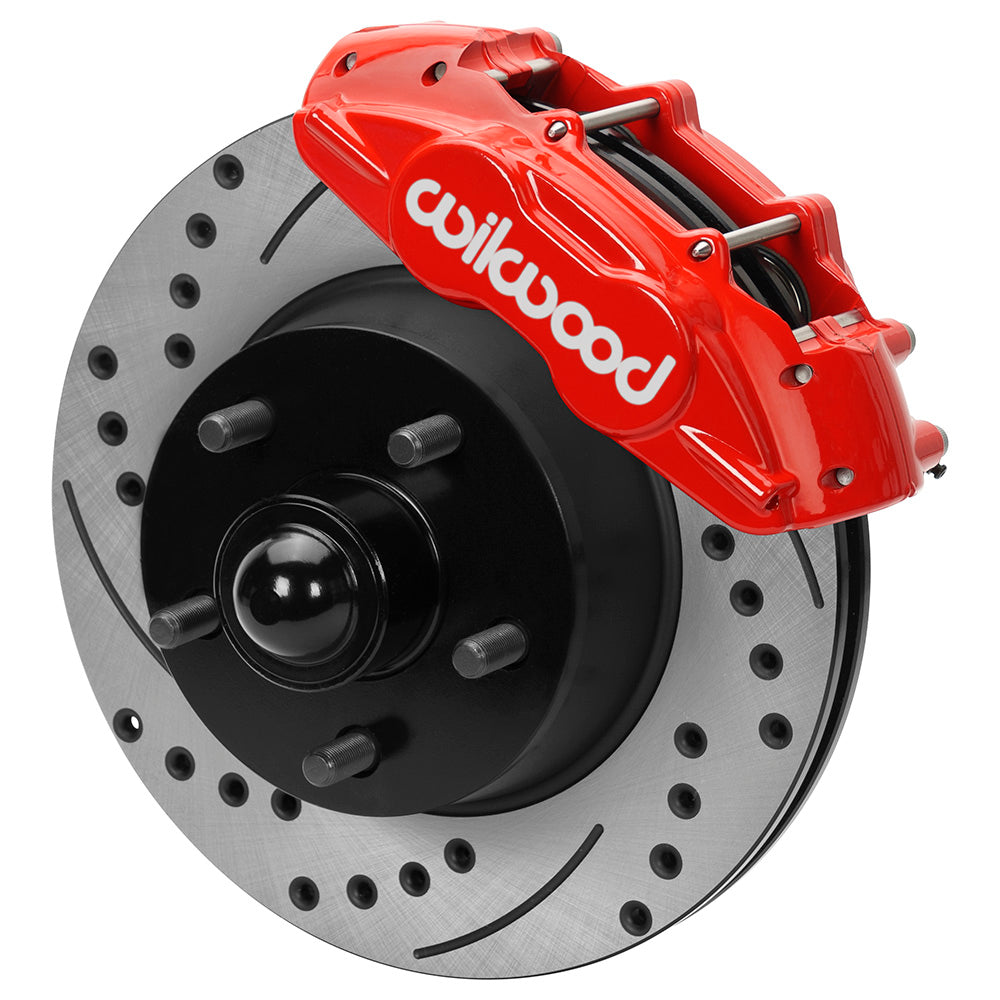

Wilwood Front D11 Conversion with 11.29-Inch Drilled/Slotted Rotors and Red Calipers, Ford/Mercury Disc-Spindle Cars (1965–1967)

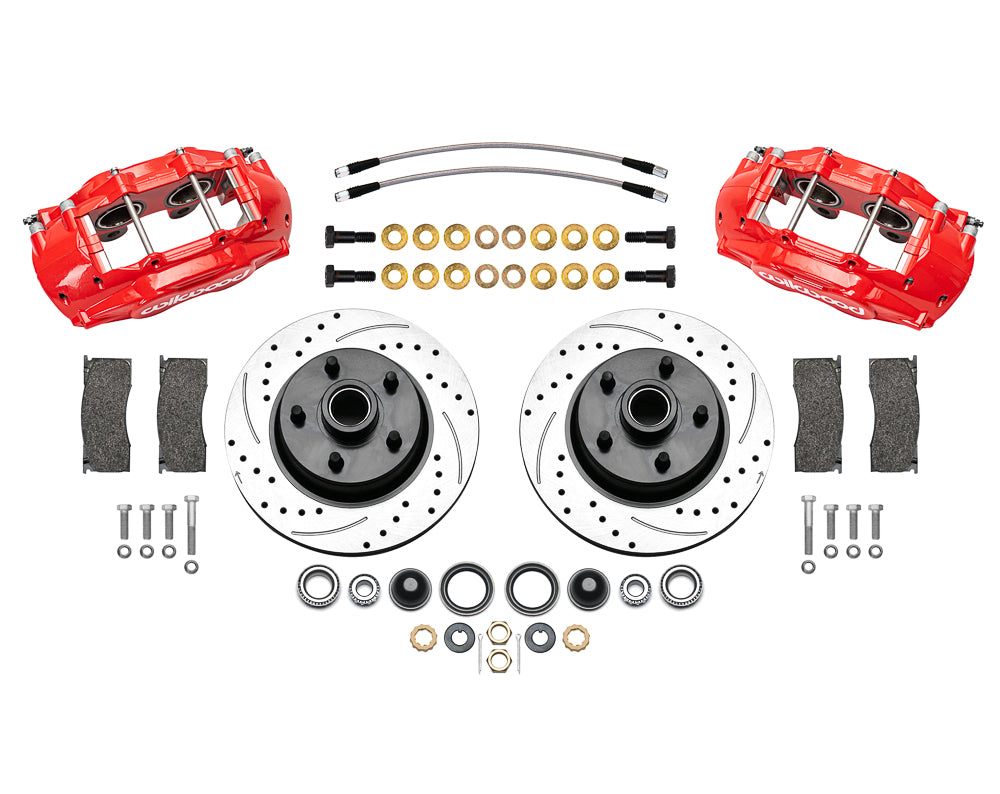

The full D11 front brake conversion supplies four-piston calipers, 11.29-inch one-piece hub/rotor castings, bearings, pads and flexlines. Red calipers and 11.29-inch SRP drilled & slotted rotors are the selected configuration. It uses the existing Ford/Mercury disc spindle and caliper bracket rather than a replacement spindle. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems, with selection governed by the complete brake installation.

Technical Details

• Manufacturer identification: 140-16801-DR, supplied as one application-specific kit.
• Rotor dimensions (diameter/width): 11.29 / 0.94 inches. SRP Drilled & Slotted design in Iron.
• Pads supplied: PM - ProMatrix. Piston bore dimensions: 1.62, 1.62 inches.
• The specified caliper hydraulic connection is 1/8-27 NPT.
• Hose package 220-12168 is included. Keep the braided lines free of strain, abrasion and contact with moving parts.
• Service caliper specification: D11 in red powder coat, using lug mounting and 4 stainless pistons.
• The one-piece rotor castings incorporate the wheel hubs, with the documented bearings, grease seals and hub hardware supplied.
• A 14-inch nominal wheel is the starting point. Its spoke and barrel shape must clear the actual brake assembly.
• Mounting hardware and brake pads come with the kit. Spindles, a master cylinder and a brake booster are not included.

Fitment & Compatibility

Match the 1965–1967 disc-spindle applications for Falcon, Mustang, Ranchero, Fairlane, Comet, Caliente, Cougar and Cyclone. Early entries require V8 disc spindles; retain the appropriate original caliper bracket. The factory dust shields must be removed. These rotors incorporate the wheel hubs and have a 5 x 4.50-inch wheel pattern; the kit is nominally described as 11.30 inches, with an exact published rotor diameter of 11.29 inches. The table below preserves the individual vehicle and brake-option entries; select the complete matching row before ordering.

With over 20 years of parts and application experience, PMB Performance can help compare this assembly with your existing brakes. Supply the hub, axle or spindle specification and wheel-clearance information before ordering.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
