Wilwood Front Caliper Upgrade for Ford/Mercury Disc-Spindle Cars (1965–1967), Red D11 with Braided Hoses

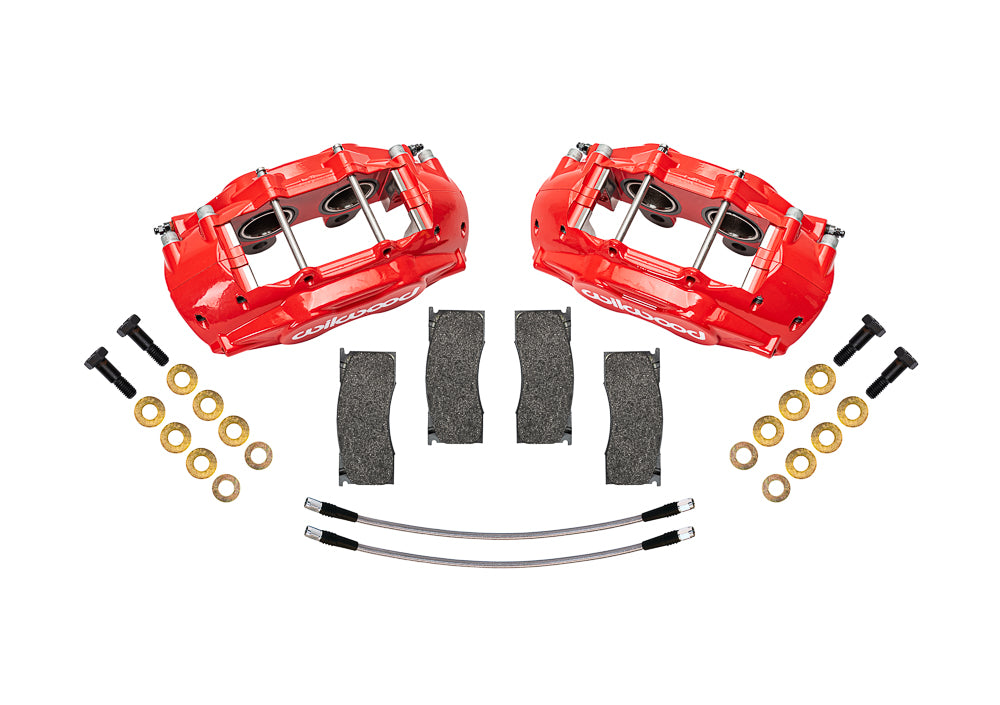

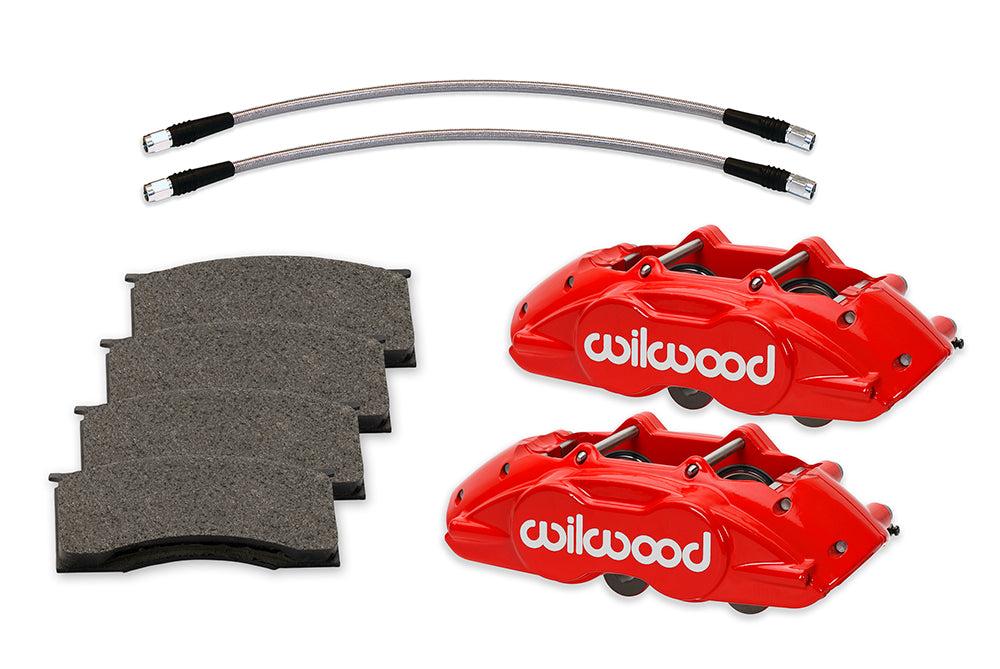

D11 four-piston calipers replace the original front calipers on the documented Ford/Mercury disc-brake spindle arrangement. Red calipers are supplied in this configuration. This caliper-and-pad package includes braided flexlines and retains serviceable matching rotors, hubs and factory caliper brackets. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems, with selection governed by the complete brake installation.

Technical Details

• Wilwood kit number 140-16799-R; sold as the listed axle brake package.
• Caliper bore sizes are 1.62, 1.62 inches; the axle pad set uses PM - ProMatrix compound.
• The original hub arrangement must be retained or provided separately. No replacement wheel hubs come with the kit.
• Caliper inlet thread is 1/8-27 NPT.
• Published minimum rim diameter is 14 inches. Use the template to check spoke clearance as well.
• Braided hydraulic hoses are supplied under reference 220-12168; verify connections and full suspension clearance.
• Supplied items include the pads and mounting fasteners; no replacement spindle, master cylinder or booster is included.
• D11 service calipers have 4 pistons and lug mounts. The finish is red powder coat; piston material is stainless.

Fitment & Compatibility

Use only with the specified 1965–1967 factory disc spindles and original caliper brackets. The table covers Falcon, Mustang, Ranchero, Fairlane, Comet, Caliente, Cougar and Cyclone, with V8 disc-spindle restrictions on the early entries. Remove the factory dust shields as directed. Rotors and replacement hubs are not supplied with this caliper-only kit. The table below preserves the individual vehicle and brake-option entries; select the complete matching row before ordering.

With over 20 years of parts and application experience, PMB Performance can help compare this assembly with your existing brakes. Supply the hub, axle or spindle specification and wheel-clearance information before ordering.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
