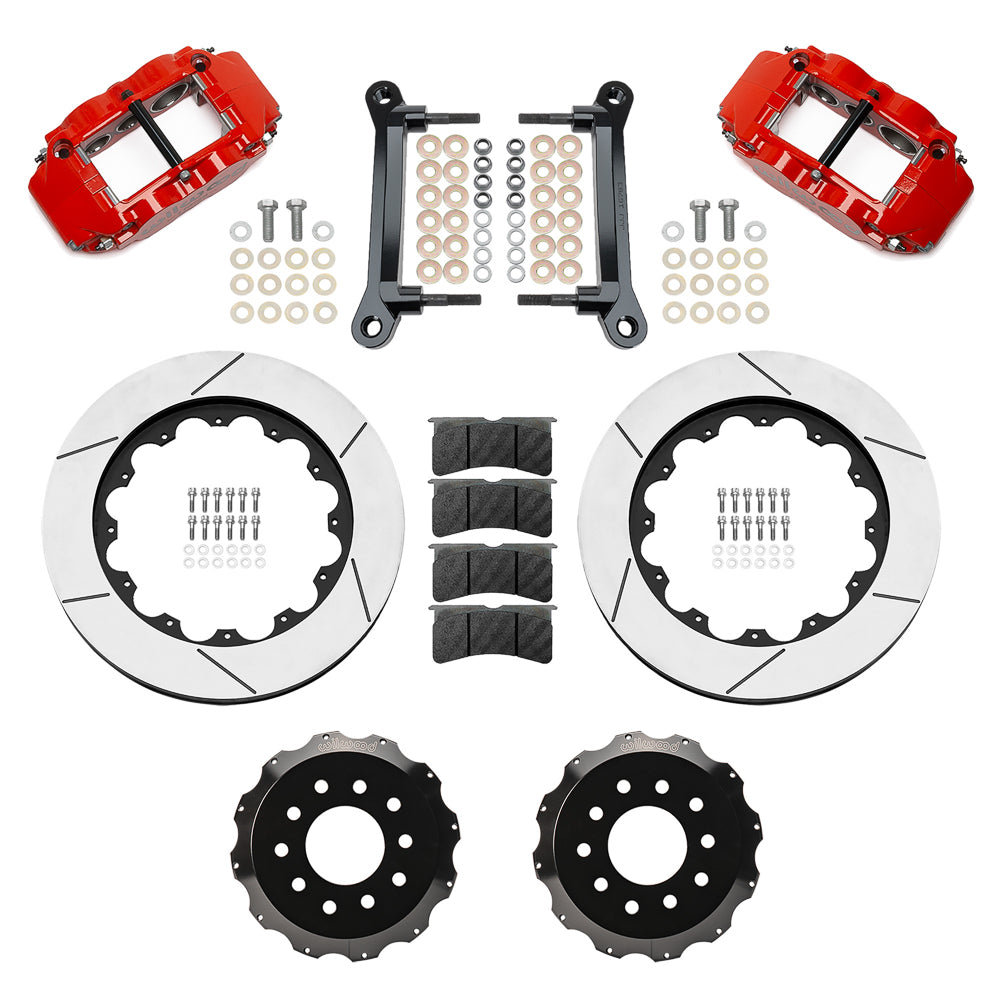

Wilwood front FNSL6R brake kit for DSE C10 13.06-inch conversion: Parts layout with two red-finish FNSL6R calipers, slotted rotor rings, separate black hats, pads, brackets and fasteners.

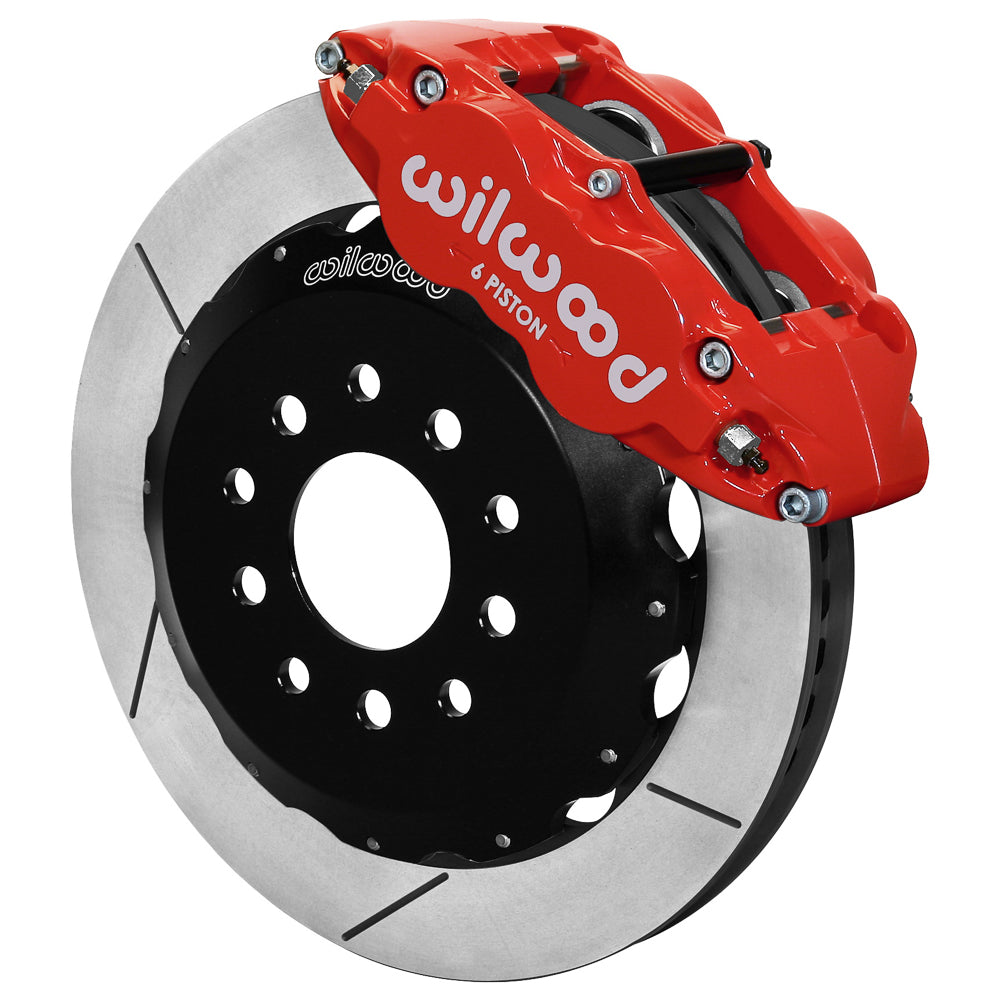

Wilwood front FNSL6R brake kit for DSE C10 13.06-inch conversion: Red-finish FNSL6R caliper over a slotted rotor and black center hat in an assembled brake view.
Wilwood front FNSL6R brake kit for DSE C10 13.06-inch conversion: Parts layout with two red-finish FNSL6R calipers, slotted rotor rings, separate black hats, pads, brackets and fasteners.
Wilwood front FNSL6R brake kit for DSE C10 13.06-inch conversion: Red-finish FNSL6R caliper over a slotted rotor and black center hat in an assembled brake view.

Wilwood Front GT Slotted Brake Kit for Chevrolet/GMC DSE C10 Trucks (1973–1987) with 13.06-Inch Rotors, Red FNSL6R

SKU: 140-16781-R

$2,231.16 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The FNSL6R front conversion pairs six-piston Superlite calipers with 13.06-inch rotors for the DSE C10 drop-spindle setup. Its rotor rings bolt to separate short-offset hats while the existing matching wheel hubs remain in use. Red calipers and 13.06-inch GT slotted rotors are the selected configuration. Based in Camarillo, California, Wilwood Engineering was established by Bill Wood in 1977. Its disc brake systems serve motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are matched to the requirements of the whole system.

Technical Details

  • Manufacturer part number: 140-16781-R. One kit for the documented axle/application.
  • Rotors: 13.06-inch outside diameter × 1.25-inch thickness, GT slotted faces, Spec-37 Iron material.
  • Calipers: Forged Narrow Superlite 6R, 6 pistons, stainless piston material. Radial mount and red powder coat finish.
  • Published piston bores: 1.75, 1.25, 1.25 inches. Included pads: BP-20.
  • Rotor hats: aluminum, black e-coat, 0.810-inch offset.
  • Hat drillings: 5 x 4.75, 5 x 5.00 inches; the existing wheel hub still determines the wheel-lug pattern.
  • Matching existing wheel hubs are retained; replacement hubs are not included.
  • Hydraulic inlet: 1/8-27 NPT.
  • Nominal wheel minimum: 17 inches; verify the complete caliper profile against the wheel drawing.
  • Flexlines are not included. Choose the required hydraulic hoses and adapters separately.
  • Pads and mounting hardware are included. Spindles, master cylinder and brake booster are separate.

Fitment & Compatibility

Select this package only for the Detroit Speed and Engineering 1973–1987 C10 drop spindle, not an original truck spindle. Chevrolet Blazer, C10 Pickup, C10, C10 Suburban, K5 Blazer, R10 Pickup and R10 Suburban appear with GMC C15/C1500 Suburban, C1500 Pickup, Jimmy, C15 Suburban, C1500 Suburban, R1500 Pickup and R1500 Suburban. Each entry has its own year coverage. Confirm the DSE hub pattern and the 17-inch wheel template before assembly. Confirm all year, model and brake-package details against the application table below, including the notes attached to each row.

PMB Performance has 20+ years of experience with parts and fitment details. Share your current brake setup, intended use and mounting measurements so we can help check the complete installation.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1973-1974 Chevrolet Blazer Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1973-1974 Chevrolet Blazer Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1973-1974 Chevrolet C10 Pickup Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1973-1974 Chevrolet C10 Pickup Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1973-1986 Chevrolet C10 Suburban Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1973-1986 Chevrolet C10 Suburban Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1973-1974 GMC C15/C1500 Suburban Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1973-1974 GMC C15/C1500 Suburban Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1973-1974, 1979-1986 GMC C1500 Pickup Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1973-1974, 1979-1986 GMC C1500 Pickup Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1973-1982 GMC Jimmy Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1973-1982 GMC Jimmy Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1975-1986 Chevrolet C10 Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1975-1986 Chevrolet C10 Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1975-1982 Chevrolet K5 Blazer Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1975-1982 Chevrolet K5 Blazer Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1975-1978 GMC C15 Suburban Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1975-1978 GMC C15 Suburban Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1979-1986 GMC C1500 Suburban Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1979-1986 GMC C1500 Suburban Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1987 Chevrolet R10 Pickup Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1987 Chevrolet R10 Pickup Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1987 Chevrolet R10 Suburban Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1987 Chevrolet R10 Suburban Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1987 GMC R1500 Pickup Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1987 GMC R1500 Pickup Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1987 GMC R1500 Suburban Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
1987 GMC R1500 Suburban Vehicles using DSE Drop Spindle. Drop Drum Front Kit 1, 2, 3, 4
