Wilwood Front 13.06-Inch Rotor Kit with Black FNSL6R Calipers for Chevrolet/GMC DSE C10 Trucks (1973–1987), Drilled/Slotted

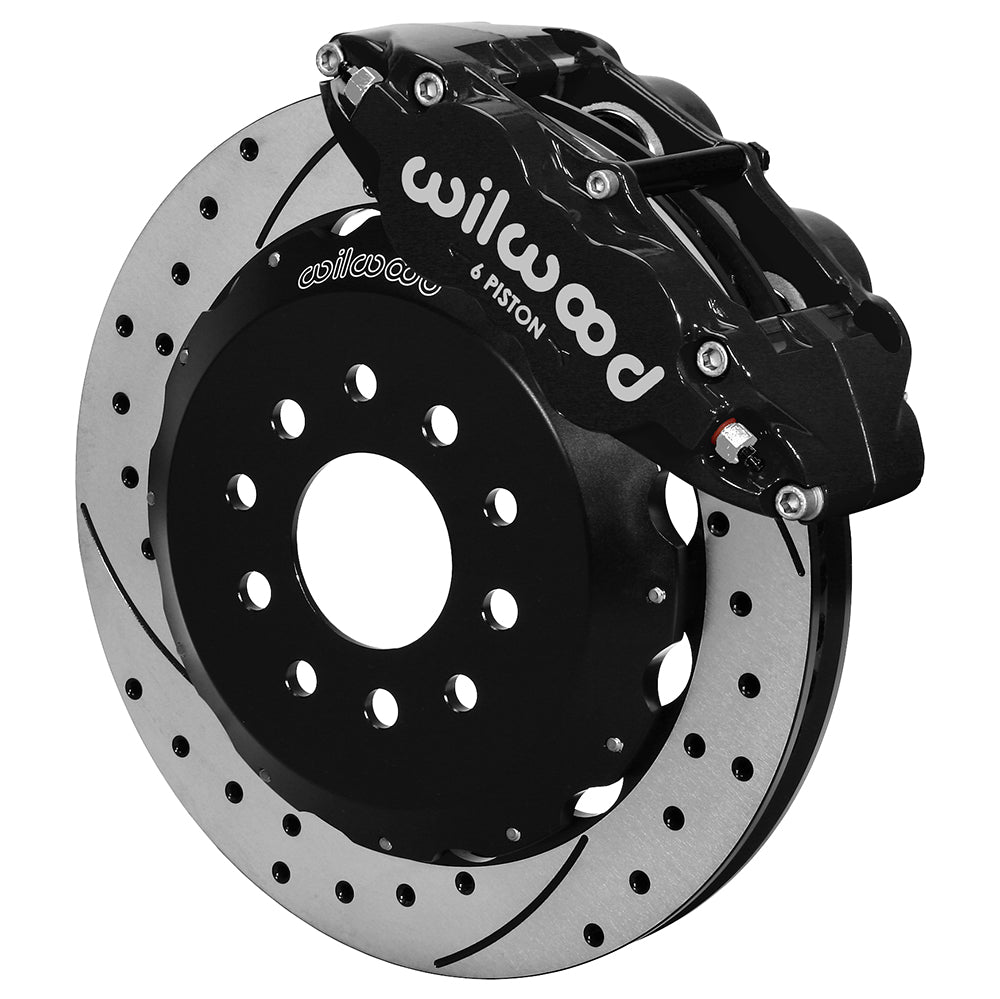

Black calipers and 13.06-inch SRP drilled & slotted rotors are the selected configuration. The FNSL6R front conversion pairs six-piston Superlite calipers with 13.06-inch rotors for the DSE C10 drop-spindle setup. Its rotor rings bolt to separate short-offset hats while the existing matching wheel hubs remain in use. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company makes disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Each component must suit the surrounding brake system.

Technical Details

• Product identification: Wilwood 140-16781-D. Package quantity: one kit for the stated configuration.

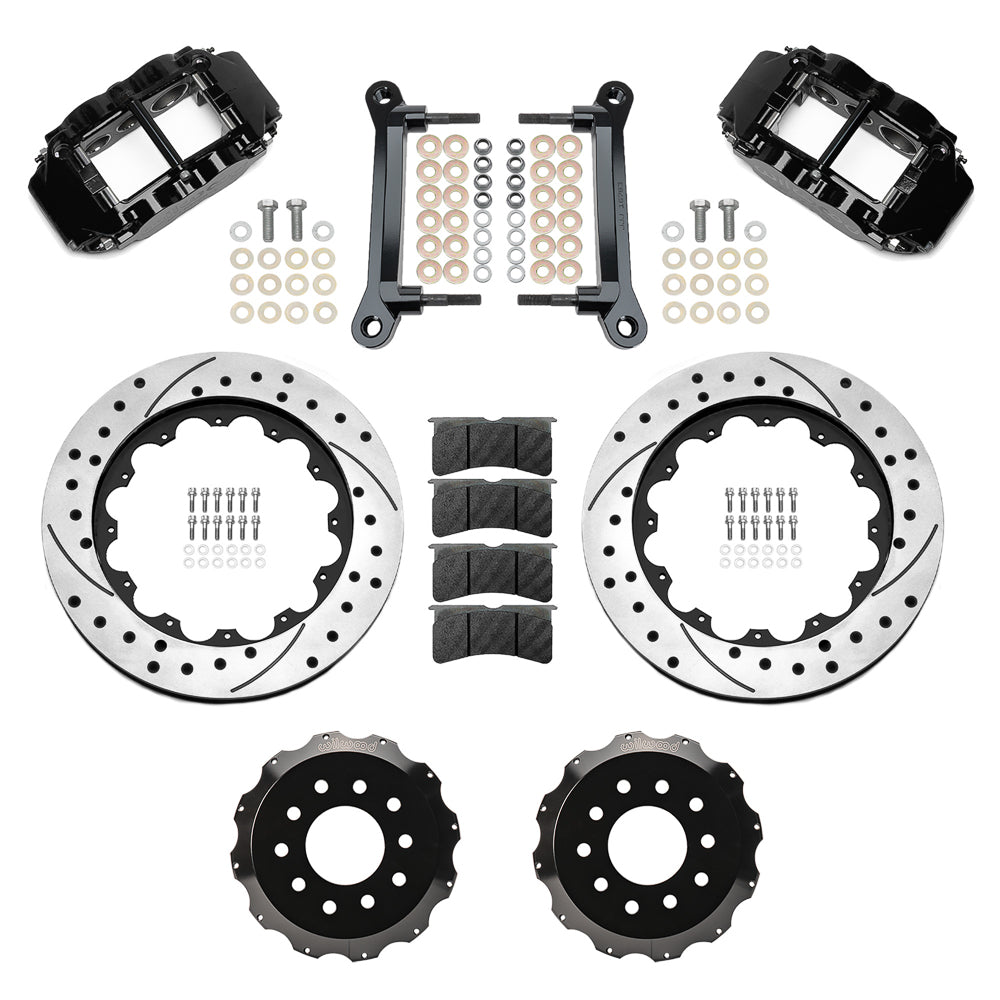

• The brake package includes pads and required mounting hardware, excluding spindles, master cylinder and booster.
• Hydraulic line selection is a separate purchase. Check hose length, adapters and routing before assembly.
• Check the wheel-clearance diagram before purchase; the nominal minimum wheel diameter is 17 inches.
• Connect the hydraulic line through the 1/8-27 NPT caliper inlet.
• This assembly leaves the documented wheel hubs in use. It supplies brake components rather than new hubs.
• Rotor-hat stud-hole patterns are 5 x 4.75, 5 x 5.00 inches, separate from the retained hub wheel-pattern specification.
• Rotor mounting is through separate aluminum hats, offset 0.810 inch and finished in black e-coat.
• Piston sizing follows the published 1.75, 1.25, 1.25-inch specification. The included brake-pad compound is BP-10.
• Caliper selection is 6-piston Forged Narrow Superlite 6R. Body finish: black powder coat; attachment: radial; piston material: stainless.
• Rotor package uses SRP Drilled Rotor components. Each is 1.25 inch thick with 13.06-inch diameter and SRP drilled & slotted faces. Published material: Spec-37 Iron.

Fitment & Compatibility

Select this package only for the Detroit Speed and Engineering 1973–1987 C10 drop spindle, not an original truck spindle. Chevrolet Blazer, C10 Pickup, C10, C10 Suburban, K5 Blazer, R10 Pickup and R10 Suburban appear with GMC C15/C1500 Suburban, C1500 Pickup, Jimmy, C15 Suburban, C1500 Suburban, R1500 Pickup and R1500 Suburban. Each entry has its own year coverage. Confirm the DSE hub pattern and the 17-inch wheel template before assembly. Read the fitment table below for the exact year and option combination; do not apply one row's restrictions to another vehicle.

For help selecting the correct brake package, give PMB Performance the vehicle details and measurements of the installed hardware. Our 20+ years of parts experience help resolve fitment beyond a model name alone.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information:

P65Warnings.ca.gov.
