Wilwood Front Drilled/Slotted Rotor and AERO6 Caliper Kit for Chevrolet/GMC DSE C10 Trucks (1973–1987), Red / 14.25 Inch

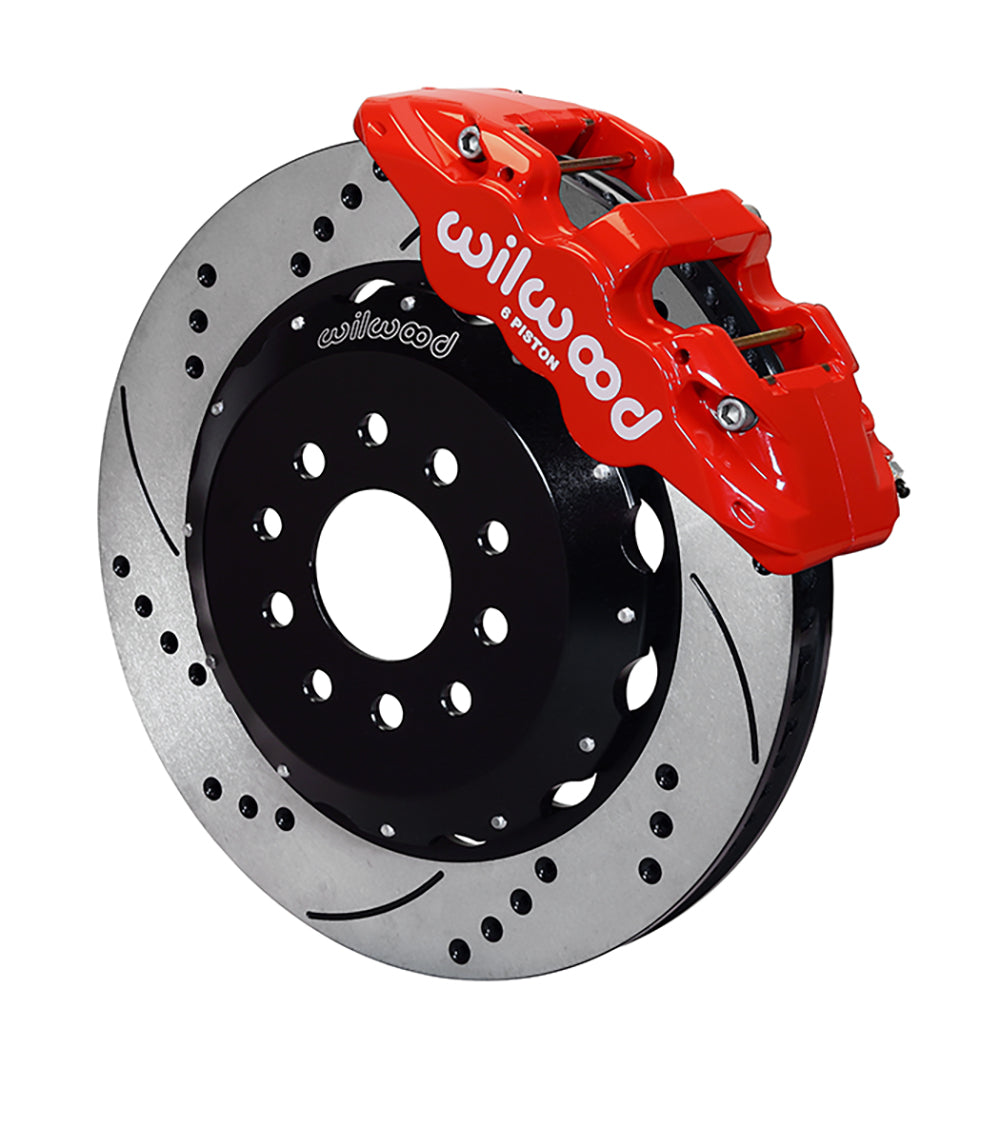

AERO6 six-piston calipers and 14.25-inch rotor rings form this front brake conversion for the Detroit Speed C10 drop-spindle arrangement. Red calipers and 14.25-inch SRP drilled & slotted rotors are the selected configuration. Separate hats fit over the matching hubs, so the kit selection must follow the installed DSE spindle and hub combination. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized systems, with selection governed by the complete brake installation.

Technical Details

• Product identification: Wilwood 140-16780-DR. Package quantity: one kit for the stated configuration.

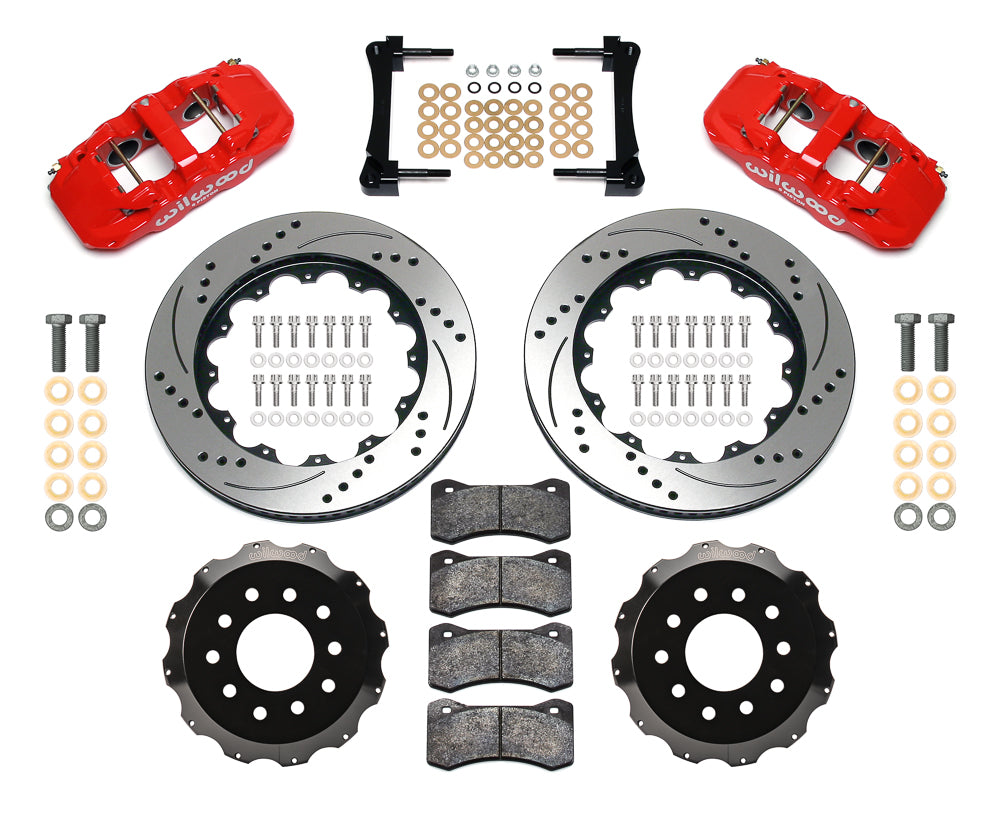

• The brake package includes pads and required mounting hardware, excluding spindles, master cylinder and booster.
• Hydraulic line selection is a separate purchase. Check hose length, adapters and routing before assembly.
• Check the wheel-clearance diagram before purchase; the nominal minimum wheel diameter is 18 inches.
• Connect the hydraulic line through the 1/8-27 NPT caliper inlet.
• This assembly leaves the documented wheel hubs in use. It supplies brake components rather than new hubs.
• Rotor-hat stud-hole patterns are 5 x 4.75, 5 x 5.00 inches, separate from the retained hub wheel-pattern specification.
• Rotor mounting is through separate aluminum hats, offset 0.810 inch and finished in black e-coat.
• Piston sizing follows the published 1.75, 1.38, 1.38-inch specification. The included brake-pad compound is BP-10.
• Caliper selection is 6-piston AERO6. Body finish: red powder coat; attachment: radial; piston material: stainless.
• Rotor package uses SRP Drilled Rotor components. Each is 1.25 inch thick with 14.25-inch diameter and SRP drilled & slotted faces. Published material: Spec-37 Iron.

Fitment & Compatibility

Requires the Detroit Speed and Engineering 1973–1987 C10 drop spindle; original equipment spindles are not compatible. The application table separates Chevrolet Blazer, C10/C10 Pickup, C10 Suburban, K5 Blazer, R10 Pickup and R10 Suburban from GMC C15/C1500 Suburban, C1500 Pickup, Jimmy, C15 Suburban, C1500 Suburban, R1500 Pickup and R1500 Suburban. Match each year and spindle entry. The two hat drillings do not change the retained hub wheel pattern. The table below preserves the individual vehicle and brake-option entries; select the complete matching row before ordering.

With over 20 years of parts and application experience, PMB Performance can help compare this assembly with your existing brakes. Supply the hub, axle or spindle specification and wheel-clearance information before ordering.

Manufacturer documentation: Installation instructions.
